TGWxE1 G a te w a y S e rie s U s e r M a n u a l

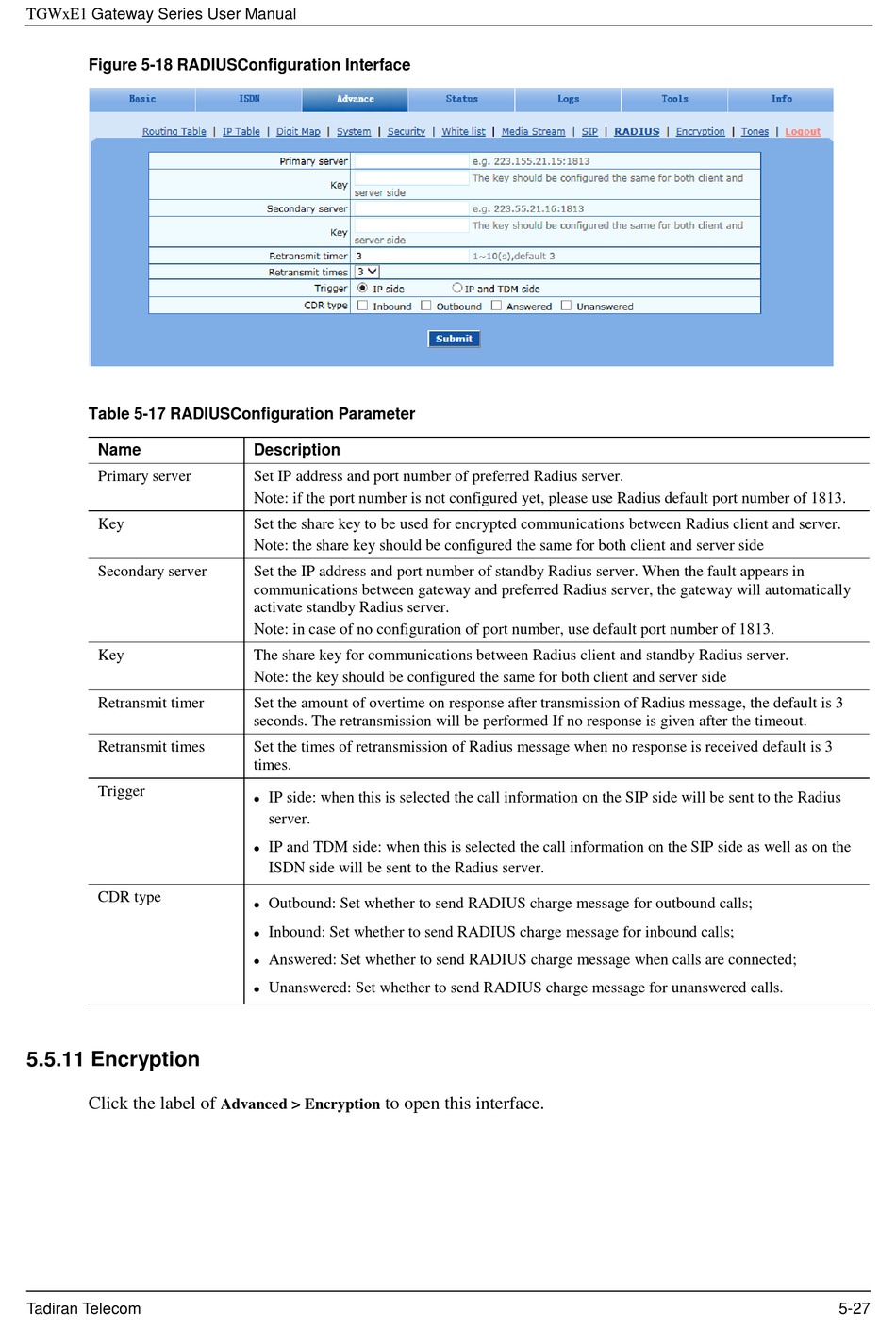

Figure 5-18 RADIUSConfiguration Interface
Table 5-17 RADIUSConfiguration Parameter
Name
Primary server
Key
Secondary server
Key
Retransmit timer
Retransmit times
Trigger
CDR type
5.5.11 Encryption
Click the label of
Ta d ira n Te le c o m
Description
Set IP address and port number of preferred Radius server.
Note: if the port number is not configured yet, please use Radius default port number of 1813.
Set the share key to be used for encrypted communications between Radius client and server.
Note: the share key should be configured the same for both client and server side
Set the IP address and port number of standby Radius server. When the fault appears in
communications between gateway and preferred Radius server, the gateway will automatically
activate standby Radius server.
Note: in case of no configuration of port number, use default port number of 1813.
The share key for communications between Radius client and standby Radius server.
Note: the key should be configured the same for both client and server side
Set the amount of overtime on response after transmission of Radius message, the default is 3
seconds. The retransmission will be performed If no response is given after the timeout.
Set the times of retransmission of Radius message when no response is received default is 3
times.
IP side: when this is selected the call information on the SIP side will be sent to the Radius

server.
IP and TDM side: when this is selected the call information on the SIP side as well as on the

ISDN side will be sent to the Radius server.
Outbound: Set whether to send RADIUS charge message for outbound calls;

Inbound: Set whether to send RADIUS charge message for inbound calls;

Answered: Set whether to send RADIUS charge message when calls are connected;

Unanswered: Set whether to send RADIUS charge message for unanswered calls.

to open this interface.
Advanced > Encryption
5 -2 7
