TGWxE1 G a te w a y S e rie s U s e r M a n u a l

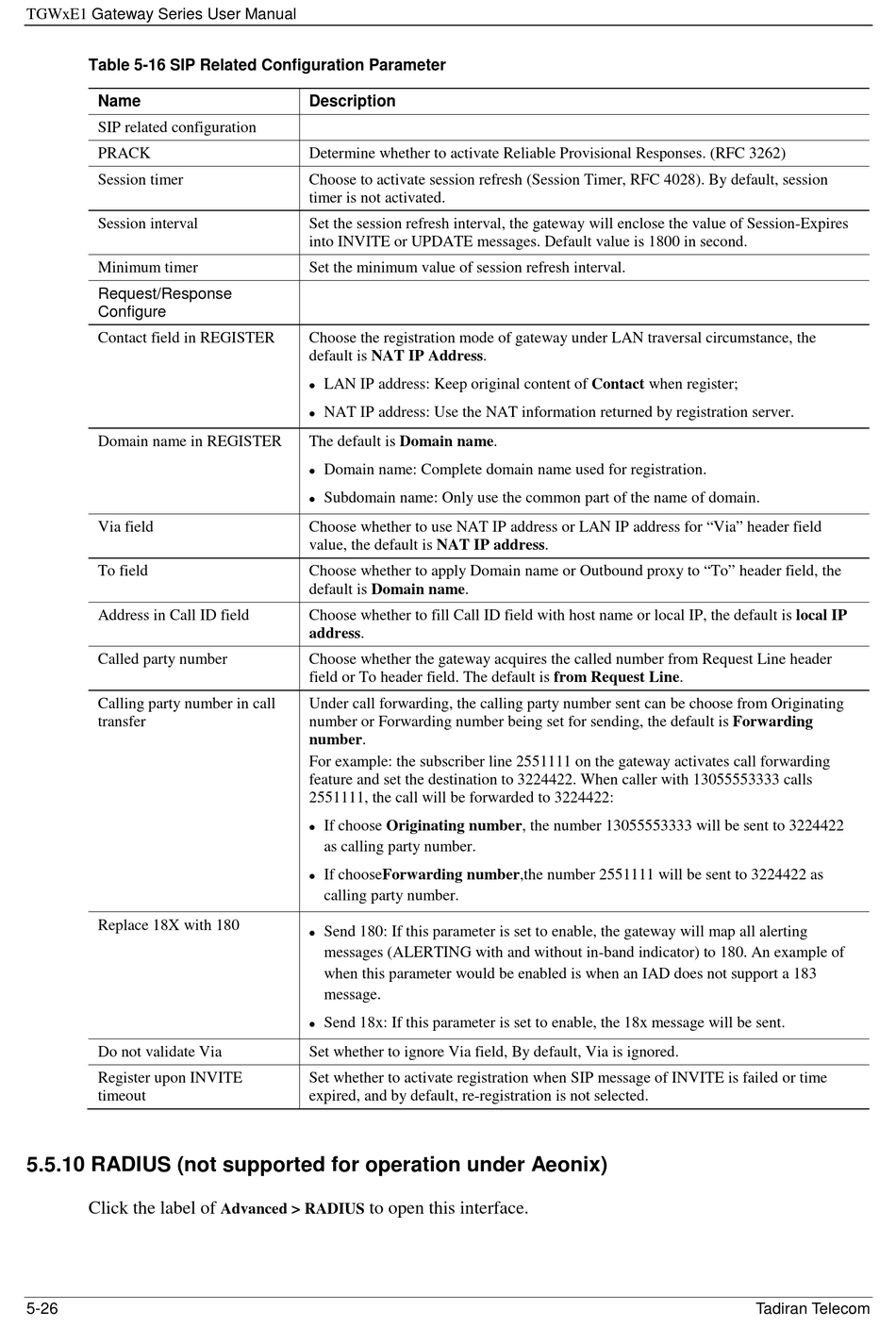

Table 5-16 SIP Related Configuration Parameter
Name
SIP related configuration
PRACK
Session timer
Session interval
Minimum timer
R e q u e s t/R e s p o n s e
C o n fig u re
Contact field in REGISTER
Domain name in REGISTER
Via field
To field
Address in Call ID field
Called party number
Calling party number in call
transfer
Replace 18X with 180
Do not validate Via
Register upon INVITE
timeout
5.5.10 RADIUS (not supported for operation under Aeonix)
Click the label of
5 -2 6
Description
Determine whether to activate Reliable Provisional Responses. (RFC 3262)
Choose to activate session refresh (Session Timer, RFC 4028). By default, session
timer is not activated.
Set the session refresh interval, the gateway will enclose the value of Session-Expires
into INVITE or UPDATE messages. Default value is 1800 in second.
Set the minimum value of session refresh interval.
Choose the registration mode of gateway under LAN traversal circumstance, the
default is NAT IP Address.
LAN IP address: Keep original content of Contact when register;

NAT IP address: Use the NAT information returned by registration server.

The default is Domain name.
Domain name: Complete domain name used for registration.

Subdomain name: Only use the common part of the name of domain.

Choose whether to use NAT IP address or LAN IP address for "Via" header field
value, the default is NAT IP address.
Choose whether to apply Domain name or Outbound proxy to "To" header field, the
default is Domain name.
Choose whether to fill Call ID field with host name or local IP, the default is local IP
address.
Choose whether the gateway acquires the called number from Request Line header
field or To header field. The default is from Request Line.
Under call forwarding, the calling party number sent can be choose from Originating
number or Forwarding number being set for sending, the default is Forwarding
number.
For example: the subscriber line 2551111 on the gateway activates call forwarding
feature and set the destination to 3224422. When caller with 13055553333 calls
2551111, the call will be forwarded to 3224422:
If choose Originating number, the number 13055553333 will be sent to 3224422

as calling party number.
If chooseForwarding number,the number 2551111 will be sent to 3224422 as

calling party number.
Send 180: If this parameter is set to enable, the gateway will map all alerting

messages (ALERTING with and without in-band indicator) to 180. An example of
when this parameter would be enabled is when an IAD does not support a 183
message.
Send 18x: If this parameter is set to enable, the 18x message will be sent.

Set whether to ignore Via field, By default, Via is ignored.
Set whether to activate registration when SIP message of INVITE is failed or time
expired, and by default, re-registration is not selected.
to open this interface.
Advanced > RADIUS
