TGWxE1 G a te w a y S e rie s U s e r M a n u a l

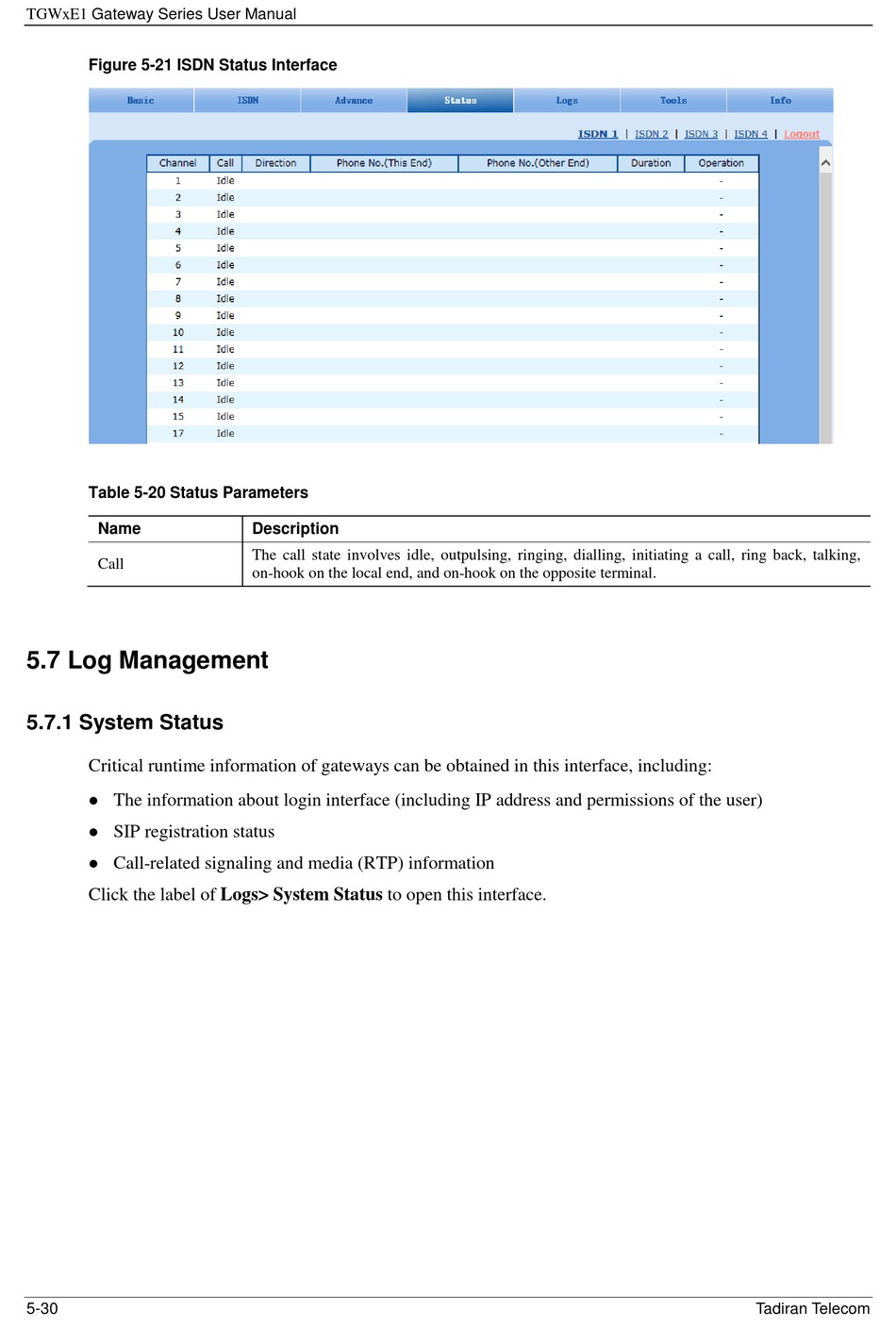

Figure 5-21 ISDN Status Interface
Table 5-20 Status Parameters
Name
Call
5.7 Log Management
5.7.1 System Status
Critical runtime information of gateways can be obtained in this interface, including:
 The information about login interface (including IP address and permissions of the user)
SIP registration status

Call-related signaling and media (RTP) information

Click the label of Logs> System Status to open this interface.
5 -3 0
Description
The call state involves idle, outpulsing, ringing, dialling, initiating a call, ring back, talking,
on-hook on the local end, and on-hook on the opposite terminal.
