TGWxE1 G a te w a y S e rie s U s e r M a n u a l

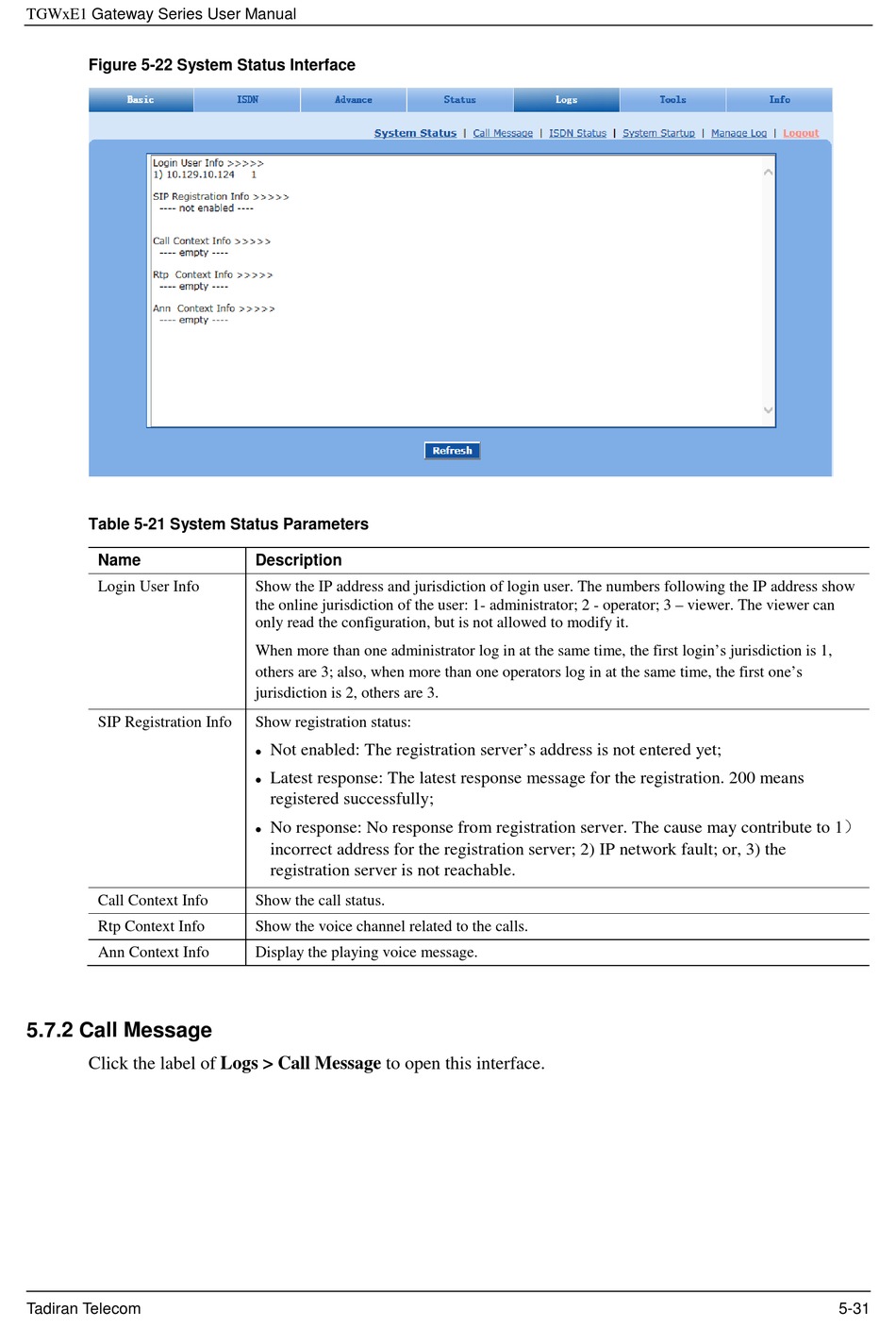

Figure 5-22 System Status Interface
Table 5-21 System Status Parameters
Name
Login User Info
SIP Registration Info
Call Context Info
Rtp Context Info
Ann Context Info
5.7.2 Call Message
Click the label of Logs > Call Message to open this interface.
Ta d ira n Te le c o m
Description
Show the IP address and jurisdiction of login user. The numbers following the IP address show
the online jurisdiction of the user: 1- administrator; 2 - operator; 3 – viewer. The viewer can
only read the configuration, but is not allowed to modify it.
When more than one administrator log in at the same time, the first login's jurisdiction is 1,
others are 3; also, when more than one operators log in at the same time, the first one's
jurisdiction is 2, others are 3.
Show registration status:
Not enabled: The registration server's address is not entered yet;
Latest response: The latest response message for the registration. 200 means
registered successfully;
No response: No response from registration server. The cause may contribute to 1)
incorrect address for the registration server; 2) IP network fault; or, 3) the
registration server is not reachable.
Show the call status.
Show the voice channel related to the calls.
Display the playing voice message.
5 -3 1
