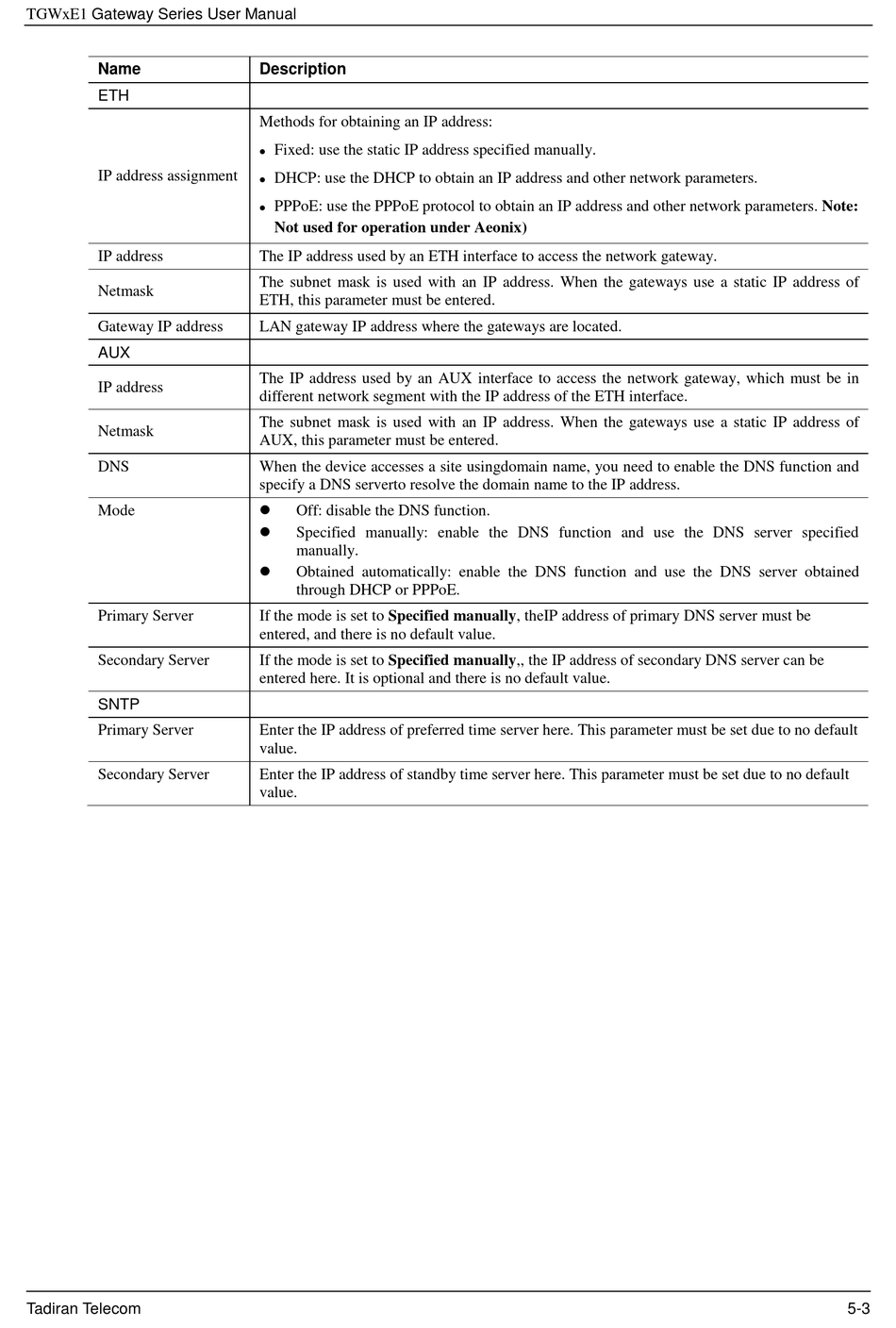

TGWxE1 G a te w a y S e rie s U s e r M a n u a l
Name
E T H
IP address assignment
IP address
Netmask
Gateway IP address
A U X
IP address
Netmask
DNS
Mode
Primary Server
Secondary Server
S N T P
Primary Server
Secondary Server
Ta d ira n Te le c o m
Description
Methods for obtaining an IP address:
Fixed: use the static IP address specified manually.

DHCP: use the DHCP to obtain an IP address and other network parameters.

PPPoE: use the PPPoE protocol to obtain an IP address and other network parameters. Note:

Not used for operation under Aeonix)
The IP address used by an ETH interface to access the network gateway.
The subnet mask is used with an IP address. When the gateways use a static IP address of
ETH, this parameter must be entered.
LAN gateway IP address where the gateways are located.
The IP address used by an AUX interface to access the network gateway, which must be in
different network segment with the IP address of the ETH interface.
The subnet mask is used with an IP address. When the gateways use a static IP address of
AUX, this parameter must be entered.
When the device accesses a site usingdomain name, you need to enable the DNS function and
specify a DNS serverto resolve the domain name to the IP address.

Off: disable the DNS function.

Specified manually: enable the DNS function and use the DNS server specified
manually.

Obtained automatically: enable the DNS function and use the DNS server obtained
through DHCP or PPPoE.
If the mode is set to Specified manually, theIP address of primary DNS server must be
entered, and there is no default value.
If the mode is set to Specified manually,, the IP address of secondary DNS server can be
entered here. It is optional and there is no default value.
Enter the IP address of preferred time server here. This parameter must be set due to no default
value.
Enter the IP address of standby time server here. This parameter must be set due to no default
value.
5 -3
