2.3 Install Device
The figures below show 3 installation methods of the device. You can use M4 screws to fix the
device to the required position.
X86 Open Platform

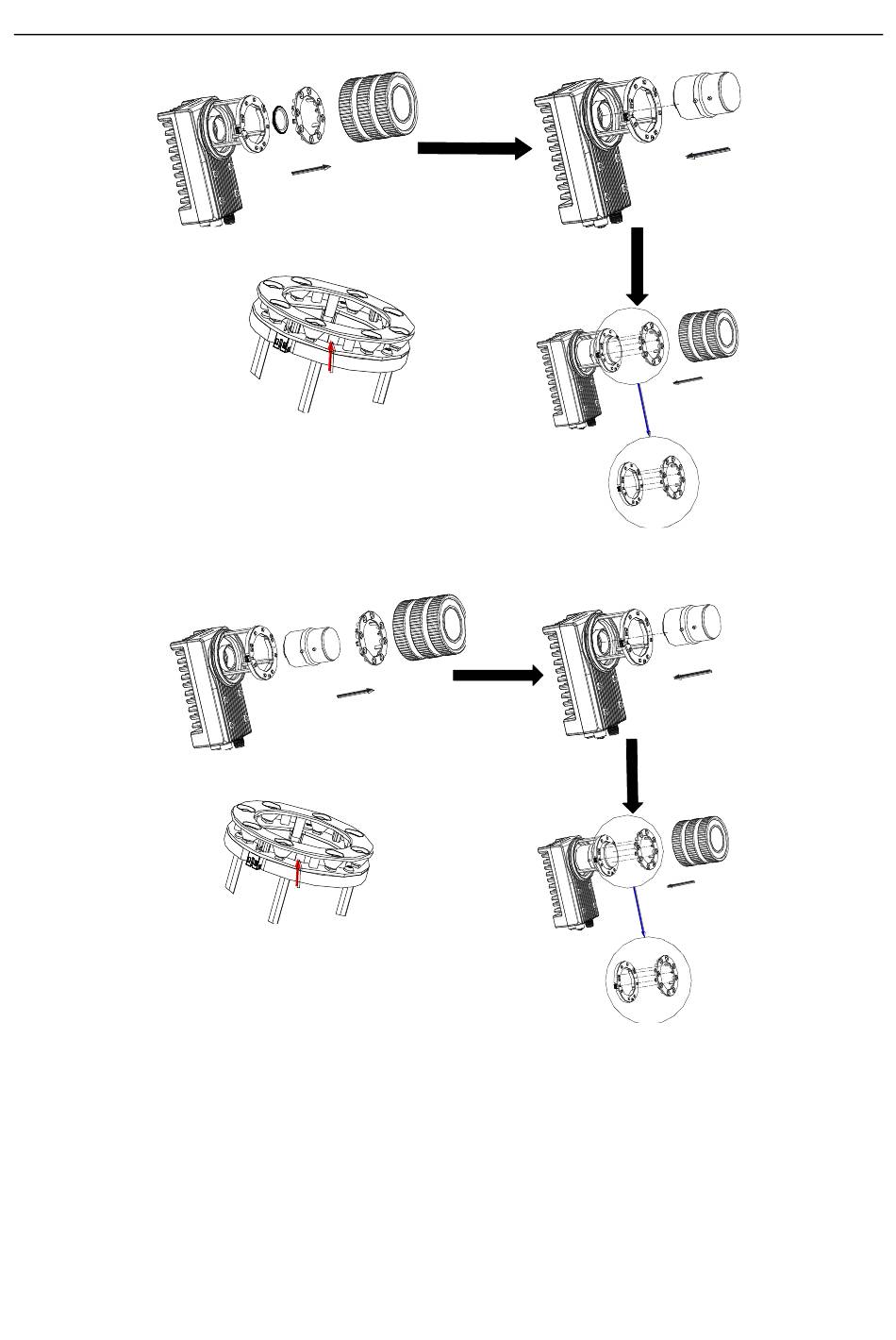

Instructions on disassembling
lamp cup
Press the clip in the arrow direction
to disassemble the lamp cup
Figure 2-1 Install Lens
Instructions on disassembling
lamp cup
Press the clip in the arrow direction
to disassemble the lamp cup
Figure 2-2 Change Lens
Quick Start Guide
·
9
