PRONAR T700 Operator's Manual

Agricultural trailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

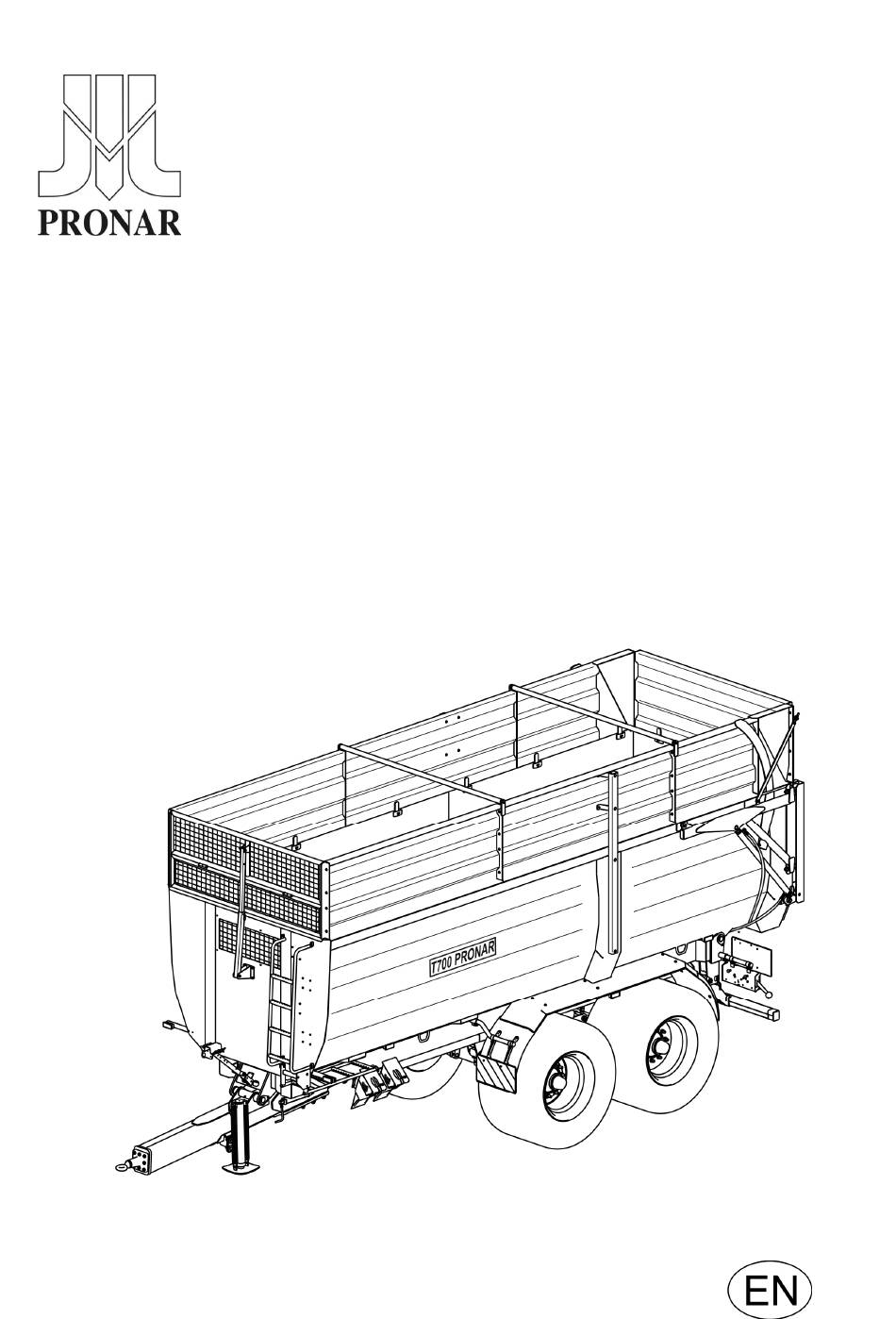

TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
ISSUE 2C-05-2012
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone:
fax:
OPERATOR'S MANUAL
AGRICULTURAL TRAILER
PRONAR T700
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO 118N-00000000-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRONAR T700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PRONAR PRONAR T700

Summary of Contents for PRONAR PRONAR T700

  • Page 1 PRONAR Sp. z o.o. 17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE phone: +48 085 681 63 29 +48 085 681 64 29 +48 085 681 63 81 +48 085 681 63 82 fax: +48 085 681 63 83 +48 085 682 71 10 www.pronar.pl...
  • Page 3 The machine is designed to meet obligatory standards, documents and legal regulations currently in force. The manual describes the basic safety rules and operation of agricultural trailer Pronar T700. If the information contained in the Operator's Manual needs clarification then the user should refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
  • Page 4 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL Information, descriptions of danger and precautions and also recommendations and prohibitions associated with user safety instructions are marked: and also preceded by the word "DANGER”. Failure to observe the instructions may endanger the machine operator's or other person's health or life. Particularly important information and instructions, the observance of which is essential, are distinguished in the text by the sign: and also preceded by the word "IMPORTANT".
  • Page 5 DIRECTIONS USED IN THIS OPERATOR'S MANUAL Left side – side to the left hand of the operator facing in the direction of machine's forward travel. Right side – side to the right hand of the operator facing in the direction of machine's forward travel.

  • Page 7: Table Of Contents

    CONTENTS 1 BASIC INFORMATION IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION 1.1.2 AXLE IDENTIFICATION 1.1.3 LIST OF FACTORY NUMBERS PROPER USE OPTIONAL EQUIPMENT WARRANTY TERMS 1.10 TRANSPORT 1.11 1.5.1 TRANSPORT ON VEHICLE 1.11 1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.13 ENVIRONMENTAL HAZARDS 1.14 WITHDRAWAL FROM USE 1.15 2 SAFETY ADVICE...
  • Page 8 3 DESIGN AND OPERATION TECHNICAL SPECIFICATION TRAILER CONSTRUCTION 3.2.1 CHASSIS 3.2.2 LOAD BOX 3.2.3 MAIN BRAKE 3.2.4 HYDRAULIC TIPPER SYSTEM 3.11 3.2.5 SUPPORT HYDRAULIC SYSTEM 3.14 3.2.6 TURNING INTERLOCK HYDRAULIC SYSTEM 3.15 3.2.7 TAILGATE HYDRAULIC SYSTEM 3.16 3.2.8 PARKING BRAKE 3.18 3.2.9 LIGHTING SYSTEM 3.19...
  • Page 9 5.2.2 INITIAL INSPECTION OF AXLE BRAKES 5.2.3 CHECK BRAKE SHOE LININGS FOR WEAR 5.2.4 CHECK WHEEL AXLE BEARINGS FOR LOOSENESS 5.2.5 ADJUSTMENT OF WHEEL AXLE BEARINGS LOOSENESS 5.2.6 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF WHEEL NUT TIGHTENING. 5.2.7 CHECK AIR PRESSURE, EVALUATE TECHNICAL CONDITION OF WHEELS AND TYRES, 5.11 5.2.8 ADJUSTMENT OF MECHANICAL BRAKES...
  • Page 10 TRAILER LUBRICATION 5.29 CONSUMABLES 5.33 5.7.1 HYDRAULIC OIL 5.33 5.7.2 LUBRICANTS 5.34 CLEANING TRAILER 5.35 STORAGE 5.36 5.10 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.37 5.11 ADJUSTMENT OF DRAWBAR POSITION 5.38 5.12 CONFIGURING THE BRAKE SYSTEM 5.39 5.13 TROUBLESHOOTING 5.41...

  • Page 11: Basic Information

    SECTION BASIC INFORMATION...

  • Page 12: Identification

    Pronar T700 SECTION 1 1.1 IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION FIG. 1.1 Location of the data plate and serial number (1) data plate, (2) serial number The trailer is marked with the data plate (1), and the factory number (2) located on a gold painted rectangle.

  • Page 13: Axle Identification

    SECTION 1 Pronar T700 MANUAL. The meanings of the individual fields found on the data plate are presented in the table below: TAB. 1.1 Markings on data plate ITEM MARKING General description and purpose Symbol /Type Year of manufacture Seventeen digit vehicle identification number (VIN)

  • Page 14: List Of Factory Numbers

    Pronar T700 SECTION 1 FIG. 1.2 Location of the axle data plate (1) wheel axle, (2) data plate 1.1.3 LIST OF FACTORY NUMBERS In the event of ordering a replacement part or in the case of the appearance of problems it is often essential to give the factory numbers of parts or the VIN number of the trailer, therefore it is recommended that these numbers are inscribed in the spaces below.

  • Page 15: Proper Use

    SECTION 1 Pronar T700 1.2 PROPER USE The trailer is designed for transport of harvested crops and agricultural products as well as loose, bulk and long load materials at the farm and on public roads. It is acceptable to transport construction materials, mineral fertilisers and other loads, if fulfilling conditions indicated in section 4.
  • Page 16 Pronar T700 SECTION 1 must be observed. The trailer speed must not, however, be greater than the maximum design speed. Using it as intended also involves all actions connected with the safe and proper operation and maintenance of the machine. In connection with this the user is obliged to: •...
  • Page 17 SECTION 1 Pronar T700 TAB. 1.2 Agricultural tractor's requirements CONTENTS UNIT REQUIREMENTS Brake system - sockets Pneumatic system 1 line according to A DIN 74 294 Pneumatic system 2 line according to ISO 1728 Hydraulic system according to ISO 7421-1...

  • Page 18: Optional Equipment

    Pronar T700 SECTION 1 TAB. 1.3 Requirements for second trailer CONTENTS UNIT REQUIREMENTS Maximum gross weight 16 000 Brake system - connectors Pneumatic system 1 line according to A DIN 74 294 Pneumatic system 2 line connector compliant with ISO 1728...
  • Page 19 SECTION 1 Pronar T700 TAB. 1.4 Trailer optional equipment EQUIPMENT • Operator's Manual • Warranty Book • Connection lead for the electrical system • Wheel chocks • Hydraulic straight support • Double line pneumatic system without rear connectors • Double line pneumatic system with rear connectors •...

  • Page 20: Warranty Terms

    Warning reflective triangle 1.4 WARRANTY TERMS PRONAR Sp. z o.o., Narew guarantees the reliable operation of the machine when it is used according to its intended purpose as described in the OPERATOR'S MANUAL. The repair period is specified in the WARRANTY BOOK.

  • Page 21: Transport

    SECTION 1 Pronar T700 • by inappropriate use, adjustment or maintenance, use of the trailer for purposes other than those for which it is intended, • use of damaged machine, • repairs carried out by unauthorised persons, improperly carried out repairs, •...
  • Page 22 Pronar T700 SECTION 1 connected with the tractor according to the requirements in this Operators Manual. The trailer brake system must be started in checked before driving off or onto ramp. The trailer should be attached firmly to the platform of the vehicle using straps or chains fitted with a tightening mechanism.

  • Page 23: Independent Transport By The User

    SECTION 1 Pronar T700 FIG. 1.3 Positioning of transport lugs (1) transport lug, (2) lower longitudinal frame, (3) load box DANGER Incorrect application of securing measures may cause an accident. 1.5.2 INDEPENDENT TRANSPORT BY THE USER In the event of independent transport by the user after purchase of the trailer, the user must read the trailer Operator's Manual and adhere to the recommendations contained therein.

  • Page 24: Environmental Hazards

    Pronar T700 SECTION 1 1.6 ENVIRONMENTAL HAZARDS A hydraulic oil leak constitutes a direct threat to the natural environment owing to its limited biodegradability. The negligible solubility of hydraulic oil in water does not cause extreme toxicity of organisms living in the aquatic environment. The formation of a film of oil on the water may be the direct cause of physical action on organism, perhaps causing change of oxygen values in the water because of lack of direct contact of air with the water.

  • Page 25: Withdrawal From Use

    SECTION 1 Pronar T700 1.7 WITHDRAWAL FROM USE In the event of decision by the user to withdraw the trailer from use, comply with the regulations in force in the given country concerning withdrawal from use and recycling of machines withdrawn from use. Before commencing dismantling, totally remove the oil from the hydraulic system and reduce air pressure completely in the pneumatic brake system (e.g.
  • Page 26 Pronar T700 SECTION 1 1.16...

  • Page 27: Safety Advice

    SECTION SAFETY ADVICE...

  • Page 28: Basic Safety Rules

    Pronar T700 SECTION 2 2.1 BASIC SAFETY RULES 2.1.1 USE OF TRAILER • Before using the trailer, the user must carefully read this OPERATOR'S MANUAL and the WARRANTY BOOK. When operating the machine, the operator must comply with the recommendations.

  • Page 29: Hitching And Disconnecting From Tractor

    SECTION 2 Pronar T700 them against falling. The above procedure should be performed by at least two persons. • In the final phase of folding the tarpaulin cover, at all times hold with one hand the top of the front frame or other permanent structural element. Non-compliance with this rule can put the user at risk of falling.

  • Page 30: Hydraulic And Pneumatic System

    Pronar T700 SECTION 2 • Before hitching trailer to tractor check that both machines are in good technical condition. • After completing the coupling of the trailer check the safety of the hitch. • Be especially careful when hitching the machine.

  • Page 31: Loading And Unloading

    SECTION 2 Pronar T700 • After changing the hydraulic oil, the used oil should be properly disposed of. Used oil or oil, which has lost its properties, should be stored in original containers or replacement containers resistant to action of hydrocarbons. Replacement containers must be clearly marked and appropriately stored.

  • Page 32: Transporting The Machine

    Pronar T700 SECTION 2 • Incorrect load distribution and overloading the machine may cause the trailer to tip over or cause damage to its components. • Do NOT go or place hand between open tailgate and load box. • If the load does not pour from the raised load box immediately cease unloading.
  • Page 33 SECTION 2 Pronar T700 • Chocks (1), should be placed only under one wheel (one in front of the wheel, the second behind the wheel - figure (2.1)). • Do NOT move off or drive when load box is raised.
  • Page 34 Pronar T700 SECTION 2 • While driving on public roads the trailer must be fitted with a certified or authorised reflective warning triangle. • Periodically drain water from the air tank in pneumatic system. During frosts, freezing water may cause damage to pneumatic system components.

  • Page 35: Tyres

    SECTION 2 Pronar T700 should be attached using the specifically prepared holder (2), riveted to the rear wall of the load box. • Do NOT exceed the trailer's maximum carrying capacity. Exceeding the carrying capacity may lead to damage to the machine, loss of stability while driving, scattering of the load and danger while driving.

  • Page 36: Maintenance

    Pronar T700 SECTION 2 • Protect tyre valves using suitable caps to avoid soiling. 2.1.8 MAINTENANCE • During the warranty period, any repairs may only be carried out by Warranty Service authorised by the manufacturer. After the expiry of the warranty period it is recommended that possible repairs to the trailer be performed by specialised workshops.
  • Page 37 SECTION 2 Pronar T700 • Repair, maintenance and cleaning work should be carried out with the tractor's engine switched off and the ignition key removed. Tractor and trailer should be secured using parking brake and in addition chocks should be placed beneath trailer wheel.

  • Page 38: Description Of Minimal Risk

    2.2 DESCRIPTION OF MINIMAL RISK Pronar Sp. z o. o. in Narew has made every effort to eliminate the risk of accidents. There is, however, a certain minimal risk, which could lead to an accident, and this is connected mainly with the actions described below: •...

  • Page 39: Information And Warning Decals

    In the event of their destruction, they must be replaced with new ones. Safety decals are available from your PRONAR dealer or directly from PRONAR customer service. New assemblies, changed during repair, must be labelled once again with the appropriate safety signs.
  • Page 40 Pronar T700 SECTION 2 TAB. 2.1 Information and warning decals ITEM DECAL MEANING OF SYMBOL Trailer version. Before beginning servicing or repairs, switch off tractor's engine and remove key from ignition Ensure that unauthorised persons do not have access to the tractor cab.
  • Page 41 SECTION 2 Pronar T700 ITEM DECAL MEANING OF SYMBOL Line functions. Tipping the load box Plug cap - blue Raising / lowering the tailgate Plug cap - black Hydraulic support Plug cap - red Rear axle lock Plug cap - green Caution! Danger of electric shock.
  • Page 42 Pronar T700 SECTION 2 ITEM DECAL MEANING OF SYMBOL Transport decal Anchorages for the transport Air pressure in the tyres. Permissible vehicle speed Drawbar load Positions of control valve controlling work of hydraulic tipping system (1 or 2 trailers). Line supplying hydraulic brake system.
  • Page 43 SECTION 2 Pronar T700 FIG. 2.3 Locations of information and warning decals 2.17...
  • Page 44 Pronar T700 SECTION 2 2.18...

  • Page 45: Design And Operation

    SECTION DESIGN AND OPERATION...
  • Page 46 Pronar T700 SECTION 3 3.1 TECHNICAL SPECIFICATION TAB. 3.1 Basic technical specification CONTENTS UNIT T700 Trailer dimensions Total length 8 500 Total width 2 550 Total height 3 900 Internal load box dimensions Length 6 694 Width (front) 2 198...

  • Page 47: Trailer Construction

    SECTION 3 Pronar T700 3.2 TRAILER CONSTRUCTION 3.2.1 CHASSIS Two versions of trailer chassis are available: tandem suspension and ,boogie suspension - figure (3.1). Lower frame (1) or (18) is of welded steel sections construction. The main support elements of the frame are two longitudinal members connected with crossbars. In the middle section there are sockets (5) used for mounting of the tipping ram cylinder.
  • Page 48 Pronar T700 SECTION 3 FIG. 3.1 Trailer chassis - tandem suspension (1) lower frame, (2) drawbar, (3) simple support, (4) wheel chocks, (5) tipping cylinder socket, (6) load box support, (7) lights support beam, (8) wheel axle, (9) spring (10) tandem...

  • Page 49: Load Box

    SECTION 3 Pronar T700 3.2.2 LOAD BOX FIG. 3.2 Load box (1) load box, (2) wall extensions 830 mm, (3) tailgate, (4) front tiltable wall extension, (5) front wall mesh, (6) wall extension ladder Trailer load box (1) has a monocoque construction. It is made of steel sheet and profiles.
  • Page 50 Pronar T700 SECTION 3 The load box mounted on the lower frame - Figure (3.1). The axis of rotation of the tilted load box id formed by the tipping pins located in the back of the lower frame. The load box is equipped with a complete set of 830 mm (2) wall extensions.

  • Page 51: Main Brake

    SECTION 3 Pronar T700 3.2.3 MAIN BRAKE The trailer is equipped with one of three types of working brake: • Double conduit pneumatic system that can also be used as a single conduit system, figure (3.4) (see section 5.1.2 for details on how to configure the system), •...
  • Page 52 Pronar T700 SECTION 3 FIG. 3.4 Double line pneumatic brake construction and system diagram (1) air tank, (2) control valve, (3) manual brake force regulator, (4) pneumatic cylinder, (5) line connector (red), (6) line connector (yellow), (7) air filter, (8) air tank control connector, (9)pneumatic cylinder control connector, (10) drain valve, (11) socket (red) - option, (12) socket (yellow) - option,(13) relay valve.
  • Page 53 SECTION 3 Pronar T700 FIG. 3.5 Design and system diagram of double line pneumatic brake with automatic regulator (1) air tank, (2) control valve, (3) automatic brake force regulator, (4) pneumatic cylinder, (5) line connector (red), (6) line connector (yellow), (7) air filter, (8) air tank control connector, (9) pneumatic cylinder control connector, (10) drain valve, (11) socket (red) - option, (12) socket (yellow) - option, (13) relay valve.
  • Page 54 Pronar T700 SECTION 3 FIG. 3.6 Hydraulic brake construction and system diagram (1) hydraulic cylinder, (2) hydraulic quick coupler, (3) hydraulic socket, (4) information decal Three-step brake force regulator (2)- figure (3.7), adjusts braking force depending on setting. Switching to a suitable working mode is done manually by machine operator using the lever (4) prior to moving off.

  • Page 55: Hydraulic Tipper System

    SECTION 3 Pronar T700 FIG. 3.7 Control valve and brake force regulator (1) control valve, (2) brake force regulator, (3) trailer parking brake release button, (4) work selection regulator lever, (A) position "NO LOAD”, (B) position "HALF LOAD”, (C) position "FULL LOAD”...
  • Page 56 Pronar T700 SECTION 3 • circuit (B) - to supply of the second trailer's hydraulic ram cylinder (if two trailers are hitched to the tractor). FIG. 3.8 Hydraulic tandem tipping system construction and diagram (1) telescopic cylinder, (2) three-way valve, (3) cut-off valve, (4) quick coupler, (5) socket, (6) control cable, (7) guide roller, (8) information decal Three-way valve (2) –...
  • Page 57 SECTION 3 Pronar T700 • 1 - trailer's tipping circuit opened - circuit (A), • 2 - second trailer's tipping circuit opened – circuit (B). FIG. 3.9 Hydraulic boogie tipping system construction and diagram (1) telescopic cylinder, (2) three-way valve, (3) cut-off valve, (4) quick coupler, (5) socket,...

  • Page 58: Support Hydraulic System

    Pronar T700 SECTION 3 Cut-off valve (9) controls the suspension lock cylinders (8) in the Bogie hydraulic tipping system. When the load box is lowered, the valve is open (II). When tipping the load box of the first trailer, oil flows through the valve (9) to the cylinders (8) locking the rear axle deflection.

  • Page 59: Turning Interlock Hydraulic System

    SECTION 3 Pronar T700 FIG. 3.10 Straight support hydraulic system construction and diagram (1) hydraulic support, (2) quick coupler, (3) valve, (4), (5) information decals The hydraulic system of the support is filled with L-HL32 Lotos hydraulic oil. 3.2.6 TURNING INTERLOCK HYDRAULIC SYSTEM Turning interlock hydraulic system locks the rear steering axle (option) when reversing the trailer.

  • Page 60: Tailgate Hydraulic System

    Pronar T700 SECTION 3 FIG. 3.11 Construction and design of steering lock hydraulic system (1) hydraulic cylinder, (2) hydraulic supply line 3.2.7 TAILGATE HYDRAULIC SYSTEM Tailgate hydraulic system is used to raise and lower the trailer tailgate and control the operation of locking hooks (4).
  • Page 61 SECTION 3 Pronar T700 FIG. 3.12 Tailgate hydraulic system construction and diagram (1) hydraulic cylinder, (2) supply line, (3) return line, (4) locking hook, (5) tailgate wing 3.17...

  • Page 62: Parking Brake

    Pronar T700 SECTION 3 3.2.8 PARKING BRAKE FIG. 3.13 Parking brake design (1) expander arm, (2) brake crank mechanism, (3) steel cable I, (4) steel cable II, (5) lever, (6) guide roller The parking brake is for immobilising trailer while standing motionless. System construction is shown in Figure (3.13).

  • Page 63: Lighting System

    SECTION 3 Pronar T700 3.2.9 LIGHTING SYSTEM The trailer electrical system is designed for supply from direct current source of 12 V. Connection of the trailer electrical system with the tractor should be made through an appropriate connection lead. FIG. 3.14...
  • Page 64 Pronar T700 SECTION 3 FIG. 3.15 Electrical system schematic diagram, the versions without the side lamps Marking according to table (3.2), (3.3) and (3.4) 3.20...
  • Page 65 SECTION 3 Pronar T700 FIG. 3.16 Schematic diagram of the front wiring harness Marking according to table (3.2), (3.3) and (3.4) TAB. 3.2 List of electrical component markings SYMBOL NAME Rear right lamp assembly Rear left lamp assembly Front seven pin socket...
  • Page 66 Pronar T700 SECTION 3 SYMBOL NAME Rear right clearance light Rear left clearance light Left clearance lamp Right clearance lamp TAB. 3.3 Marking of connections of GT and X7P sockets MARKING FUNCTION Weight Power supply +12V (not used) Left indicator...

  • Page 67: Correct Use

    SECTION CORRECT USE...

  • Page 68: Preparing For Work Before First Use

    Pronar T700 SECTION 4 4.1 PREPARING FOR WORK BEFORE FIRST USE 4.1.1 CHECKING THE TRAILER AFTER DELIVERY The manufacturer guarantees that the trailer is fully operational and has been checked according to quality control procedures and is ready for normal use. This does not release the user from an obligation to check the machine's condition after delivery and before first use.

  • Page 69: Prepare A Trailer For First Hitching To Tractor

    SECTION 4 Pronar T700 4.1.2 PREPARE A TRAILER FOR FIRST HITCHING TO TRACTOR Preparation Check all the trailer's lubrication points, lubricate the machine as needed according to recommendations provided in section 5.6. Check if the nuts and bolts fixing the wheels are properly tightened.
  • Page 70 Pronar T700 SECTION 4 Perform test drive. Service operation: hitching/unhitching from tractor, adjustment of draw bar position, tipping of load box etc. are described in detail in further parts of the Operator's Manual in sections 4 and 5. If during test run worrying symptoms occur such as: •...

  • Page 71: Hitching And Disconnecting From Tractor

    SECTION 4 Pronar T700 4.2 HITCHING AND DISCONNECTING FROM TRACTOR Ensure that pneumatic, hydraulic and electric connections and the hitch of agricultural tractor are according to the Manufacturer's requirements, if not the trailer should not be hitched to the tractor.
  • Page 72 Pronar T700 SECTION 4 Connect pneumatic line marked yellow with yellow socket in tractor. Connect pneumatic line marked red with red socket in tractor. Connect pneumatic system line (applies to single line system): Connect pneumatic line marked black with black socket in tractor.
  • Page 73 SECTION 4 Pronar T700 IMPORTANT! Trailer may only be hitched to a tractor, which has the appropriate hitch, connection sockets for braking, hydraulic and electrical systems, and hydraulic oil in both machines is the same type and may be mixed.

  • Page 74: Coupling And Uncoupling Second Trailer

    Pronar T700 SECTION 4 Disconnect electric lead. Disconnect pneumatic system lines (applies to double line systems): Disconnect pneumatic line marked red. Disconnect pneumatic line marked yellow. Disconnect pneumatic system lines (applies to single line systems): Disconnect pneumatic line marked black.
  • Page 75 SECTION 4 Pronar T700 Coupling second trailer The tractor with the coupled first trailer is positioned directly in front of the drawbar of the second trailer. Immobilise second trailer with parking brake. Remove linchpin securing pin and take out hitch pin (3) in the first trailer - figure (4.1).

  • Page 76: Loading And Securing Load

    Pronar T700 SECTION 4 FIG. 4.1 Coupling second trailer (1) hitch body, (2) the second trailer drawbar, (3) hitch pin, (4) chain with locking cotter pin IMPORTANT! Do NOT hitch a second trailer constructed on any chassis except dual axle.
  • Page 77 SECTION 4 Pronar T700 tractor. Loading should only take place, when trailer is placed on flat level surface and hitched to tractor. If the trailer is equipped with tarpaulin cover, it should be rolled. IMPORTANT! When a tailgate is tightly closed, that securing hooks must fully engage the rear gate securing pin.
  • Page 78 Pronar T700 SECTION 4 VOLUME WEIGHT TYPE OF MATERIAL kg/m Organic fertilisers: old manure 700 - 800 mature manure 800 - 900 fresh manure 700 - 750 compost 950 – 1 100 dry peat 500 - 600 Mineral fertilisers: ammonium sulphate...
  • Page 79 SECTION 4 Pronar T700 VOLUME WEIGHT TYPE OF MATERIAL kg/m wilted cut hay 60 - 70 dry baled hay 120 - 150 wilted baled hay 200 - 290 stored dry hay 50 - 90 stored cut hay 90 - 150...
  • Page 80 Pronar T700 SECTION 4 VOLUME WEIGHT TYPE OF MATERIAL kg/m mineral mixtures 1 100 – 1 300 ground oats 380 - 410 830 - 1 000 wet sugar beet pulp pressed sugar beet pulp 750 - 800 dry sugar beet pulp...
  • Page 81 SECTION 4 Pronar T700 VOLUME WEIGHT TYPE OF MATERIAL kg/m garden soil 250 - 350 Source: "Technology of machine work in agriculture”, PWN, Warszawa 1985 Loading should be carried out by a person experienced in this type of work and having appropriate authorisation for operating equipment (if required).
  • Page 82 Pronar T700 SECTION 4 amount of water, which may increase the bulk of the load during travel. In extreme cases the gross weight of the trailer may exceed the permissible vehicle gross weight. Some bulk loads (e.g. building materials, such as gravel or slag) may cause more rapid damage to paintwork.
  • Page 83 SECTION 4 Pronar T700 fittings: bail grabs, forks etc. The load may be loaded even higher than the load box extensions but taking care about trailer stability and proper securing and protection of load. Remember that higher loading has a negative effect on trailer stability.

  • Page 84: Transporting Loads

    Pronar T700 SECTION 4 4.5 TRANSPORTING LOADS When driving on roads, respect the road traffic regulations, exercise caution and prudence. Listed below are the key guidelines for driving the tractor and trailer combination. • Before moving off make sure that there are no bystanders, especially children, near the trailer or the tractor.

  • Page 85: Unloading

    SECTION 4 Pronar T700 • When driving, comply with all road traffic regulations, indicate an intention to turn using indicator lamps, keep all road lights and indicator lights clean at all times and ensure they are in good condition. Any damaged or lost lamps or indicator lights must be immediately repaired or replaced.
  • Page 86 Pronar T700 SECTION 4 tractor and trailer must be placed to drive forwards on flat and hard ground, immobilise tractor with parking brake, open the trailer tailgate by means of hydraulic cylinders by operating a lever on the tractor hydraulic selective control valve,...
  • Page 87 SECTION 4 Pronar T700 unload therefore proceed cautiously and patiently. Careless operation of trailer may pose a danger to operators and bystanders can also cause damage to the machine. FIG. 4.2 Chute (1) chute slide gate, (2) chute, (3) lever, (4) locking bolt DANGER Do NOT jerk the trailer forwards if load is bulky or reluctant to pour and does not unload.

  • Page 88: Proper Use And Maintenance Of Tyres

    Pronar T700 SECTION 4 the slide as required and lock again using the bolt. During unloading through chute, load box must be raised slowly and smoothly. Raising the load box quickly will exert large pressure on the rear part of the load box due to displacement of the carried material and could compromise trailer's stability.

  • Page 89: Maintenance

    SECTION MAINTENANCE...

  • Page 90: Preliminary Information

    Pronar T700 SECTION 5 5.1 PRELIMINARY INFORMATION When using the trailer, regular inspections of its technical condition are essential and the performance of maintenance procedures, which keep the machine in good technical condition. In connection with this the user of the trailer is obliged to perform all the maintenance and adjustment procedures defined by the Manufacturer.

  • Page 91: Initial Inspection Of Axle Brakes

    SECTION 5 Pronar T700 may be performed by specialist workshops. DANGER Do NOT use the trailer when brake system is unreliable. 5.2.2 INITIAL INSPECTION OF AXLE BRAKES After purchasing trailer, the user is responsible for general checking of brake system of trailer axle.
  • Page 92 Pronar T700 SECTION 5 ATTENTION! Minimum thickness of trailer brake linings is 5 mm. Check brake shoe linings for wear through the inspection opening (2) – see Figure (5.1). Check brake shoe linings for wear: • every 3 months, • if brakes overheat, •...

  • Page 93: Check Wheel Axle Bearings For Looseness

    SECTION 5 Pronar T700 5.2.4 CHECK WHEEL AXLE BEARINGS FOR LOOSENESS FIG. 5.2 Lifting jack support point (1) wheel axle Preparation procedures Hitch trailer to tractor, braking tractor with parking brake. Park tractor and trailer on hard level ground. Tractor must be placed to drive forward.
  • Page 94 Pronar T700 SECTION 5 Turn the wheel so that it rotates very quickly, check that the bearing does not make any unusual sounds. Turning the wheel try to detect looseness. You may use a lever placed under the wheel supporting the other end on the floor.

  • Page 95: Adjustment Of Wheel Axle Bearings Looseness

    SECTION 5 Pronar T700 DANGER Before commencing work the user must read the instructions for lifting and adhere to the manufacturer's instructions. The lifting jack must be stably supported by the ground and so must the axle. Ensure that trailer shall not move during inspection of bearing looseness of axles.

  • Page 96: Mounting And Dismounting Wheel, Inspection Of

    Pronar T700 SECTION 5 FIG. 5.3 Adjustment of road wheel axle bearings (1) hub cover, (2) castellated nut, (3) securing split cotter pin The wheel should turn smoothly without stiffness or detectable resistance not originating from abrasion of brake shoes in brake drum. Adjustment of bearing looseness may only be conducted, when the trailer is hitched to a tractor, and the load box is empty.
  • Page 97 SECTION 5 Pronar T700 Loosen wheel nuts according to sequence given in figure (5.4). Place a lift and raise the trailer to a sufficient height so that the wheel to be replaced does not touch the ground. Dismount wheel. Mount wheel Clean axle pins and nuts of dirt contamination.
  • Page 98 Pronar T700 SECTION 5 FIG. 5.4 Sequence of tightening nuts, axles with 10 M22x1.5 pins (1) - (10) sequence of nut tightening, (L) spanner length, (F) user weight IMPORTANT! Axle nuts may not be tightened with impact wrench, because of danger of exceeding permissible tightening torque, the consequence of which may be breaking the thread connection or breaking off the hub pins.

  • Page 99: Check Air Pressure, Evaluate Technical Condition

    SECTION 5 Pronar T700 Checking wheel axle tightening: • after first use, • after first travel with load, • after passing the first 1 000 km, • every six months use or every 25 000 km. In the event of intensive work check the nut tightening at least every 10 000 km. The above actions should be repeated individually if a wheel has been removed from the wheel axle.

  • Page 100: Adjustment Of Mechanical Brakes

    Pronar T700 SECTION 5 Technical condition and appropriate maintenance significantly extends the life of these components and ensures appropriate level of safety to trailer users. Checking tyre pressure and steel rims: • every 1 month of use, • if needed.
  • Page 101 SECTION 5 Pronar T700 in parallel with regard to each other at full braking. If this is not so, adjust the position of the lever, which has the longer stroke. FIG. 5.5 Adjustment of axle mechanical brakes (1) expander arm, (2) expander shaft, (3) adjustment bolt, (4) cylinder, (5) cylinder piston,...
  • Page 102 Pronar T700 SECTION 5 TAB. 5.2 Position of fork pin in expander arm DOUBLE LINE DOUBLE LINE HYDRAULIC PNEUMATIC PNEUMATIC SYSTEM BRAKE SYSTEM SYSTEM WITH ALB. TYRES Pin position [mm] Pin position [mm] Pin position [mm] Front Front Rear Rear axle...

  • Page 103: Change Of Parking Brake Cable And Adjustment Of

    SECTION 5 Pronar T700 5.2.9 CHANGE OF PARKING BRAKE CABLE AND ADJUSTMENT OF CABLE TENSION FIG. 5.6 Adjustment of parking brake cable tension (1) brake crank mechanism, (2) brake cable I, (3) brake cable II (4) brake lever, (5) U-shaped...
  • Page 104 Pronar T700 SECTION 5 Remove the pins of the lever (4) and crank mechanism (1), remove the shackle (6). Dismantle handbrake cables (2) and (3). Clean parking brake components, lubricate parking brake crank mechanism and pins of cable guide rollers.

  • Page 105: Pneumatic System Maintenance

    SECTION 5 Pronar T700 Tighten cable and tighten clamps. Length of parking brake cable (2) should be so selected that at total release of working and parking brake the cables would be loose and hanging by 1 - 2 cm compared to fully tensioned cables.

  • Page 106: Pneumatic System

    Pronar T700 SECTION 5 • cleaning drain valve, • cleaning and maintaining pneumatic line connections, • replacement of the pneumatic line. DANGER Do NOT use the trailer when brake system is unreliable. 5.3.2 INSPECTING AND CHECKING AIR TIGHTNESS OF PNEUMATIC SYSTEM Checking hydraulic system tightness Hitch trailer to tractor.
  • Page 107 SECTION 5 Pronar T700 Check system tightness • after passing the first 1,000 km, • each time after making repairs or changing system components, • annually. Visual assessment of system During tightness inspection attention should additionally be given to technical condition and degree of cleanness of the system components.

  • Page 108: Cleaning The Air Filters

    Pronar T700 SECTION 5 5.3.3 CLEANING THE AIR FILTERS FIG. 5.8 Air filter (1) securing slide lock, (2) air filter cover DANGER Before proceeding to dismantle filter, reduce pressure in supply line. While disengaging filter slide gate, hold cover with other hand. Stand away from filter cover vertical direction.

  • Page 109: Draining Water From Air Tank

    SECTION 5 Pronar T700 Hold the filter cover (2) with the other hand. After removing slide lock, the cover is pushed off by the spring, in the filter housing. The insert and the filter body should be carefully washed out and blown through with compressed air.

  • Page 110: Cleaning Drain Valve

    Pronar T700 SECTION 5 The compressed air in the tank causes the removal of water to the exterior. After release valve stem should automatically close and stop airflow from tank. In the event, that the valve stem resists returning to its setting, then the whole drain valve must be unscrewed and cleaned, or replaced (if it is damaged) - see section 5.3.5.

  • Page 111: Cleaning And Maintaining Pneumatic Line

    SECTION 5 Pronar T700 5.3.6 CLEANING AND MAINTAINING PNEUMATIC LINE CONNECTIONS AND PNEUMATIC SOCKETS DANGER Unreliable and dirty trailer connections may cause unreliability and faulty functioning of braking system. Damaged connection body or connection socket to second trailer should be replaced. In event of damage to cover or seal, change these elements for new reliable elements.

  • Page 112: Hydraulic System Maintenance

    Pronar T700 SECTION 5 The ends of the pneumatic line (1) must be cut exactly at right angles. Clamping ring (3) should be fitted according to figure (5.10). Reinforcing sleeve (4) of the line must be thoroughly depressed. Check tightness of connections in accordance with Chapter (5.3.2).

  • Page 113: Checking Hydraulic System Tightness

    SECTION 5 Pronar T700 • Checking technical condition of hydraulic connections. DANGER Do NOT tip trailer with unreliable hydraulic tipping system. Do not use the trailer if the support hydraulic system is out of order. Do NOT use the trailer if hydraulic brake system is unreliable.

  • Page 114: Checking Technical Condition Of Hydraulic

    Pronar T700 SECTION 5 5.4.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC CONNECTIONS AND SOCKETS. Hydraulic connections and sockets designed for connection with second trailer must be in good working condition and kept clean. Each time before connecting check if socket in tractor or connection of second trailer are maintained in good working condition.
  • Page 115 SECTION 5 Pronar T700 IMPORTANT! Do NOT travel with unreliable lighting system. Damaged lamp lenses, and burned-out bulbs must be replaced immediately before travelling. Lost or damaged reflective lights must be replaced. Required service actions Hitch trailer to tractor with appropriate connection lead.

  • Page 116: Change Bulbs

    Pronar T700 SECTION 5 5.5.2 CHANGE BULBS Bulb set is presented in table (5.3). All light lenses are secured by screws and it is not necessary to dismantle whole lamp or trailer subassemblies. TAB. 5.3 List of bulbs NUMBER BULB / QUANTITY...

  • Page 117: Trailer Lubrication

    SECTION 5 Pronar T700 5.6 TRAILER LUBRICATION FIG. 5.11 Trailer's lubrication points 5.29...
  • Page 118 Pronar T700 SECTION 5 FIG. 5.12 Trailer's lubrication points TAB. 5.4 Trailer lubrication schedule ITEM LUBRICATION POINT Wheel hub bearing Drawbar eye Expander shaft sleeve 5.30...
  • Page 119 SECTION 5 Pronar T700 ITEM LUBRICATION POINT Parabolic leaf springs Socket for installation of tipping ram and cylinder suspension Tipping ram cylinder ball bearing Parking brake mechanism Leaf spring absorber sliding surface Leaf spring absorber pin Tandem suspension rocker arm pin...
  • Page 120 Pronar T700 SECTION 5 ITEM LUBRICATION POINT Tailgate wing securing pin Slide gate guide Slide gate pull shaft pin Tailgate leaf guide roller Boogie suspension leaf spring Boogie suspension rocker arm pin Lubrication periods – M months, D – days, –...

  • Page 121: Consumables

    SECTION 5 Pronar T700 and lubricating properties, it is recommended to apply on outer leaf spring surfaces very thin layer of lithium or lime alkali grease. For this purpose, silicone spray (for lubricating of guides, lock etc. see table) can be used. Sliding surfaces shock absorber and shock absorber pin should be lubricated according to recommendations contained in table (5.4).

  • Page 122: Lubricants

    Pronar T700 SECTION 5 oil types may cause damage to trailer or tractor. In a new machine, the hydraulic system is filled with L HL32 Lotos hydraulic oil. In the event of necessity of changing hydraulic oil for another oil, check the recommendations of the oil Manufacturer very carefully.

  • Page 123: Cleaning Trailer

    SECTION 5 Pronar T700 characteristics should typify aerosol preparations (Silicon greases and anticorrosive lubricant substances). Before starting to use greases acquaint oneself with the content off the information leaflet for the chosen product. In particular, the principles of safety and handling of the lubricant and method of disposal (waste containers, contaminated rags, etc.) are essential.
  • Page 124 Pronar T700 SECTION 5 • Do not apply organic solvents, preparations of unknown origin or other substances, which may cause damage to lacquered, rubber or plastic surfaces. In the event of doubt it is recommended to make a test on an unseen surface area.

  • Page 125: Storage

    SECTION 5 Pronar T700 5.9 STORAGE • Trailer should be kept in closed or roofed building. • If the machine will not be used for a long time, it is essential to protect it from adverse weather, especially rust and accelerated tyre deterioration. During this time trailer must be unloaded.
  • Page 126 Pronar T700 SECTION 5 TAB. 5.7 Tightening torque for nut and bolt connections 10.9 THREAD METRIC Md [Nm] 1 050 1 150 1 650 1 050 1 450 2 100 – resistance class according to DIN ISO 898 standard Hydraulic lines should be tightened with torque of 50 – 70 Nm.

  • Page 127: Adjustment Of Drawbar Position

    SECTION 5 Pronar T700 5.11 ADJUSTMENT OF DRAWBAR POSITION Location of the drawbar should be selected individually depending on the height of the hitch on the tractor that will pull the trailer. If possible, we recommend adjusting the tractor hitch so that the trailer drawbar is positioned horizontally while driving on a flat terrain.

  • Page 128: Configuring The Brake System

    Pronar T700 SECTION 5 while adjusting the lifting jack, transfer the lug (5) to the correct height (there are 3 possible settings) and secure with bolts (6). You can also adjust drawbar position by transferring the rocker arm pin (7) to the corresponding hole of the spring (4) rocker arm to obtain different height settings.
  • Page 129 SECTION 5 Pronar T700 FIG. 5.15 Reconfiguring the double conduit system for single conduit operation (1) yellow spiral conduit, (2) red spiral conduit, (3) conduit filter, (4) plug, (5) copper washer, (6) black connector ATTENTION! Before beginning repair works on pneumatic systems, reduce air pressure.

  • Page 130: Troubleshooting

    Pronar T700 SECTION 5 5.13 TROUBLESHOOTING TAB. 5.8 Troubleshooting FAULT CAUSE REMEDY Brake system pneumatic Connect brake conduits (applies conduits not connected to pneumatic systems). Applied parking brake Release parking brake. Damaged pneumatic Replace. Problem with moving off system connection conduits...
  • Page 131 SECTION 5 Pronar T700 FAULT CAUSE REMEDY Check oil quality, make sure that Improper hydraulic oil the oil in both machines is of the viscosity same type. If necessary change oil in tractor or in trailer. Insufficient tractor hydraulic pump output, tractor Check tractor hydraulic pump.
  • Page 132 Pronar T700 SECTION 5 5.44...
  • Page 133 NOTES …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 134 …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 135 ANNEX A Trailer Pronar T700 wheel dimensions TYRE DIMENSIONS WHEEL RIM SIZE Wheel 445 / 65 R22,5 Wheel rim 14.00x22.5; ET=0 Wheel 550 / 60- 22.5 16PR 171A8 Wheel rim 16.00x22.5; ET=0 Wheel 20.5R22 (50x20,0R22) 173A8 Wheel rim 16.00x22.5S; ET=0 Wheel 600/50R22,5 170A8 Wheel rim 20.00x22.5;...
