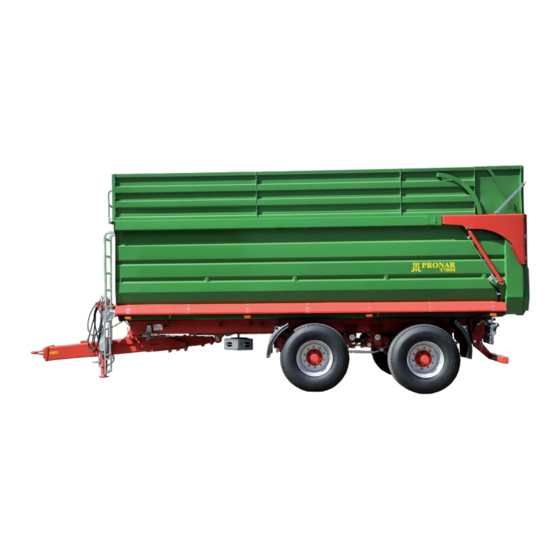

PRONAR T700M Operator's Manual

Agricultural trailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

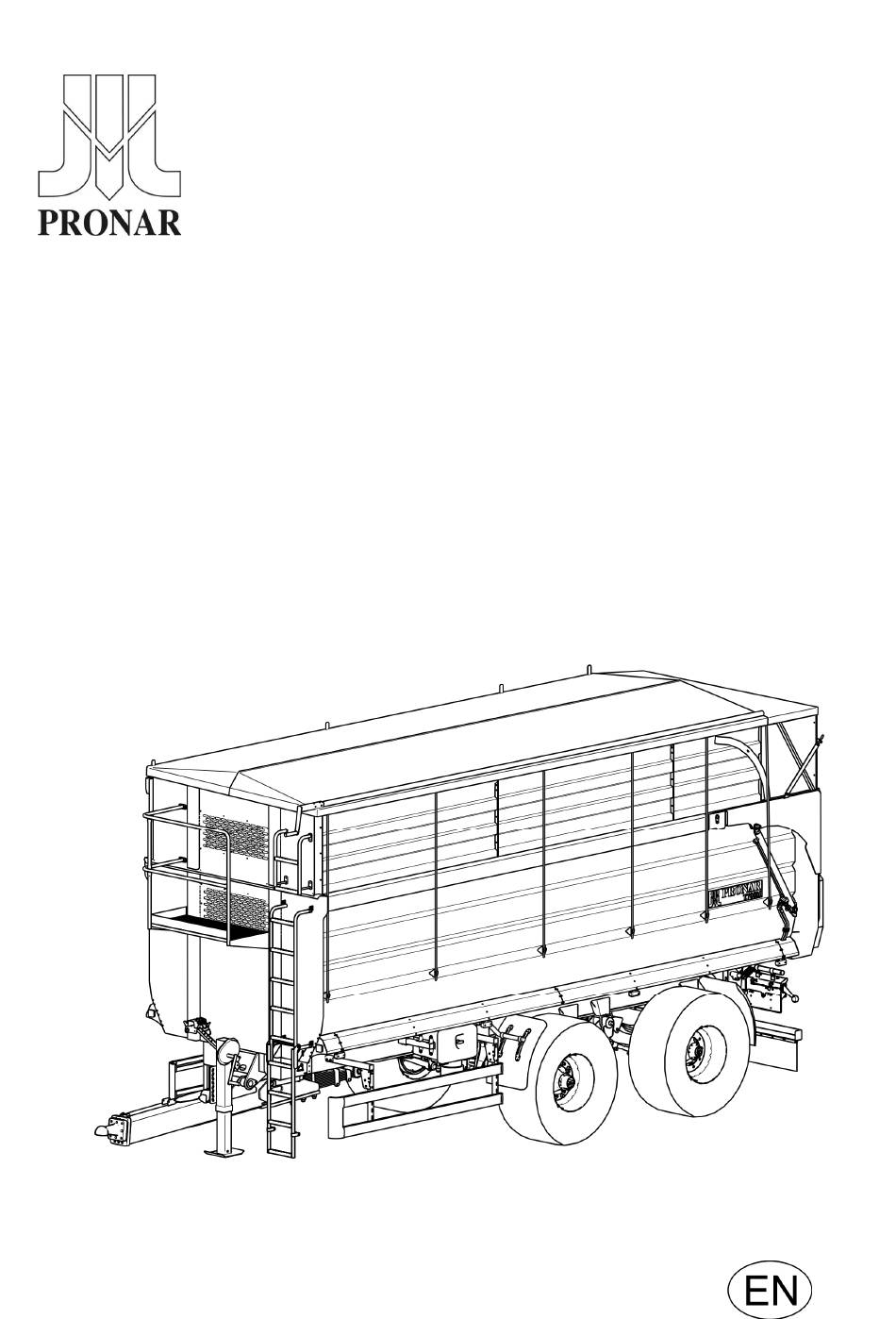

TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
ISSUE 1B-10-2020
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, WOJ. PODLASKIE
tel.:
fax:
OPERATOR'S MANUAL
AGRICULTURAL TRAILER
PRONAR T700M
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO 354N-00000000-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T700M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PRONAR T700M

Summary of Contents for PRONAR T700M

  • Page 1 PRONAR Sp. z o.o. 17-210 NAREW, UL. MICKIEWICZA 101A, WOJ. PODLASKIE tel.: +48 085 681 63 29 +48 085 681 64 29 +48 085 681 63 81 +48 085 681 63 82 fax: +48 085 681 63 83 +48 085 682 71 10 www.pronar.pl...
  • Page 3 The machine is designed to meet obligatory standards, documents and legal regulations currently in force. The manual describes the basic safety rules and operation of agricultural trailer Pronar T700M. If the information contained in the Operator's Manual needs clarification then the user should refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
  • Page 4 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL Information, descriptions of danger and precautions and also recommendations and prohibitions associated with user safety instructions are marked: and also preceded by the word "DANGER”. Failure to observe the instructions may endanger the machine operator's or other person's health or life. Particularly important information and instructions, the observance of which is essential, are distinguished in the text by the sign: and also preceded by the word "ATTENTION".
  • Page 5 DIRECTIONS USED IN THIS OPERATOR'S MANUAL Left side – side to the left hand of the operator facing in the direction of machine's forward travel. Right side – side to the right hand of the operator facing in the direction of machine's forward travel.

  • Page 7: Table Of Contents

    CONTENTS 1 BASIC INFORMATION IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION 1.1.2 AXLE IDENTIFICATION 1.1.3 LIST OF SERIAL NUMBERS INTENDED USE EQUIPMENT TERMS & CONDITIONS OF WARRANTY 1.10 TRANSPORT 1.11 1.5.1 TRANSPORT ON VEHICLE 1.11 1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.13 ENVIRONMENTAL HAZARDS 1.14 WITHDRAWAL FROM USE 1.15...
  • Page 8 3 DESIGN AND OPERATION TECHNICAL SPECIFICATION TRAILER CONSTRUCTION 3.2.1 CHASSIS 3.2.2 LOAD BOX 3.2.3 MAIN BRAKE 3.2.4 HYDRAULIC TIPPING SYSTEM 3.12 3.2.5 HYDRAULIC SYSTEM OF THE SUPPORT (OPTION) 3.14 3.2.6 TURNING INTERLOCK HYDRAULIC SYSTEM (OPTION) 3.16 3.2.7 TAILGATE HYDRAULIC SYSTEM 3.17 3.2.8 PARKING BRAKE 3.18...
  • Page 9 5 MAINTENANCE PRELIMINARY INFORMATION MAINTENANCE OF BRAKES AND AXLES 5.2.1 PRELIMINARY INFORMATION 5.2.2 INITIAL INSPECTION OF AXLE BRAKES 5.2.3 CHECKING BRAKE SHOE LININGS FOR WEAR 5.2.4 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS 5.2.5 ADJUSTMENT OF AXLE BEARING SLACKNESS 5.2.6 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF WHEEL NUT TIGHTENING 5.2.7 CHECKING AIR PRESSURE IN TYRES, EVALUATING TECHNICAL CONDITION OF TYRES AND STEEL WHEELS...
  • Page 10 MAINTENANCE OF ELECTRICAL SYSTEM AND WARNING ELEMENTS 5.29 5.5.1 PRELIMINARY INFORMATION 5.29 5.5.2 REPLACEMENT OF BULBS 5.30 MAINTENANCE OF SUSPENSION SYSTEM 5.31 TRAILER LUBRICATION 5.33 CONSUMABLES 5.38 5.8.1 HYDRAULIC OIL 5.38 5.8.2 LUBRICANTS 5.39 CLEANING THE TRAILER 5.39 5.10 STORAGE 5.41 5.11 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS...

  • Page 11: Basic Information

    SECTION BASIC INFORMATION...

  • Page 12: Identification

    Pronar T700M SECTION 1 1.1 IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION FIGURE 1.1 Location of the data plate and serial number (1) data plate, (2) serial number The trailer is marked with the data plate (1), and the factory number (2) located on a gold painted rectangle.

  • Page 13: Axle Identification

    SECTION 1 Pronar T700M TABLE 1.1 Markings on data plate ITEM MARKING General description and purpose Symbol / type of trailer Trailer's year of manufacture Seventeen digit vehicle identification number (VIN) Official certificate number Tare weight Maximum gross weight Carrying capacity...

  • Page 14: List Of Serial Numbers

    Pronar T700M SECTION 1 FIGURE 1.2 Location of the axle data plate (1) axle, (2) data plate 1.1.3 LIST OF SERIAL NUMBERS In the event of ordering a replacement part or in the case of the appearance of problems it is often essential to give the factory numbers of parts or the VIN number of the trailer, therefore it is recommended that these numbers are inscribed in the spaces below.

  • Page 15: Intended Use

    SECTION 1 Pronar T700M 1.2 INTENDED USE The trailer is designed for transport of harvested crops and agricultural products as well as loose, bulk and long load materials at the farm and on public roads. It is acceptable to transport construction materials, mineral fertilizers and other loads, if fulfilling conditions indicated in section 4.
  • Page 16 Pronar T700M SECTION 1 Using it as intended also involves all actions connected with the safe and proper operation and maintenance of the machine. Due to the above, the user is obliged to: • carefully read the OPERATOR'S MANUAL of the trailer and the WARRANTY BOOK and conform with the recommendations contained in these documents, •...
  • Page 17 SECTION 1 Pronar T700M TABLE 1.2 Requirements for agricultural tractor CONTENTS UNIT REQUIREMENTS Brake system - sockets Single conduit pneumatic system according to A DIN 74 294 Double conduit pneumatic system according to ISO 1728 Hydraulic system according to ISO 7421-1...

  • Page 18: Equipment

    Pronar T700M SECTION 1 TABLE 1.3 Requirements for second trailer CONTENTS UNIT REQUIREMENTS Maximum gross weight 16,000 Brake system - connectors Single conduit pneumatic system according to A DIN 74 294 Double conduit pneumatic system coupler compliant with ISO 1728...
  • Page 19 SECTION 1 Pronar T700M TABLE 1.4 Trailer's equipment EQUIPMENT • Operator’s Manual • Warranty Book • Connection lead for the electrical system • Wheel chocks • Complete set of wall extensions (800) • Mechanical support with transmission • Hydraulic straight support •...

  • Page 20: Terms & Conditions Of Warranty

    SECTION 1 1.4 TERMS & CONDITIONS OF WARRANTY PRONAR Sp. z o.o., Narew guarantees the reliable operation of the machine when it is used according to its intended purpose as described in the OPERATOR'S MANUAL. The repair period is specified in the WARRANTY BOOK.

  • Page 21: Transport

    SECTION 1 Pronar T700M Demand that the seller carefully and precisely fills out the Warranty Book and guarantee repair coupons. A missing date of purchase or sale point stamp may make the user ineligible for any warranty repair or refund.
  • Page 22 Pronar T700M SECTION 1 certified and technically reliable securing measures. Worn straps, cracked securing catches, bent or corroded hooks as well as elements damaged in a different way may be unsuitable for use. Carefully read the information stated in the Operator's Manual for the given securing measure.

  • Page 23: Independent Transport By The User

    SECTION 1 Pronar T700M FIGURE 1.3 Positioning of transport lugs (1) transport lug, (2) lower longitudinal frame, (3) load box DANGER Incorrect use of securing measures may cause an accident. 1.5.2 INDEPENDENT TRANSPORT BY THE USER If a purchased trailer is transported by the user, the user must read the Operator's Manual of the trailer and adhere to the recommendations contained therein.

  • Page 24: Environmental Hazards

    Pronar T700M SECTION 1 1.6 ENVIRONMENTAL HAZARDS A hydraulic oil leak constitutes a direct threat to the natural environment owing to its limited biodegradability. The negligible solubility of hydraulic oil in water does not cause extreme toxicity of organisms living in the aquatic environment. The formation of a film of oil on the water may be the direct cause of physical action on organism, perhaps causing change of oxygen values in the water because of lack of direct contact of air with the water.

  • Page 25: Withdrawal From Use

    SECTION 1 Pronar T700M 1.7 WITHDRAWAL FROM USE In the event of decision by the user to withdraw the trailer from use, comply with the regulations in force in the given country concerning withdrawal from use and recycling of machines withdrawn from use. Before commencing dismantling, totally remove the oil from the hydraulic system and reduce air pressure completely in the pneumatic braking system (e.g.
  • Page 26 Pronar T700M SECTION 1 1.16...

  • Page 27: Safety Advice

    SECTION SAFETY ADVICE...

  • Page 28: Basic Safety Rules

    Pronar T700M SECTION 2 2.1 BASIC SAFETY RULES 2.1.1 USE OF TRAILER • Before using the machine, the user must carefully read this Operator's Manual and the WARRANTY BOOK. When operating the machine, the operator must comply with all recommendations contained in the Operator's Manual.

  • Page 29: Hitching And Unhitching From Tractor

    SECTION 2 Pronar T700M them against falling. The above procedure should be performed by at least two persons. • In the final phase of folding the tarpaulin cover, at all times hold with one hand the top of the front frame or other permanent structural element. Non-compliance with this rule can put the user at risk of falling.

  • Page 30: Hydraulic System And Pneumatic System

    Pronar T700M SECTION 2 • Before hitching the trailer check that both machines are in good technical condition. • After completed hitching of the trailer check the safety of the hitch. • Be especially careful when hitching the machine. • When hitching, there must be nobody between the trailers. Person assisting in hitching the machines should stand outside the area of danger and be visible to the tractor driver at all times.

  • Page 31: Loading And Unloading

    SECTION 2 Pronar T700M • After changing the hydraulic oil, the used oil should be properly disposed of. Used oil or oil which has lost its properties should be stored in original containers or replacement containers resistant to action of hydrocarbons. Replacement containers must be clearly marked and appropriately stored.

  • Page 32: Transporting The Machine

    Pronar T700M SECTION 2 • Incorrect load distribution and overloading the machine may cause the trailer to tip over or cause damage to its components. • Do NOT go or place hand between open tailgate and load box. • If the load does not pour from the raised load box immediately cease unloading.
  • Page 33 SECTION 2 Pronar T700M • Chocks (1) should be placed only under one wheel (one in front of the wheel, the other behind the wheel - figure (2.1)). • Do NOT move off or drive when load box is raised.
  • Page 34 Pronar T700M SECTION 2 • The trailer is designed to operate on slopes up to 8 . Driving trailer across ground with steeper slopes may cause the trailer to tip over as a result of loss of stability. • While driving on public roads, the trailer and the tractor must be fitted with a certified or authorised reflective warning triangle.
  • Page 35 SECTION 2 Pronar T700M FIGURE 2.2 Mounting place for slow-moving vehicle warning sign (1) slow-moving vehicle warning sign, (2) attachment point • If the trailer is the last vehicle in the group, a slow-moving vehicle warning sign should be placed on the trailer's rear load box wall - figure (2.2). The warning sign (1) should be attached using the specifically prepared holder (2), riveted to the rear wall of the load box.

  • Page 36: Tyres

    Pronar T700M SECTION 2 • Do NOT attempt to enter the trailer load box while travelling. • Do NOT park the trailer on a slope. 2.1.7 TYRES • When working with tyres, the trailer should be immobilised with parking brake and secured against rolling by placing chocks under wheel.
  • Page 37 SECTION 2 Pronar T700M • Any modification to the trailer frees the manufacturer from any responsibility for damage or detriment to health, which may arise as a result. • The trailer can only be stood on when it is absolutely motionless and the tractor engine is switched off.
  • Page 38 Pronar T700M SECTION 2 • Before welding or electrical work, the trailer should be disconnected from the power supply. The paint coating should be cleaned. Burning paint fumes are poisonous for people and animals. Welding work should be carried out in a well lit and well ventilated space.

  • Page 39: Residual Risk

    2.2 RESIDUAL RISK Pronar Sp. z o. o. in Narew has made every effort to eliminate the risk of accidents. There is, however, a certain residual risk, which could lead to an accident, and this is connected mainly with the actions described below: •...

  • Page 40: Information And Warning Decals

    In the event of their destruction, they must be replaced with new ones. Safety decals are available from your PRONAR dealer or directly from PRONAR customer service. New assemblies, changed during repair, must be labelled once again with the appropriate safety signs.
  • Page 41 SECTION 2 Pronar T700M DECAL MEANING Grease the trailer according to the recommendations in the Operator's Manual Regularly check if the nuts and bolts fixing the wheels and other components are properly tightened. Caution! Before starting work, carefully read the Operator's Manual.
  • Page 42 Pronar T700M SECTION 2 DECAL MEANING Caution! Danger of electric shock. Keep a safe distance from overhead electric power lines during unloading. Danger of crushing Do NOT perform any maintenance or repairs on the load box that is loaded, raised or not supported.
  • Page 43 SECTION 2 Pronar T700M DECAL MEANING Air pressure in the tyres. Permissible vehicle speed Drawbar load Positions of control valve controlling work of hydraulic tipping system (1 or 2 trailers). – pressure value should be adapted to tyres Numbers in the Item column correspond to labels in figure (2.3) Decal (14) is placed near the hydraulic valve.
  • Page 44 Pronar T700M SECTION 2 FIGURE 2.3 Locations of information and warning decals 2.18...

  • Page 45: Design And Operation

    SECTION DESIGN AND OPERATION...

  • Page 46: Technical Specification

    Pronar T700M SECTION 3 3.1 TECHNICAL SPECIFICATION TABLE 3.1 Basic technical specification CONTENTS UNIT T700 Trailer dimensions Total length 8,500 Total width 2,550 Total height 3,750 Internal load box dimensions Length 6,694 Width (front/rear) 2 242 / 2 302 Height...

  • Page 47: Trailer Construction

    SECTION 3 Pronar T700M 3.2 TRAILER CONSTRUCTION 3.2.1 CHASSIS The trailer chassis consists of the subassemblies indicated in figure (3.1). Lower frame (1) is a structure welded from steel sections. The main support elements of the frame are two longitudinal members connected with crossbars. Parking brake crank mechanism (15) is located on the left longitudinal member at the front of the frame.
  • Page 48 Pronar T700M SECTION 3 FIGURE 3.1 Trailer chassis (1) lower frame, (2)drawbar, (3) parking support, (4) wheel chocks, (5) tipping cylinder suspension seat , (6) load box support, (7) lights support beam, (8) wheel axle, (9) leaf spring, (10) rocker arm of tandem suspension leaf spring, (11) - (14) drawbar eye,...

  • Page 49: Load Box

    SECTION 3 Pronar T700M 3.2.2 LOAD BOX FIGURE 3.2 Load box (1) load box, (2) 800mm-high wall extensions., (3) tailgate, (4) deflectors, (5) front wall mesh, (6) fenced platform (option), (7) mesh of front wall extension, (8) ladder, (9) tarpaulin cover...
  • Page 50 Pronar T700M SECTION 3 Trailer load box (1) has a monocoque construction. It is madeof steel plates and shapes. In the central part of the load box there is a linking cable. There is an inspection hole at the front protected with steel mesh (5).

  • Page 51: Main Brake

    SECTION 3 Pronar T700M In order to enable more precise unloading of loose materials, a slide gate (2) is installed in the tailgate. A chute (3) mounted under the lower edge of the chute opening slide gate can be supplied as additional equipment of the trailer.
  • Page 52 Pronar T700M SECTION 3 FIGURE 3.4 Design and diagram of the double conduit pneumatic braking system (1) air tank, (2) control valve, (3) manual brake force regulator, (4) pneumatic cylinder, (5) conduit connector (red), (6) conduit connector (yellow), (7) air filter, (8) air tank control connector, (9) pneumatic cylinder control connector, (10) drain valve, (11) socket (red) - option, (12) socket (yellow) - option, (13) relay valve.
  • Page 53 SECTION 3 Pronar T700M FIGURE 3.5 Design and diagram of the single conduit pneumatic braking system (1) air tank, (2) control valve, (3) manual braking force regulator, (4) pneumatic cylinder, (5) conduit connector (black), (6) plug, (7) air filter, (8) air tank control connector,...
  • Page 54 Pronar T700M SECTION 3 FIGURE 3.6 Design and diagram of the double conduit pneumatic braking systemwith an automatic regulator (1) air tank, (2) control valve, (3) automatic brake force regulator, (4) pneumatic cylinder, (5) conduit connector (red), (6) conduit connector (yellow), (7) air filter, (8) air tank control...
  • Page 55 SECTION 3 Pronar T700M FIGURE 3.7 Design and diagram of hydraulic braking system (1) hydraulic cylinder, (2) hydraulic quick coupler (socket), (3) quick coupler - plug, (4) information decal Three-step braking force regulator (2) - figure (3.8) adjusts braking force depending on setting.

  • Page 56: Hydraulic Tipping System

    Pronar T700M SECTION 3 FIGURE 3.8 Control valve and braking force regulator (1) control valve, (2) braking force regulator, (3) push-button for applying the trailer brakes while standing motionless, (4) regulator working position selection lever, (A) "NO LOAD" position, (B) "HALF LOAD" position, (C) "FULL LOAD" position 3.2.4 HYDRAULIC TIPPING SYSTEM...
  • Page 57 SECTION 3 Pronar T700M FIGURE 3.9 Design and diagram of the hydraulic tandem tipping system (1) telescopic cylinder, (2) three-way valve, (3) cut-off valve, (4) quick coupler, (5) socket, (6) control cable, (7) guide roller, (8) information decal Three-way valve (2) – figure (3.9)is used to activate these circuits. This valve's lever can be placed in two positions: •...

  • Page 58: Hydraulic System Of The Support (Option)

    Pronar T700M SECTION 3 ATTENTION Cut-off valve (3) – figure (3.9) limits the tipping angle of the load box when tipped to the rear. The length of the cable (6) controlling this valve is factory adjusted by the Manufacturer and must not be changed when the trailer is used.
  • Page 59 SECTION 3 Pronar T700M The trailer can be equipped with a straight hydraulic support – figure (3.10) or a folding hydraulic support – figure (3.11). Hydraulic oil manifold of the tractor's external hydraulic system is used for controlling the support's hydraulic cylinder. If the handle is shifted perpendicularly to valve (3), the support is locked in fixed position.

  • Page 60: Turning Interlock Hydraulic System (Option)

    Pronar T700M SECTION 3 The hydraulic system of the support is filled with L-HL32 Lotos hydraulic oil. 3.2.6 TURNING INTERLOCK HYDRAULIC SYSTEM (OPTION) Turning interlock hydraulic system locks the rear steering axle (option) when reversing the trailer. The hydraulic system is supplied with oil from the tractor external hydraulic system.

  • Page 61: Tailgate Hydraulic System

    SECTION 3 Pronar T700M 3.2.7 TAILGATE HYDRAULIC SYSTEM The hydraulic system of the tailgate controls raising and lowering of the tailgate. The hydraulic system is supplied with oil from the tractor external hydraulic system. Pressurised oil is fed through hydraulic conduits (2) and (3) terminated with quick-couplers (8) to hydraulic cylinders (1), which open or close the tailgate.

  • Page 62: Parking Brake

    Pronar T700M SECTION 3 FIGURE 3.14 Diagram of the hydraulic system of the tailgate (1) hydraulic cylinder, (2) two-sided hydraulic lock, (3) flow divider 3.2.8 PARKING BRAKE The parking brake is used for immobilising the trailer while parking. The design of the system is shown in figure (3.15).

  • Page 63: Lighting System

    SECTION 3 Pronar T700M FIGURE 3.15 Parking brake design (1) expander arm, (2) brake crank mechanism, (3) steel cable I, (4) steel cable II, (5) lever, (6) guide roller, (6) arm 3.2.9 LIGHTING SYSTEM The trailer electrical system is designed for supply from direct current source of 12 V.
  • Page 64 Pronar T700M SECTION 3 FIGURE 3.16 Arrangement of electrical components and reflective lights (1) front parking light, (2) side parking light, (3) rear left lamp assembly, (4) rear right lamp assembly, (5) rear left clearance light, (6) rear right clearance light, (7) 7-pin socket, (8) reflective warning triangle, (9) license plate light 3.20...
  • Page 65 SECTION 3 Pronar T700M FIGURE 3.17 Electrical system diagram Marking according to table (3.2), (3.3) and (3.4) 3.21...
  • Page 66 Pronar T700M SECTION 3 TABLE 3.2 List of electrical component markings SYMBOL NAME Rear right lamp assembly Rear left lamp assembly Front seven pin socket Rear seven pin socket Right license plate light Left license plate light Front right parking light...

  • Page 67: Hydraulic Steering System

    SECTION 3 Pronar T700M TABLE 3.4 Lead colour marking MARKING COLOUR White Black Blue Orange Green Black and green Pink brown Yellow 3.2.10 HYDRAULIC STEERING SYSTEM The trailer can be equipped with hydraulic steering system for controlling the rear axle of the trailer.
  • Page 68 Pronar T700M SECTION 3 FIGURE 3.18 Diagram of the hydraulic steering system (1) axle steering cylinder, (2) axle turning cylinder, (3) hydraulic accumulator, (4) manometer, (5) hydraulic valve, (6) hand pump 3.24...

  • Page 69: Correct Use

    SECTION CORRECT USE...

  • Page 70: Preparing For Work Before The First Use

    Pronar T700M SECTION 4 4.1 PREPARING FOR WORK BEFORE THE FIRST USE 4.1.1 CHECKING THE TRAILER AFTER DELIVERY The manufacturer guarantees that the trailer is fully operational and has been checked according to quality control procedures and is ready for normal use. This does not release the user from an obligation to check the machine's condition after delivery and before first use.

  • Page 71: Preparing The Trailer For The First Hitching To

    SECTION 4 Pronar T700M 4.1.2 PREPARING THE TRAILER FOR THE FIRST HITCHING TO TRACTOR Preparation Check all the trailer's lubrication points, lubricate the machine as needed according to recommendations provided in section 5.7. Check if the nuts and bolts fixing the wheels are properly tightened.

  • Page 72: Hitching The Trailer To Tractor And Unhitching

    Pronar T700M SECTION 4 If during test run worrying symptoms occur such as: • noise and abnormal sounds originating from the abrasion of moving elements of the trailer design, • hydraulic oil leak, • pressure drop in braking system, • incorrect operation of hydraulic and/or pneumatic cylinders, or other faults, find the cause of the problem.
  • Page 73 SECTION 4 Pronar T700M Position agricultural tractor directly in front of drawbar eye. Reverse the tractor and, if hydraulic support is used, connect the conduit to the support according to label (6) – table (2.1) (straight hydraulic support or folding hydraulic support).
  • Page 74 Pronar T700M SECTION 4 Connect pneumatic system conduits (applies to double conduit system): Connect pneumatic conduit marked yellow with yellow socket in tractor. Connect pneumatic conduit marked red with red socket in tractor. Connect pneumatic system conduit (applies to single conduit pneumatic system).
  • Page 75 SECTION 4 Pronar T700M ATTENTION Trailer may only be hitched to a technically reliable tractor, which has the appropriate hitch, required connection sockets for braking, hydraulic and electrical systems, and hydraulic oil in both machines is of the same type and may be mixed.
  • Page 76 Pronar T700M SECTION 4 If straight or folding hydraulic support is used, open the support valve - (figure (3.10) or (3.11)). Operate the manifold on the tractor in the direction corresponding to the support cylinder piston rod extension (hydraulic support).

  • Page 77: Telescopic Support Operation

    SECTION 4 Pronar T700M ATTENTION If the ball hitch is used, first unlock the tractor hitch and then raise the drawbar by means of the support and drive the tractor away from the machine. 4.2.1 TELESCOPIC SUPPORT OPERATION Proper height of drawbar eye in relation to tractor hitch can be set using the telescopic support with mechanical gear - figure (4.1).

  • Page 78: Hitching And Unhitching The Second Trailer

    Pronar T700M SECTION 4 Raising the support Remove safety pin (5). Move support crank (3) from neutral position (A) to position (B). Turn the crank in proper direction in order to raise the support foot (2) maximally upwards. Install securing pin.
  • Page 79 SECTION 4 Pronar T700M Immobilise the second trailer with parking brake. Remove securing cotter pin (4) and take out hitch pin (3) in the first trailer - figure (4.1). Adjust the height of the drawbar (2) of the second trailer in such a manner as to enable hitching the machines.
  • Page 80 Pronar T700M SECTION 4 FIGURE 4.2 Coupling second trailer (1) hitch body, (2) the second trailer drawbar, (3) hitch pin, (4) chain with locking cotter pin Unhitching the second trailer Immobilise tractor and trailer with parking brake. Turn off tractor engine. Ensure that unauthorised persons do not have access to the tractor cab.

  • Page 81: Loading And Securing Load

    SECTION 4 Pronar T700M Insert the pin again and secure it in the hitch. ATTENTION Do NOT hitch a second trailer constructed on any chassis except dual axle. 4.4 LOADING AND SECURING LOAD 4.4.1 GENERAL INFORMATION ABOUT LOADING Before beginning loading make certain that the tailgate and chute slide gate are properly closed and secured.
  • Page 82 Pronar T700M SECTION 4 TABLE 4.1 Guideline weights by volume of selected materials WEIGHT BY VOLUME TYPE OF MATERIAL kg/m Root crops: raw potatoes 700 - 820 steamed crushed potatoes 850 - 950 dried potatoes 130 - 150 sugar beet - roots...
  • Page 83 SECTION 4 Pronar T700M WEIGHT BY VOLUME TYPE OF MATERIAL kg/m milled burnt lime 700 - 800 cinders 650 - 750 gravel 1 600 – 1 800 Straw litter and bulk feeds: meadow hay dried in the swath 10 - 18...
  • Page 84 Pronar T700M SECTION 4 WEIGHT BY VOLUME TYPE OF MATERIAL kg/m cut fresh beet leaves 350 - 400 beet leaves in gathering trailer 180 - 250 Concentrated feeds and mixed feeds: stored chaff 200 - 225 pressed cake 880 – 1 000...
  • Page 85 SECTION 4 Pronar T700M WEIGHT BY VOLUME TYPE OF MATERIAL kg/m oats 400 - 530 lucerne 760 - 800 640 - 760 Others: dry soil 1 300 – 1 400 wet soil 1 900 – 2 100 fresh peat 700 - 850...
  • Page 86 Pronar T700M SECTION 4 the seed diameter or other carried material. Profiled rubber seals, silicone sealers, plastic wrap, rope or textile materials are recommended materials to provide sealing of the load box. Additionally, it is recommended to protect the load with tarpaulin cover. It protects the load against spilling during travel, being blown away by the wind and also protects load against moisture.
  • Page 87 SECTION 4 Pronar T700M High volume loads High-volume loads such as hay, straw bales (rectangular or round), green fodder, etc., are recommended to be loaded with the aid of appropriate implements: grabs for rectangular or round bales, etc. The load must not be higher than the load box wall extensions. Otherwise, the trailer will exceed the maximum height of 4m allowed for vehicles on public roads.

  • Page 88: Transporting Load

    Pronar T700M SECTION 4 It is impossible to describe all methods of loading due to the diversity of materials, tools, means of fixing and securing a load. The trailer user must carefully read the regulations concerning road transport and comply with them.
  • Page 89 SECTION 4 Pronar T700M • While driving on public roads the trailer must be fitted with a certified or authorised reflective warning triangle. • Comply with all road traffic regulations and keep all road lights and indicator lights clean at all times and ensure they are in good condition. Any damaged or lost lamps or indicator lights must be immediately repaired or replaced.

  • Page 90: Unloading

    Pronar T700M SECTION 4 4.6 UNLOADING The trailer is equipped with hydraulic tipping system and suitable frame structure and the load box allowing tipping to the rear. Tipping of the load box is controlled from driver's cab using external tractor hydraulic system manifold.
  • Page 91 SECTION 4 Pronar T700M While unloading high-volume materials be especially careful. Do NOT tip load box on uneven or wet ground and move and jerk trailer during unloading. Bulky materials are normally difficult to unload. Therefore, proceed cautiously and patiently. Careless operation of trailer may pose a danger to operators and bystanders can also cause damage to the machine.

  • Page 92: Proper Use And Maintenance Of Tyres

    Pronar T700M SECTION 4 DANGER Do NOT jerk the trailer forwards if load is bulky or reluctant to pour and does not unload. Tipping may only be performed when trailer is hitched to tractor. Do NOT move off or drive when load box is raised.

  • Page 93: Hydraulic Steering System Operation

    SECTION 4 Pronar T700M • Avoid potholes, sudden manoeuvres or high speeds when turning. 4.8 HYDRAULIC STEERING SYSTEM OPERATION FIGURE 4.4 Hydraulic hand pump (1) oil tank, (2) hand pump lever, (3) hydraulic valve, (4) pressure gauge, (A) open position,...
  • Page 94 Pronar T700M SECTION 4 • fill the system by means of the pump using hand lever (2) until each pressure gauge (4) indicates pressure of 80 bar, • do not add oil when the above-mentioned pressure level is achieved, • close all valves (3) and set the pump lever (2) aside, •...

  • Page 95: Maintenance

    SECTION MAINTENANCE...

  • Page 96: Preliminary Information

    Pronar T700M SECTION 5 5.1 PRELIMINARY INFORMATION When using the trailer, regular inspections of its technical condition are essential and the performance of maintenance procedures, which keep the machine in good technical condition. In connection with this the user of the trailer is obliged to perform all the maintenance and adjustment procedures defined by the Manufacturer.

  • Page 97: Initial Inspection Of Axle Brakes

    SECTION 5 Pronar T700M DANGER Do not use the trailer when brake system is out of order. 5.2.2 INITIAL INSPECTION OF AXLE BRAKES After purchasing trailer, the user is responsible for general checking of brake system of trailer axle. Inspection procedures Hitch trailer to tractor and place chocks under trailer wheel.
  • Page 98 Pronar T700M SECTION 5 brake shoes is smaller than the minimum value. Check brake shoe linings for wear through the inspection opening (2) – see Figure (5.1). Check brake shoe linings for wear: • every 6 months, • if brakes overheat, •...

  • Page 99: Checking Wheel Axle Bearings For Slackness

    SECTION 5 Pronar T700M 5.2.4 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS FIGURE 5.2 Lifting jack support point (1) wheel axle Preparation procedures Hitch trailer to tractor, immobilize tractor with parking brake. Park tractor and trailer on hard level ground. Tractor must be placed to drive forward.
  • Page 100 Pronar T700M SECTION 5 Checking wheel axle bearings for slackness Turning the wheel slowly in both directions check that movement is smooth and that the wheel rotates without excessive resistance. Turn the wheel so that it rotates very quickly, check that the bearing does not make any unusual sounds.

  • Page 101: Adjustment Of Axle Bearing Slackness

    SECTION 5 Pronar T700M DANGER Before commencing work, the user must read the instructions for lifting jack and adhere to the manufacturer's instructions. The lifting jack must be stably supported on the ground and so must the axle. Ensure that trailer shall not move during inspection of axle bearing slackness.

  • Page 102: Mounting And Dismounting Wheel, Inspection Of

    Pronar T700M SECTION 5 FIGURE 5.3 Adjustment of wheel axle bearings (1) hub cover, (2) castellated nut, (3) cotter pin The wheel should turn smoothly without stiffness or detectable resistance not originating from abrasion of brake shoes in brake drum. Adjustment of bearing slackness may only be conducted when the trailer is hitched to tractor and the load box is empty.
  • Page 103 SECTION 5 Pronar T700M Place a lifting jack and raise the trailer to a sufficient height so that the wheel to be replaced does not touch the ground. The lifting jack should have sufficient lifting capacity and should be technically reliable.
  • Page 104 Pronar T700M SECTION 5 FIGURE 5.4 Sequence of tightening nuts, axles with 10 M22x1.5 pins (1) - (10) sequence of nut tightening, (L) spanner length, (F) user weight ATTENTION Wheel nuts may not be tightened with impact wrench because of danger of exceeding permissible tightening torque, the consequence of which may be breaking the thread connection or breaking off the hub pin.

  • Page 105: Checking Air Pressure In Tyres, Evaluating

    SECTION 5 Pronar T700M Checking wheel tightening: • After the first use of trailer (one-time inspection). • Every 2 – 3 hours of trailer travel (during the first month of trailer use). • Every 30 hours of trailer travel. The above actions should be repeated individually if a wheel has been removed from the wheel axle.

  • Page 106: Adjustment Of Mechanical Brakes

    Pronar T700M SECTION 5 Checking air pressure in tyres and visual inspection of steel wheels: • every 1 month of use, • if needed. 5.2.8 ADJUSTMENT OF MECHANICAL BRAKES Considerable wear of brake shoe linings results in increased brake cylinder rod stroke and worse braking efficiency.
  • Page 107 SECTION 5 Pronar T700M TABLE 5.2 Position of fork pin in expander arm SINGLE CONDUIT OR DOUBLE CONDUIT HYDRAULIC DOUBLE CONDUIT PNEUMATIC BRAKE SYSTEM PNEUMATIC SYSTEM SYSTEM WITH ALB. TYRES Pin position [mm] Pin position [mm] Pin position [mm] Rear...
  • Page 108 Pronar T700M SECTION 5 FIGURE 5.5 Adjustment of axle mechanical brakes (1) expander arm, (2) expander shaft, (3) adjustment bolt, (4) pneumatic cylinder, (5) cylinder piston rod, (6) cylinder fork, (7) cylinder pin ATTENTION The positions for fixing the brake cylinder in the bracket openings and the brake cylinder pin in the expander arm are determined by the Manufacturer and must not be changed.
  • Page 109 SECTION 5 Pronar T700M Secure the trailer against moving by placing wheel chocks. FIGURE 5.6 Principle of brake adjustment (1) cylinder piston rod, (2) brake cylinder membrane, (3) expander arm, (4) adjustment bolt, (5) cylinder fork, (6) fork pin, (7) brake cylinder bracket, (A) mark on the cylinder piston rod at...
  • Page 110 Pronar T700M SECTION 5 Dismantle brake cylinder fork pin (6). Remember or mark the original position of pin (6) – figure (5.6), brake cylinder fork (5) in expander arm opening (3). Check if the brake cylinder piston rod moves freely and within the whole nominal range.

  • Page 111: Replacement Of Parking Brake Cable And

    SECTION 5 Pronar T700M 5.2.9 REPLACEMENT OF PARKING BRAKE CABLE AND ADJUSTMENT OF CABLE TENSION Proper operation of the parking brake is dependent on the effectiveness of the front axle brake and the correct brake cable tension. FIGURE 5.7 Adjustment of parking brake cable tension...
  • Page 112 Pronar T700M SECTION 5 Remove the pins of the lever (4) and crank mechanism (1), remove the shackle (6). Dismantle handbrake cables (2) and (3). Clean parking brake components, lubricate parking brake crank mechanism and pins of cable guide rollers.

  • Page 113: Pneumatic System Maintenance

    SECTION 5 Pronar T700M Tighten cable and tighten clamps. Length of parking brake cable (2) should be so selected that at total release of working and parking brake the cables would be loose and hanging by 1 - 2 cm compared to fully tensioned cables.

  • Page 114: Checking Air Tightness And Visual Inspection Of

    Pronar T700M SECTION 5 • cleaning and maintaining pneumatic conduit connections, • replacement of the pneumatic conduit. DANGER Do not use the trailer when brake system is out of order. 5.3.2 CHECKING AIR TIGHTNESS AND VISUAL INSPECTION OF PNEUMATIC SYSTEM Checking air tightness of pneumatic system Hitch trailer to tractor.
  • Page 115 SECTION 5 Pronar T700M Check system tightness: • after travelling the first 1,000 km, • each time after making repairs or changing system components, • annually. Visual inspection of the system During tightness inspection attention should additionally be given to technical condition and degree of cleanness of the system components.

  • Page 116: Cleaning The Air Filters

    Pronar T700M SECTION 5 5.3.3 CLEANING THE AIR FILTERS FIGURE 5.9 Air filter (1) securing slide lock, (2) air filter cover DANGER Before proceeding to dismantle filter, reduce pressure in supply conduit. While dismounting the filter slide gate, hold the cover with the other hand. Stand away from filter cover vertical direction.

  • Page 117: Draining Water From Air Tank

    SECTION 5 Pronar T700M Hold the filter cover (2) with the other hand. After removing slide lock, the cover is pushed off by the spring located in the filter housing. The filter element and the filter body should be carefully cleaned and blown through with compressed air.

  • Page 118: Cleaning The Drain Valve

    Pronar T700M SECTION 5 FIGURE 5.10 Draining water from air tank (1) drain valve, (2) air tank 5.3.5 CLEANING THE DRAIN VALVE DANGER Release air from the air tank before dismantling drain valve. Scope of maintenance activities Completely reduce pressure in air tank.

  • Page 119: Cleaning And Maintaining Pneumatic Conduit

    SECTION 5 Pronar T700M Change copper seal. Screw in valve, fill tank with air and check tank tightness. Cleaning the valve: • every 12 months (before winter period). 5.3.6 CLEANING AND MAINTAINING PNEUMATIC CONDUIT CONNECTIONS AND PNEUMATIC SOCKETS DANGER Unreliable and dirty trailer connections may cause unreliability and faulty functioning of braking system.
  • Page 120 Pronar T700M SECTION 5 Push-in fittings are used for connecting conduits with pneumatic system components. The fittings enable simple, fast and tight connection by pushing the conduits in. If leaks appear at connections, the user may tighten the fitting by himself using a tightening torque according to table (5.3).

  • Page 121: Hydraulic System Maintenance

    SECTION 5 Pronar T700M 5.4 HYDRAULIC SYSTEM MAINTENANCE 5.4.1 PRELIMINARY INFORMATION Work connected with the repair, change or regeneration of hydraulic system components (hydraulic cylinders, valves etc.) should be entrusted to specialist establishments, having the appropriate technology and qualifications for this type of work.

  • Page 122: Checking Technical Condition Of Hydraulic

    Pronar T700M SECTION 5 Check hydraulic cylinders and conduits for tightness. If oil leak is detected on hydraulic cylinder body, ascertain origin of leak. Inspect seals when hydraulic cylinder is completely extended. Minimum leaks are permissible with symptoms of "sweating", however in the event of noticing leaks in the form of "droplets" stop using the trailer until faults are remedied.
  • Page 123 SECTION 5 Pronar T700M 5.5 MAINTENANCE OF ELECTRICAL SYSTEM AND WARNING ELEMENTS 5.5.1 PRELIMINARY INFORMATION Work connected with the repair, change or regeneration of electrical system components should be entrusted to specialist establishments, having the appropriate technology and qualifications for this type of work.
  • Page 124 Pronar T700M SECTION 5 Before driving off, make certain that all lamps and reflectors are clean. 5.5.2 REPLACEMENT OF BULBS If the trailer is equipped with rear lamps with bulbs, it may be necessary to change the bulbs. Compatible bulbs are shown in table (5.4). All light lenses are secured by screws and it is not necessary to dismantle whole lamp or trailer subassemblies.
  • Page 125 SECTION 5 Pronar T700M 5.6 MAINTENANCE OF SUSPENSION SYSTEM FIGURE 5.12 Mechanical suspension system maintenance (1) suspension spring, (2) U bolt, (A) U bolt nuts, (B) bolt and nut connections of the suspension system, (C) mounting of lateral control rods, (D) suspension spring mounting TABLE 5.5...
  • Page 126 Pronar T700M SECTION 5 FREQUENCY MAINTENANCE ACTIVITIES Tighten the fixing of adjustable lateral control rods – figure (5.12) item C. If the bolts are loose, the length of rods may be wrong. Confirm that the distance between the axles on the right side and the left side of the trailer is the same.
  • Page 127 SECTION 5 Pronar T700M ATTENTION Bolt and nut connections of the trailer's suspension system should be tightened under load. • If the trailer is operated in severe conditions or is operated intensively, the maintenance activities should be performed more frequently.
  • Page 128 Pronar T700M SECTION 5 TABLE 5.6 Trailer lubrication schedule ITEM LUBRICATION POINT Wheel hub bearing Drawbar eye Expander shaft sleeve Parabolic leaf springs Socket for installation of tipping ram and cylinder suspension Tipping cylinder ball bearing Parking brake mechanism Leaf spring sliding surface...
  • Page 129 SECTION 5 Pronar T700M ITEM LUBRICATION POINT Upper bearing of tailgate cylinder Slide gate guide Chute string pin Tailgate leaf guide roller Stub axle pin Brake expander arm Lubrication periods – M months, D – days TABLE 5.7 Recommended lubricants...
  • Page 130 Pronar T700M SECTION 5 FIGURE 5.14 Trailer's lubrication points 5.36...
  • Page 131 SECTION 5 Pronar T700M FIGURE 5.15 Trailer's lubrication points Change of grease in hub bearings should be entrusted to specialised service points, equipped with the appropriate tools. According to the recommendations of the axle Manufacturer, dismantle the entire hub, remove the bearing and individual sealing rings. After careful washing and inspection, mount lubricated elements.
  • Page 132 Pronar T700M SECTION 5 Empty grease or oil containers should be disposed of according to the recommendations of the lubricant Manufacturer. During trailer operation, the user is obliged to observe lubrication instructions according to attached lubrication schedule. 5.8 CONSUMABLES 5.8.1 HYDRAULIC OIL Always adhere to the principle that the oil in the trailer hydraulic system and in the tractor hydraulic system are of the same type.
  • Page 133 SECTION 5 Pronar T700M oil with skin wash the place of contact with water and soap. Do NOT apply organic solvents (petrol, kerosene). Contaminated clothing should be changed to prevent access of oil to skin. In the event of contact of oil with eye, rinse with large quantity of water and in the event of the occurrence of irritation consult a doctor.
  • Page 134 Pronar T700M SECTION 5 • Using pressure washer increases washing effectiveness, but particular care must be taken during work. During washing, washer nozzle may not be closer than 50 cm from the surface being cleaned. • Water temperature should not exceed 55 •...
  • Page 135 SECTION 5 Pronar T700M • After completed washing wait until the trailer is dry and then grease all inspection points according to recommendations. Remove excess oil or grease with a dry cloth. • Observe environmental protection principles and wash trailer in a place designed for this purpose.
  • Page 136 Pronar T700M SECTION 5 air pressure in tyres should be inspected from time to time and, if necessary, pressure should be increased to the appropriate value. • If trailer is equipped with tarpaulin cover, it should be carefully washed and dried.
  • Page 137 SECTION 5 Pronar T700M FIGURE 5.16 Bolt with metric thread (1) strength class, (d) thread diameter 5.12 ADJUSTMENT OF DRAWBAR POSITION Location of the drawbar should be selected individually depending on the height of the hitch on the tractor that will pull the trailer. If possible, we recommend adjusting the tractor hitch so that the trailer drawbar is positioned horizontally while driving on a flat terrain.
  • Page 138 Pronar T700M SECTION 5 FIGURE 5.17 Adjusting the drawbar height (1) drawbar, (2) front beam, (3) drawbar mounting plate (4) spring rocker arm, (5) rocker arm lug, (6) rocker arm lug securing bolts (7) rocker arm pin remove the rocker arm lug (5) by loosening the mounting bolts (6) on the...
  • Page 139 SECTION 5 Pronar T700M 5.13 TROUBLESHOOTING TABLE 5.10 Troubleshooting FAULT CAUSE REMEDY Brake system pneumatic Connect brake conduits (applies conduits not connected to pneumatic systems) Applied parking brake Release parking brake. Damaged pneumatic Replace. Problem with moving off system connection conduits...
  • Page 140 Pronar T700M SECTION 5 FAULT CAUSE REMEDY Insufficient tractor hydraulic pump output, tractor Check tractor hydraulic pump. hydraulic pump is damaged Check cylinder piston rod (bending, corrosion), check Damaged or contaminated cylinder for tightness (cylinder cylinder piston rod seal), if necessary, repair or replace the cylinder.
  • Page 141 NOTES …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 142 …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 143 ANNEX A Trailer Pronar T700M wheel dimensions TYRE DIMENSIONS WHEEL RIM SIZE Wheel 550 / 60- 22,5 171A8 Wheel rim 16.00x22.5; ET=0 Wheel 445 / 65 R22,5 Wheel rim 14.00x22.5; ET=0 Wheel 560 / 60- 22,5 16PR 171A8 Wheel rim 16.00x22.5; ET=0 Wheel 600/50R22,5 170A8 Wheel rim 20.00x22.5;...
  • Page 145 ANNEX B Reference list of oils for the hydraulic steering system. TOTAL Equivis ZS 22 ELF Hydrelf 22 SHELL Tellus T22 TEXACO Rando HDZ 22 BP Energol SHF 22 ESSO Univis N22 AGIP Arnica 22...
