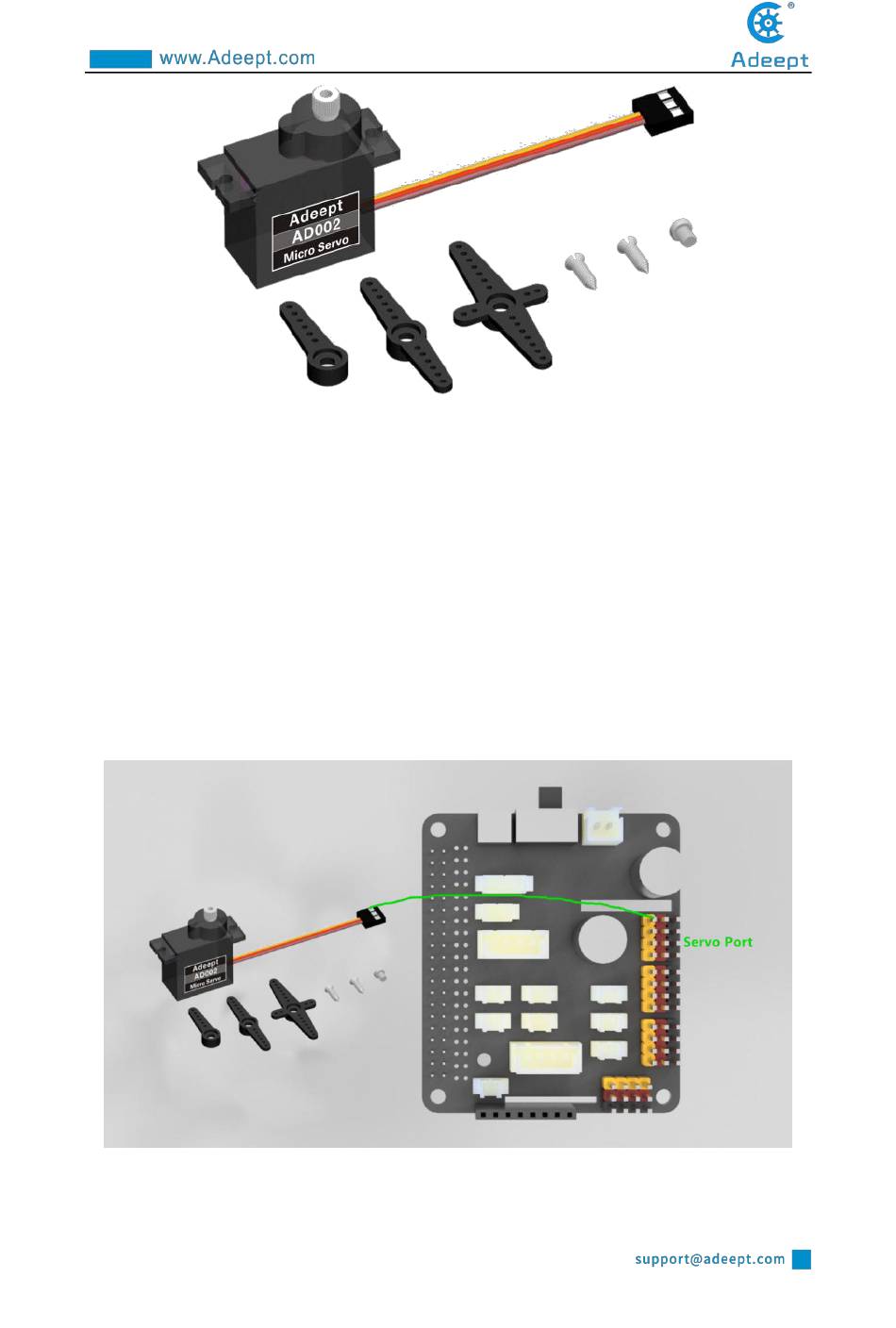

4.3 Wiring diagram (Circuit diagram)
When the 180°Servo module is in use, it needs to be connected to the servo
interface on the RobotHAT driver board. The yellow wire is connected to the yellow
pin, the red wire is connected to the red pin, and the brown wire is connected to black
pin,as shown below:
