9.4.2 Robotic arm assembly
note:
1. When installing the servo, the gear of the servo should be in the middle of the servo
rotation range.
1. 2. After installing the software in the Raspberry Pi, the Raspberry Pi will
automatically run the robot product program when the Raspberry Pi is turned on.
After powering on the servo, the drive board will automatically place the servo in the
middle position.

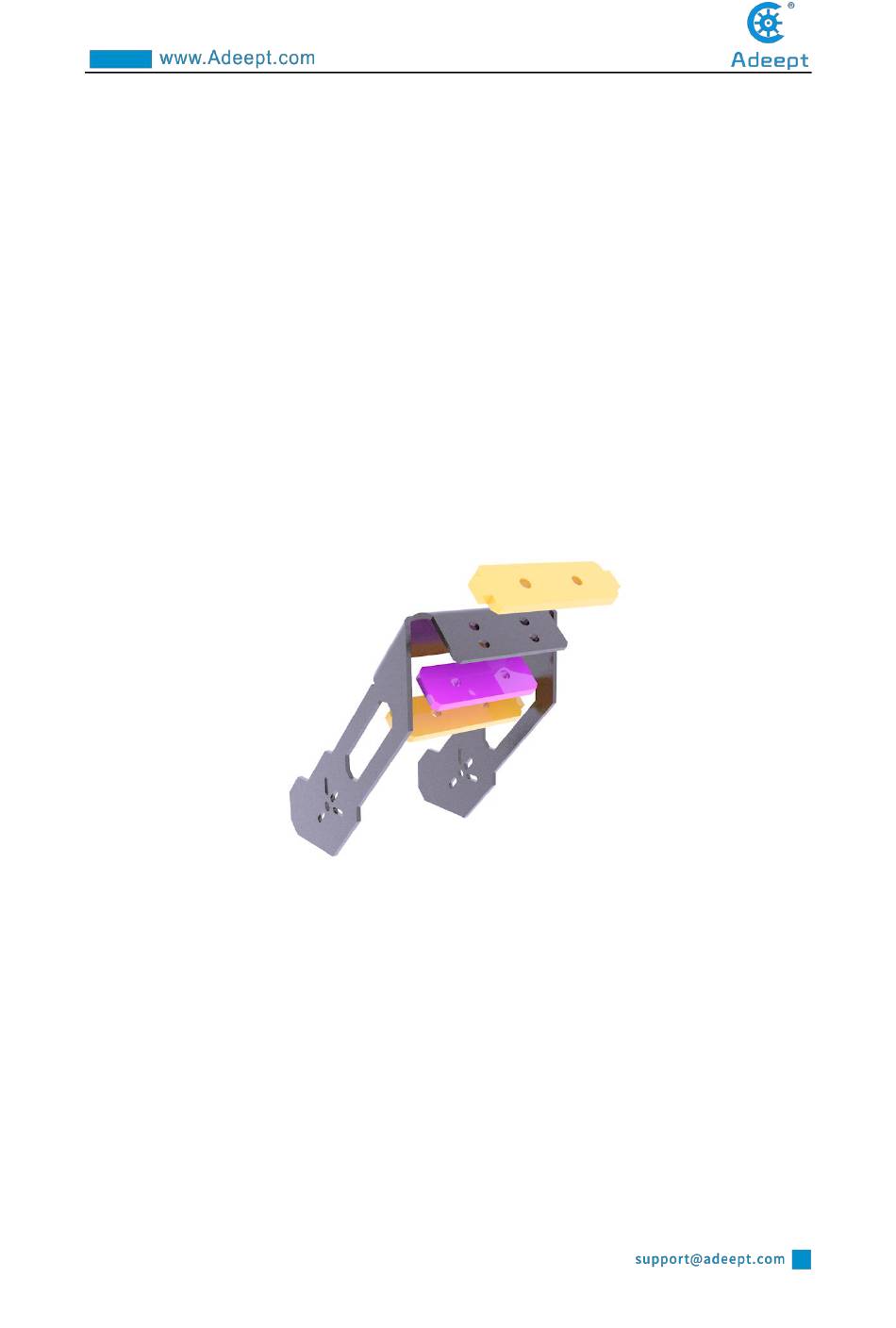

Use two M3X16 screws and two M3 nuts to fix the three acrylic panels shown above
on the aluminum alloy base of the robotic arm.
