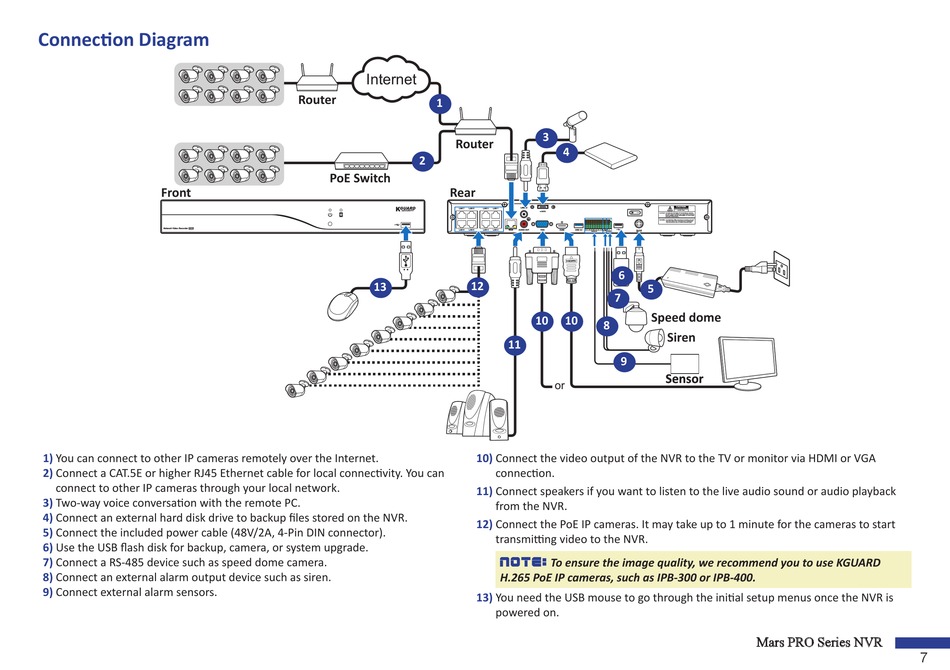

Connection Diagram
Front
Network Video Recorder 32CH
1)
You can connect to other IP cameras remotely over the Internet.
2)
Connect a CAT.5E or higher RJ45 Ethernet cable for local connectivity. You can
connect to other IP cameras through your local network.
3) Two-way voice conversation with the remote PC.
4) Connect an external hard disk drive to backup files stored on the NVR.
5) Connect the included power cable (48V/2A, 4-Pin DIN connector).
6) Use the USB flash disk for backup, camera, or system upgrade.
7) Connect a RS-485 device such as speed dome camera.
8) Connect an external alarm output device such as siren.
9) Connect external alarm sensors.
Internet
Router
1
Router
2
PoE Switch
Rear
LAN 7 LAN 5
LAN 8 LAN 6
13 12
10)
11)
12)
13)
3
4
LINE IN
LAN 3 LAN 1
e-SATA
LAN 4 LAN 2 WAN AUDIO OUT VGA HDMI USB 3.0 8 7 6 5 G 4 3 2 1 G
ALARM
SENSOR RS485 48V
6
5
7
Speed dome
10 10
8
11
9
or
Connect the video output of the NVR to the TV or monitor via HDMI or VGA
connection.
Connect speakers if you want to listen to the live audio sound or audio playback
from the NVR.
Connect the PoE IP cameras. It may take up to 1 minute for the cameras to start
transmitting video to the NVR.
To ensure the image quality, we recommend you to use KGUARD
NOTE:
H.265 PoE IP cameras, such as IPB-300 or IPB-400.
You need the USB mouse to go through the initial setup menus once the NVR is
powered on.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Siren
Sensor Sensor
Mars PRO Series NVR
