Product Overview
Network Video Recorder 32CH
E F G H I J
LINE IN
LAN 7 LAN 5 LAN 3 LAN 1
e-SATA
LAN 8 LAN 6 LAN 4 LAN 2 WAN AUDIO OUT VGA
Mars PRO Series NVR
6

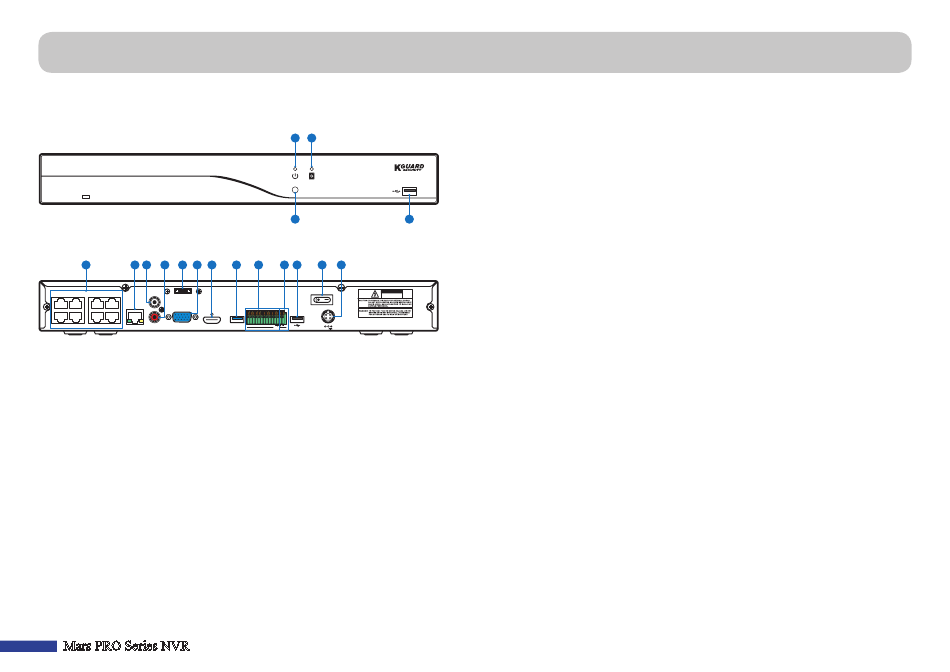

Making the Connections

Front View
A B
C
Rear View
K L M N D O P
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
HDMI USB 3.0 8 7 6 5 G 4 3 2 1 G
ALARM
SENSOR RS485 48V
A) Power LED - This light will turn on when the power is turned on.
B) HDD LED
- This light will flash when the hard drive is working.
C) IR Sensor - For receiving the infrared signal from the remote control.
D) USB - Connect this to a USB mouse, flash disk, and other external storage
drive.
D
E) PoE - This is where you connect the IP cameras. Integrated PoE (Power Over
Ethernet) ports provide power to cameras and video connection to NVR.
F) WAN
- Connect this to a network using the router or network switch. In addition
to connecting to a network, you can also access the local or remote ONVIF IP
cameras.
G) Line In - For two-way audio input (Line Input).
H) Audio Out - For connecting speakers.
I) e-SATA - Connect this to an external hard drive to backup files stored on the
NVR.
J) VGA
- Connect this to your TV or a monitor with VGA input.
K) HDMI - Connect this to your digital TV or monitor with HDMI input.
L) USB 3.0 - Connect this to a USB flash drive to backup recorded events.
M) Alarm and Sensor I/O block
N) RS-485 - This is where you connect a speed dome camera via RS-485.
O) Power switch - Press to turn the NVR on or off.
P) Power
- This is where you connect the power adapter (48V/2A, 4-Pin DIN
connector).
- Connect to external Sensors and Alarm devices.
