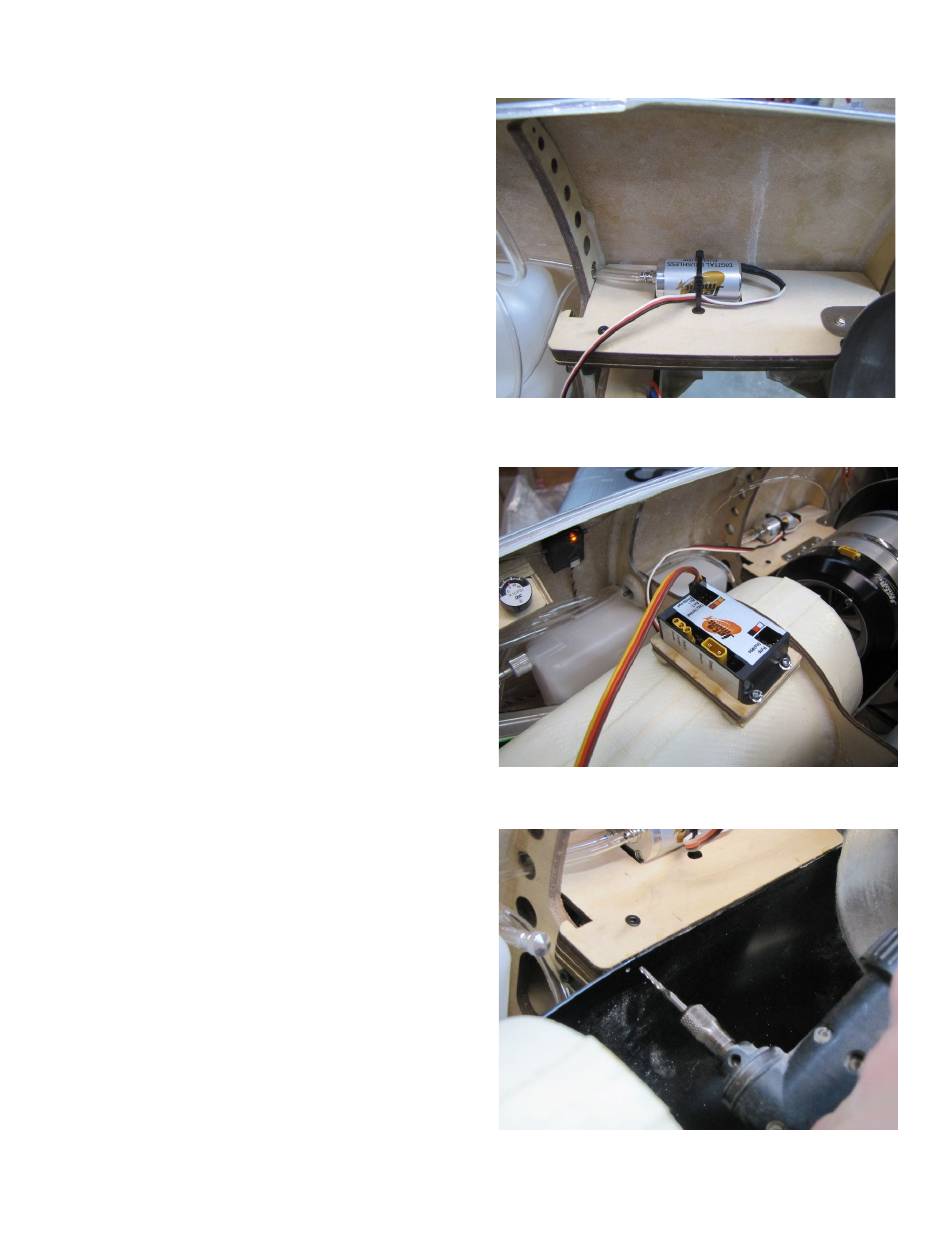

Turbine Installation
Fuel Pump Mount
The F-86 has (1) mounting spot for the pump
on either side of the engine for mounting your
fuel pump.
Note: Follow all of your Manufactures
recommended mounting instructions
for their components.
Also make sure to safety wire all fuel
pump connections.
ECU Mounting
On this particular Sabre we mounted the
ECU behind the Cockpit Tub. We used a
simple Ply Plate with some Tri Stock and
glued it to the inlet using BVM QT Poxy.
Note: All connections where made per
Turbine Manufactures instructions.
Heat Shield Mounting
The heat shield is centered in the opening
between the Bell Mouth and inlet. It is also
level to the top of the Turbine Rails. Drill
(4) 1/16
th
holes through the Heat Shield
into the Turbine Rails( 2) holes on each
side.
BVM ® 2020
F-86 Sabre
Assembly & Operation Manual
11
