TURBINE INSTALLATION

The Tailpipe is slightly long for smaller turbines, it may be necessary to trim the
Tailpipe.

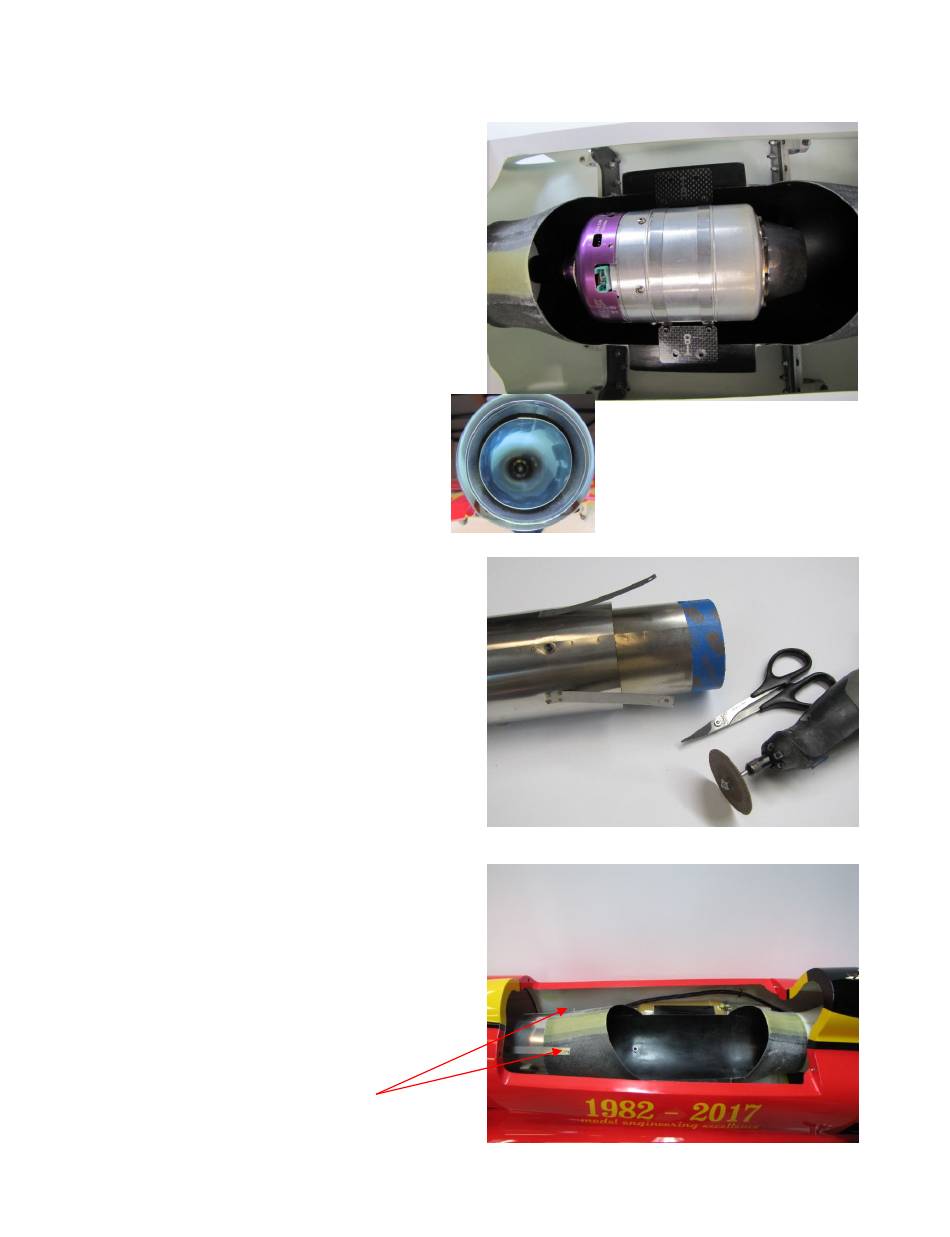

Center the engine in the Bypass to
determine if the tailpipe needs to be
shortened in the bypass area.
Sight down the tailpipe to ensure the
turbine is centered
Mark the location of the turbine mount
holes and measure the distance of
the turbine exhaust and the inner
tailpipe.
Follow your turbine manufacture manual
for the recommended position from the
tail pipe to determine if the tailpipe
needs trimming..
After determining how much to shorten
the inner pipe, define the amount to be
removed with tape. Use the curved
scissors for the rough cut and a fiber
reinforced cut-off wheel as shown to
accomplish the task.

Bypass Removal

Remove the Bypass by removing the (2)
440x 3/8 SHCS that secure the tailpipe to
the bypass.
Slide the Tailpipe towards the aft of the
fuselage.
