Multi-Smart™ Readers Installation & User Guide
6.3. Standby Mode
In standby mode, two LED bars will be in steady RED condition.
EM 125 kHz and CSN 13.56 MHz Credential Read
When a 125 kHz credential or a 13.56 MHz credential is detected by the reader, both LED bars will flash GREEN for
250 ms, and the reader will sound short beep for 300 ms. This indicates a successful card read and transfer on the
Wiegand port. Then, the reader will return to standby mode and the right light bar stays solid RED.

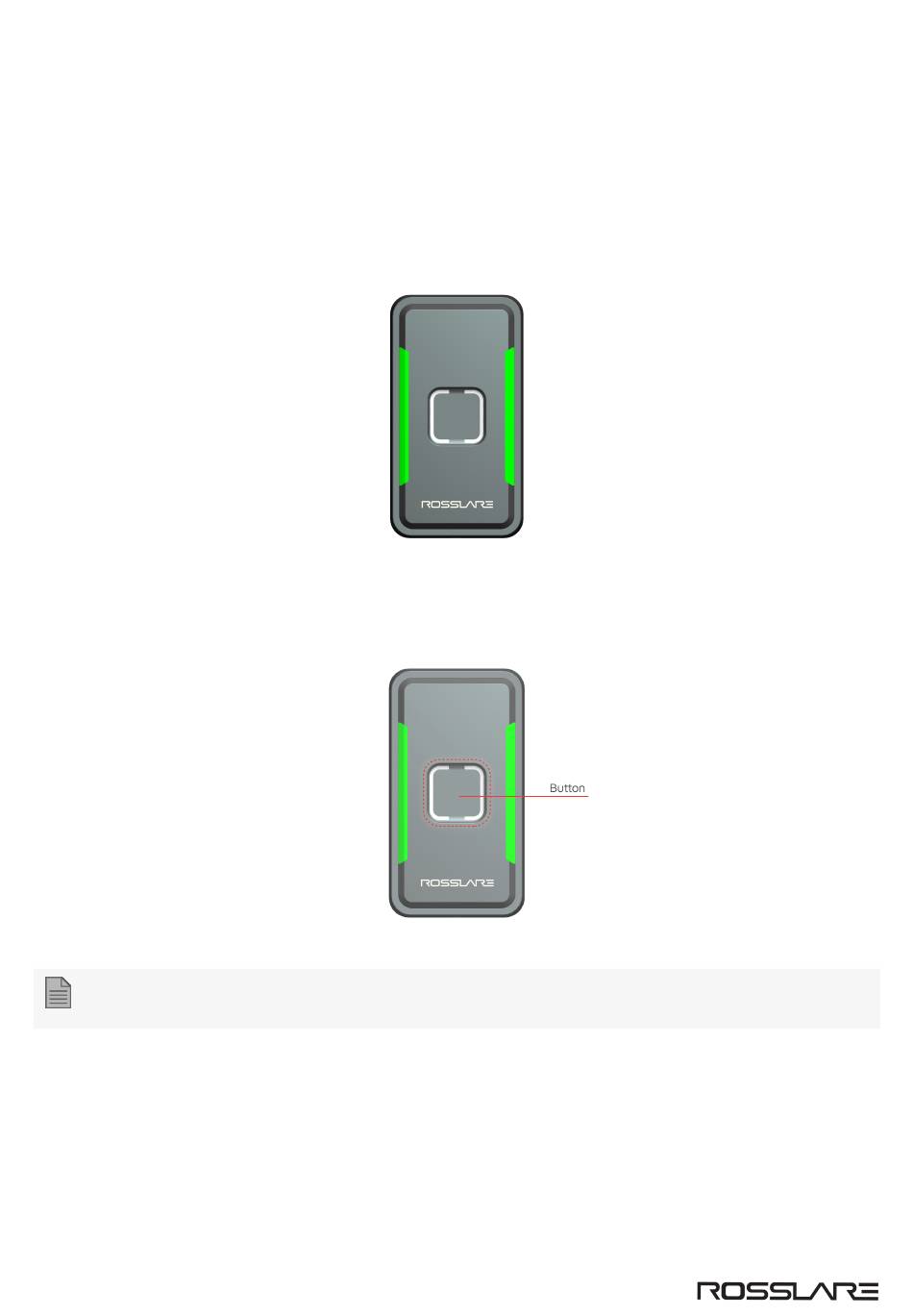

7. Touch Button Operation

The General Purpose Button is located in the center of the reader.
Connect the pink wire to an available input of the controller.
The general purpose button is used to operate a bell or do other functions.
The general purpose has a LED. The LED comes on when the general purpose button is pushed. The LED stays on
until the button is released.
