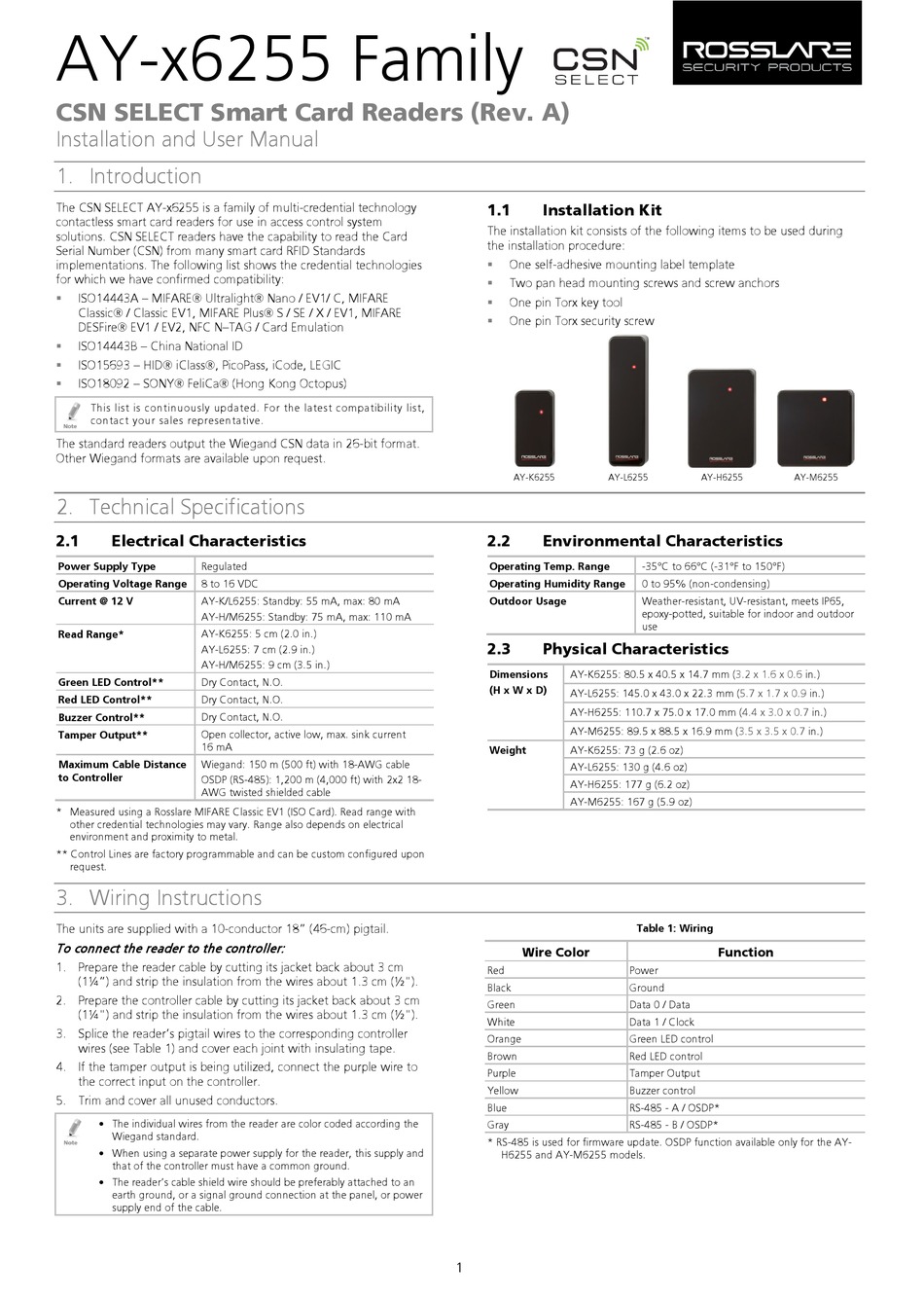

AY-x6255 Family
CSN SELECT Smart Card Readers (Rev. A)
Installation and User Manual

1. Introduction

The CSN SELECT AY-x6255 is a family of multi-credential technology
contactless smart card readers for use in access control system
solutions. CSN SELECT readers have the capability to read the Card
Serial Number (CSN) from many smart card RFID Standards
implementations. The following list shows the credential technologies
for which we have confirmed compatibility:
 ISO14443A – MIFARE® Ultralight® Nano / EV1/ C, MIFARE
Classic® / Classic EV1, MIFARE Plus® S / SE / X / EV1, MIFARE
DESFire® EV1 / EV2, NFC N–TAG / Card Emulation
ISO14443B – China National ID

 ISO15693 – HID® iClass®, PicoPass, iCode, LEGIC
ISO18092 – SONY® FeliCa® (Hong Kong Octopus)

This list is continuously updated. For the latest compatibility list,
contact your sales representative.
The standard readers output the Wiegand CSN data in 26-bit format.
Other Wiegand formats are available upon request.

2. Technical Specifications

2.1

Electrical Characteristics

Power Supply Type Regulated
Operating Voltage Range 8 to 16 VDC
Current @ 12 V AY-K/L6255: Standby: 55 mA, max: 80 mA
AY-H/M6255: Standby: 75 mA, max: 110 mA
Read Range* AY-K6255: 5 cm (2.0 in.)
AY-L6255: 7 cm (2.9 in.)
AY-H/M6255: 9 cm (3.5 in.)
Green LED Control** Dry Contact, N.O.
Red LED Control** Dry Contact, N.O.
Buzzer Control** Dry Contact, N.O.
Tamper Output** Open collector, active low, max. sink current
16 mA
Maximum Cable Distance Wiegand: 150 m (500 ft) with 18-AWG cable
to Controller
OSDP (RS-485): 1,200 m (4,000 ft) with 2x2 18-
AWG twisted shielded cable
* Measured using a Rosslare MIFARE Classic EV1 (ISO Card). Read range with
other credential technologies may vary. Range also depends on electrical
environment and proximity to metal.
** Control Lines are factory programmable and can be custom configured upon
request.

3. Wiring Instructions

The units are supplied with a 10-conductor 18" (46-cm) pigtail.
To connect the reader to the controller:
1. Prepare the reader cable by cutting its jacket back about 3 cm
(1¼") and strip the insulation from the wires about 1.3 cm (½").
2. Prepare the controller cable by cutting its jacket back about 3 cm
(1¼") and strip the insulation from the wires about 1.3 cm (½").
3. Splice the reader's pigtail wires to the corresponding controller
wires (see Table 1) and cover each joint with insulating tape.
4. If the tamper output is being utilized, connect the purple wire to
the correct input on the controller.
5. Trim and cover all unused conductors.
• The individual wires from the reader are color coded according the
Wiegand standard.
• When using a separate power supply for the reader, this supply and
that of the controller must have a common ground.
• The reader's cable shield wire should be preferably attached to an
earth ground, or a signal ground connection at the panel, or power
supply end of the cable.
1.1

Installation Kit

The installation kit consists of the following items to be used during
the installation procedure:
 One self-adhesive mounting label template
 Two pan head mounting screws and screw anchors
 One pin Torx key tool
 One pin Torx security screw
AY-K6255 AY-L6255
2.2

Environmental Characteristics

Operating Temp. Range
Operating Humidity Range
Outdoor Usage
2.3

Physical Characteristics

Dimensions AY-K6255: 80.5 x 40.5 x 14.7 mm
(H x W x D)
AY-L6255: 145.0 x 43.0 x 22.3 mm
AY-H6255: 110.7 x 75.0 x 17.0 mm
AY-M6255: 89.5 x 88.5 x 16.9 mm
Weight
AY-K6255: 73 g (2.6 oz)
AY-L6255: 130 g (4.6 oz)
AY-H6255: 177 g (6.2 oz)
AY-M6255: 167 g (5.9 oz)
Wire Color
Red
Black
Green
White
Orange
Brown
Purple
Yellow
Blue
Gray
* RS-485 is used for firmware update. OSDP function available only for the AY-
H6255 and AY-M6255 models.
1
AY-H6255 AY-M6255
-35°C to 66°C (-31°F to 150°F)
0 to 95% (non-condensing)
Weather-resistant, UV-resistant, meets IP65,
epoxy-potted, suitable for indoor and outdoor
use
(3.2 x 1.6 x 0.6
(5.7 x 1.7 x 0.9
(4.4 x 3.0 x 0.7
(3.5 x 3.5 x 0.7
Table 1: Wiring
Function
Power
Ground
Data 0 / Data
Data 1 / Clock
Green LED control
Red LED control
Tamper Output
Buzzer control
RS-485 - A / OSDP*
RS-485 - B / OSDP*
in.)
in.)
in.)
in.)
