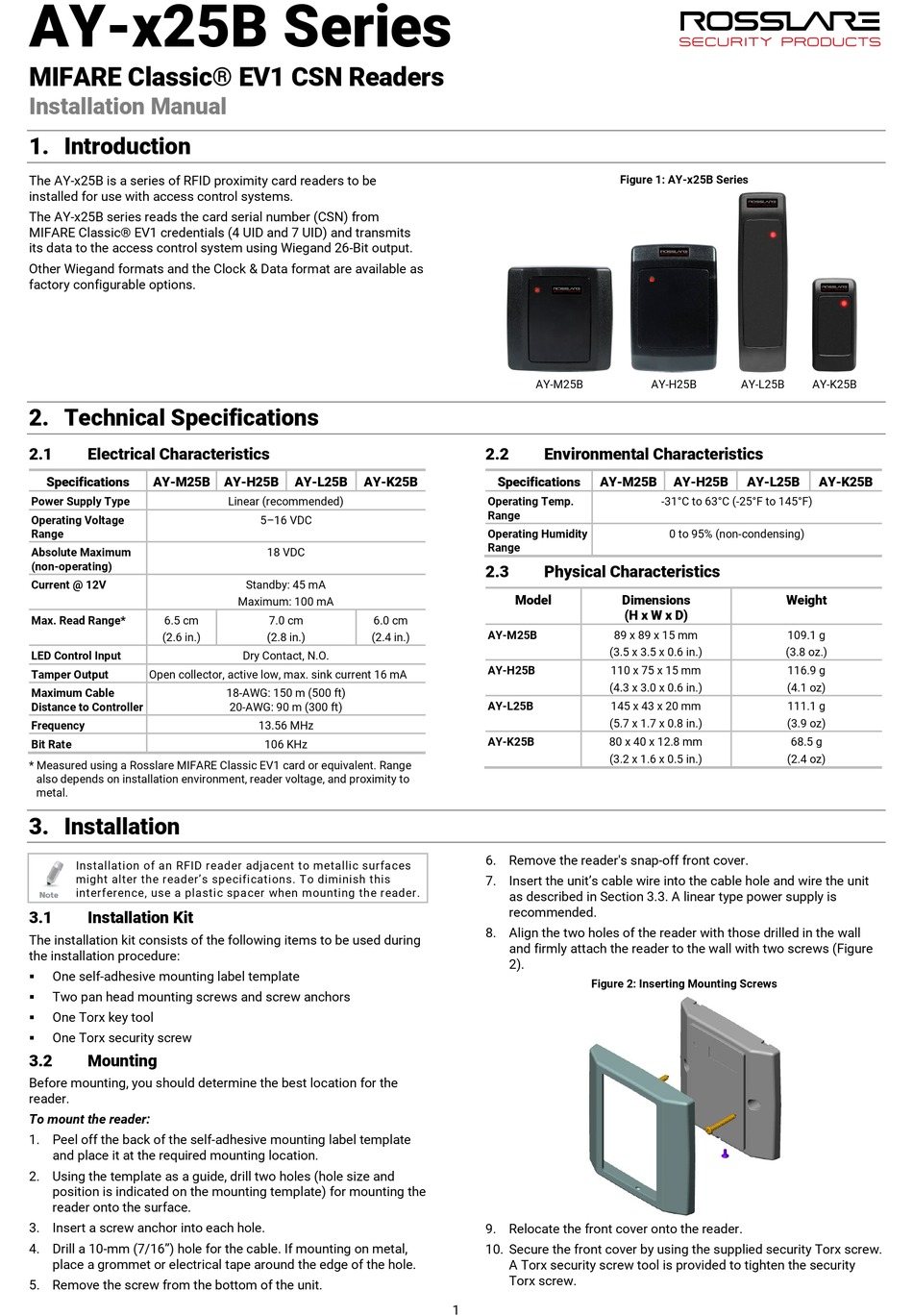

Rosslare MIFARE Classic AY-25B Series Installation Manual

AY-x25B Series
MIFARE Classic® EV1 CSN Readers
Installation Manual
1. Introduction
The AY-x25B is a series of RFID proximity card readers to be
installed for use with access control systems.
The AY-x25B series reads the card serial number (CSN) from
MIFARE Classic® EV1 credentials (4 UID and 7 UID) and transmits
its data to the access control system using Wiegand 26-Bit output.
Other Wiegand formats and the Clock & Data format are available as
factory configurable options.
2. Technical Specifications
2.1 Electrical Characteristics
Specifications AY-M25B AY-H25B
Power Supply Type
Operating Voltage
Range
Absolute Maximum
(non-operating)
Current @ 12V
Max. Read Range* 6.5 cm
(2.6 in.)
LED Control Input
Tamper Output Open collector, active low, max. sink current 16 mA
Maximum Cable
Distance to Controller
Frequency
Bit Rate
* Measured using a Rosslare MIFARE Classic EV1 card or equivalent. Range
also depends on installation environment, reader voltage, and proximity to
metal.
3. Installation
Installation of an RFID reader adjacent to metallic surfaces
might alter the reader's specifications. To diminish this
interference, use a plastic spacer when mounting the reader.
3.1 Installation Kit
The installation kit consists of the following items to be used during
the installation procedure:
One self-adhesive mounting label template

Two pan head mounting screws and screw anchors

One Torx key tool

One Torx security screw

3.2 Mounting
Before mounting, you should determine the best location for the
reader.
To mount the reader:
1. Peel off the back of the self-adhesive mounting label template
and place it at the required mounting location.
2. Using the template as a guide, drill two holes (hole size and
position is indicated on the mounting template) for mounting the
reader onto the surface.
3. Insert a screw anchor into each hole.
4. Drill a 10-mm (7/16") hole for the cable. If mounting on metal,
place a grommet or electrical tape around the edge of the hole.
5. Remove the screw from the bottom of the unit.
AY-L25B AY-K25B
Linear (recommended)
5–16 VDC
18 VDC
Standby: 45 mA
Maximum: 100 mA
7.0 cm 6.0 cm
(2.8 in.) (2.4 in.)
Dry Contact, N.O.
18-AWG: 150 m (500 ft)
20-AWG: 90 m (300 ft)
13.56 MHz
106 KHz

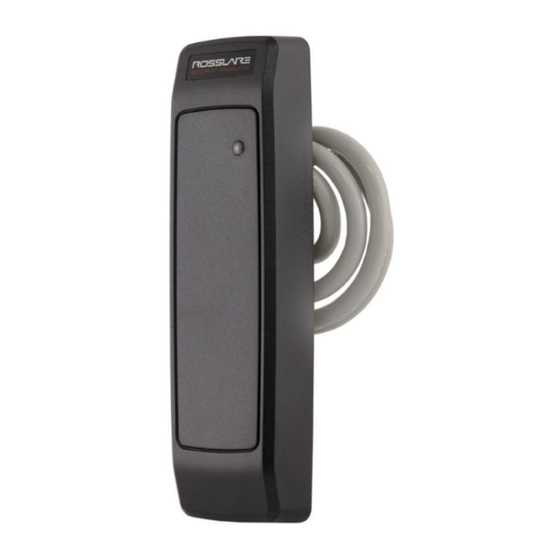

Figure 1: AY-x25B Series
AY-M25B
2.2 Environmental Characteristics
Specifications AY-M25B
Operating Temp.
Range
Operating Humidity
Range
2.3 Physical Characteristics
Model Dimensions
(H x W x D)
AY-M25B 89 x 89 x 15 mm
(3.5 x 3.5 x 0.6 in.)
AY-H25B 110 x 75 x 15 mm
(4.3 x 3.0 x 0.6 in.)
AY-L25B 145 x 43 x 20 mm
(5.7 x 1.7 x 0.8 in.)
AY-K25B 80 x 40 x 12.8 mm
(3.2 x 1.6 x 0.5 in.)
6. Remove the reader's snap-off front cover.
7. Insert the unit's cable wire into the cable hole and wire the unit
as described in Section 3.3. A linear type power supply is
recommended.
8. Align the two holes of the reader with those drilled in the wall
and firmly attach the reader to the wall with two screws (Figure
2).
Figure 2: Inserting Mounting Screws
9. Relocate the front cover onto the reader.
10. Secure the front cover by using the supplied security Torx screw.
A Torx security screw tool is provided to tighten the security
Torx screw.
1
AY-H25B AY-L25B AY-K25B
AY-H25B AY-L25B AY-K25B
-31°C to 63°C (-25°F to 145°F)
0 to 95% (non-condensing)
Weight
109.1 g
(3.8 oz.)
116.9 g
(4.1 oz)
111.1 g
(3.9 oz)
68.5 g
(2.4 oz)
