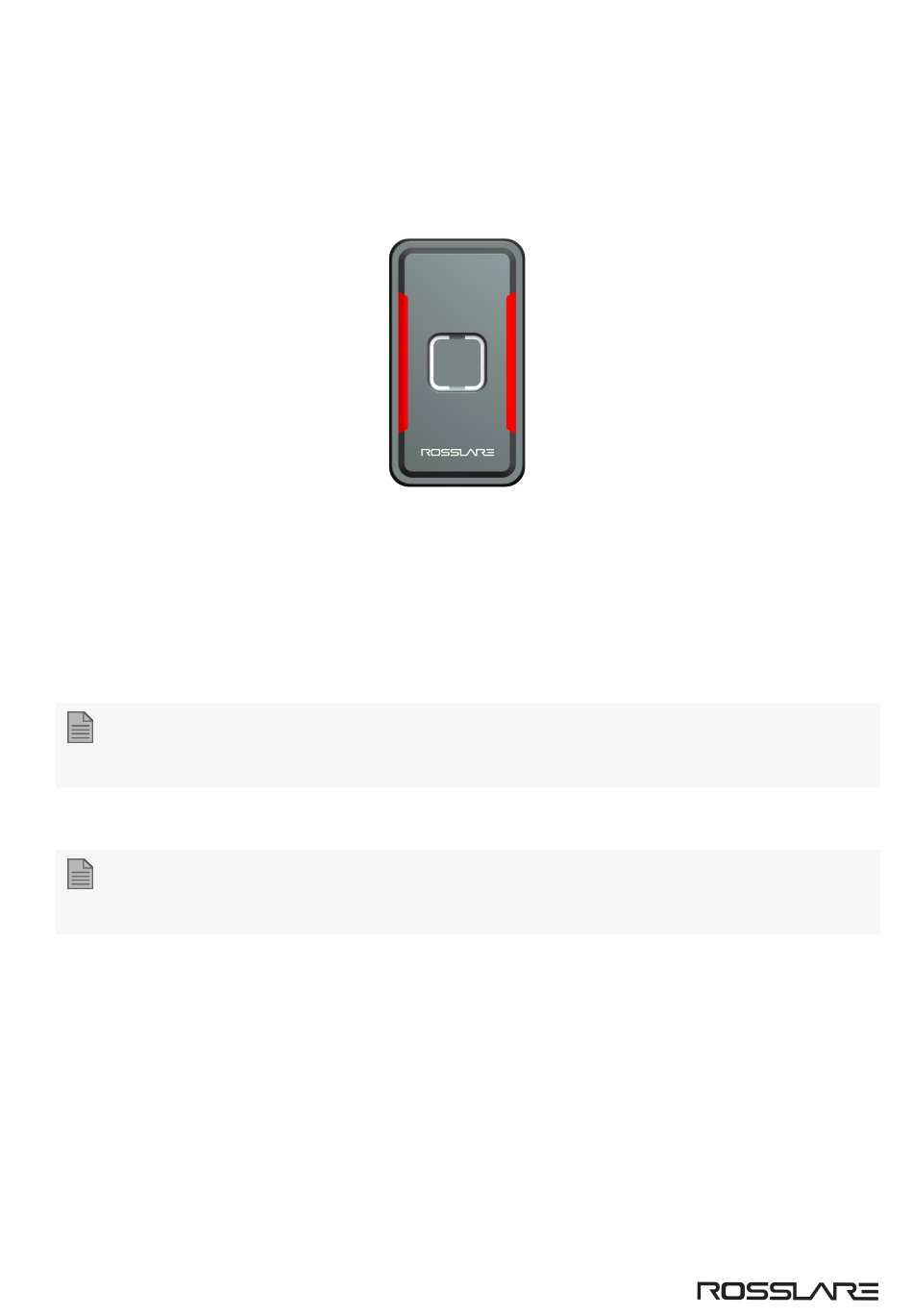

6. LED Operation
6.1. Normal Power Up
When power applied from OFF position, LED test will run for 1.5 sec. (cycle all LED colors of the RGB for 500 ms each
color in the following order: Red, Green, Blue), followed by 3 beeps.
6.2. Restore to Factory Defaults
The following procedure restores the reader to the factory version with the default settings.
1. Turn off the power to the reader.
2. Remove the reader from its mounted location to expose the tamper to light.
3. Connect the orange wire (green LED control) and yellow wire (Buzzer Control) to GND.
When the reset is complete, the LED will blink in the sequence green, yellow, green, yellow for two
seconds while the buzzer will operate.
4. Turn on the power to the reader and keep the orange wire and yellow wire to GND for four or more seconds.
When the restore to factory defaults procedure is complete, the reader it will have the factory firmware
version with the default settings.
