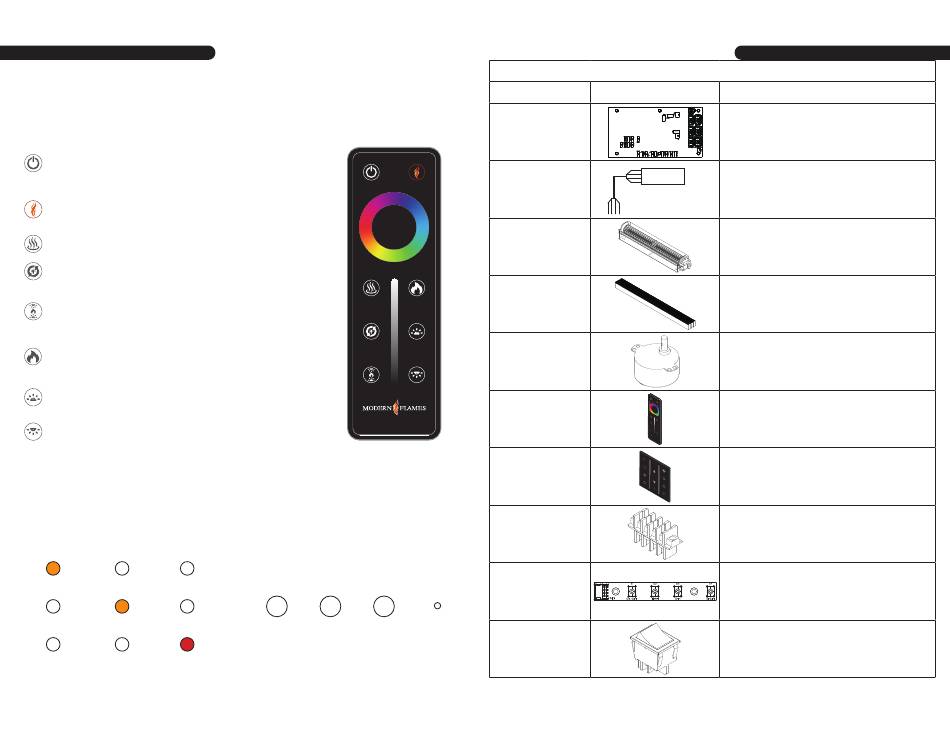

OPERATION

The unit has a main power switch just in front of the glass on the right hand side. A hand-held remote is
included.
This will cycle the machine on and off. Upon cycling
power on, the machine will return to the settings it had
Power
when it was cycled off.
If the fireplace is on, this button will act as a reset and
bring all colors back to the default Modern Flames
Reset
orange/yellow.
This will cycle the heater between high, low and off.
Heat
All zones of the fireplace will start the slow fade
Fade
between colors.
Pressing the sync button will change all the colors of
Sync the fireplace) Flame, Ember Bed and Downlight) to
match the current color of the flame setting.
This is a zone setting. Touching this button will allow
Flame you to change the color and brightness of the flame by
using the RGB wheel and brightness slider.
Ember This is a zone setting that controls the color and
Bed brightness of the ember bed.
This is a zone setting that controls the color and
Downlight
brightness of the downlight.
Pairing remote:
To pair remote, turn off the fire unit at the main power switch for 30 seconds. Hold the On/Off button on
the remote while flipping the main power switch back to on. When the fire unit powers up, the remote will
be paired.
Power indicator lights for wall switch as well
as upper right corner of the main unit
When the switch turns on, this orange pilot lamp
turns on. It shows the fire is energized.
The status light above shows that the power is on
and the heater is on low.
The status light above shows that the power is on
and the heater is on high.
OPERATION
Manual Controls
The unit has manual controls located next to the
power switch, just in front of the glass on the top
right side.
Power Heat Color
Turns unit Cycles Changes
on/off heat low/ fireplace
high/off color
ITEM
MF-PRO-PCB
MF-PRO-WIFI
MF-PRO-HF-230
MF-PRO-PTC
MFSM230
MF-PRO-RC
MF-PRO-WTC
MF-PRO-TB
MF-PRO-MTC
Reset
Resets
MFPS1
unit
11 12

MAINTENANCE

SERVICE PARTS

PHOTO DESCRIPTION
PRINTED CIRCUIT BOARD CONTROLS LOW
VOLTAGE AND HIGH VOLTAGE FUNCTIONS
AND TRANSFORMER
WIFI
WIFI BOARD
HEATER FAN 230 V
PTC HEATER 120/240 V 1500/3000 WATTS
SPINDLE MOTOR 230 V 50-60 HZ
PRO SERIES RF REMOTE CONTROL
OPTIONAL
WALL MOUNTED TOUCH CONTROL
ASSEMBLY
TERMINAL BLOCK 120/240 V
MANUAL TOUCH CONTROL BOARD
20 AMP POWER SWITCH
