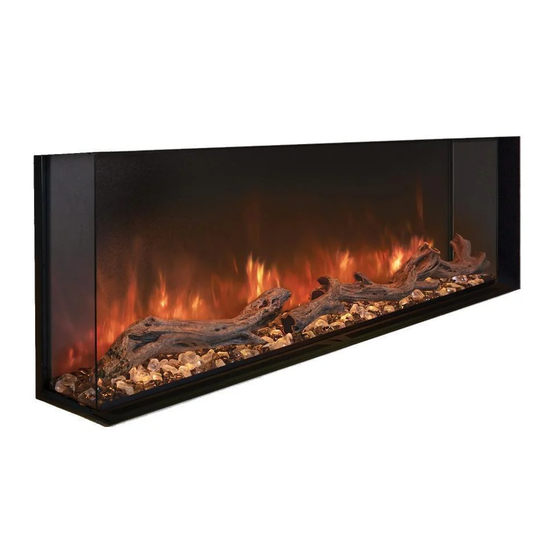

Landscape Pro Multi Electric Fireplace
Model#
LPM-8016V2
Approved for Indoor and Outdoor Use
Rated: 120VAC 60Hz (10,000 BTUs capable)
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so
WARNING
could result in fire, electric shock, or serious personal injury. Don't
spray water directly on to product. Clean with damp cloth or duster.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
AFFIX SERIAL NUMBER LABEL
HERE FOR FUTURE REFERENCE
LPM-4416V2
LPM-9616V2
Installation Manual
LPM-5616V2
LPM-12016V2
LPM-6816V2
07-00011 REV C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPM-4416V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Modern Flames LPM-4416V2

Summary of Contents for Modern Flames LPM-4416V2

  • Page 1 Landscape Pro Multi Electric Fireplace Model# LPM-4416V2 LPM-5616V2 LPM-6816V2 LPM-8016V2 LPM-9616V2 LPM-12016V2 Installation Manual Approved for Indoor and Outdoor Use Rated: 120VAC 60Hz (10,000 BTUs capable) Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so WARNING could result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all Instructions before installing or using the heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc.

  • Page 3: Consignes Importantes

    CONSIGNES IMPORTANTES ATTENTION Lors de l'utilisation d'appareils électriques, des précautions de base doivent toujours être suivies pour réduire les risques d'incendie, d'électrocution et de blessures, notamment les suivantes : 1. Lisez toutes les instructions avant d'installer ou d'utiliser le radiateur. 2.
  • Page 4 USER INSTRUCTIONS POWER DATA LPM-4414V2 LPM-5614V2 LPM-6814V2 LPM-8014V2 LPM-9614V2 LPM-12014V2 Volts/HZ Amps AC 120V AC 120V AC 120V AC 120V AC 120V AC 120V 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps Heater AC 120V AC 120V...

  • Page 5: Product Guide

    Model Viewing Area Firebox Dimensions Framing Dimensions LPM-4416V2 43 1/4" W x 15 7/8" H x 5 5/16" D 44 1/16" W x 24 7/8" H x 11 9/16" D 44 3/8" W x 25 1/4" H x 12" D...

  • Page 6: Parts And Hardware

    PARTS AND HARDWARE Bracket (1) Canyon (1) Fireplace (1) Owners Manual (6) Screws (1) Remote Driftwood Logs Set (2-4) L-Metal (Depend on Model) (1) Front Glass (2) Metal Side Panels (2) Side Glass (2) Suction Cups Mounting Brackets (1) Wall Mount Smoke Clear (1) 5-Piece Trim Kit...

  • Page 7: Installation

    INSTALLATION Select a suitable location that is away from drapes, furniture, and high traffic areas. NOTE: Follow all National and local electrical codes. This product includes a GLASS panel. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this fireplace.

  • Page 8: Built-In Installation

    BUILT-IN INSTALLATION 3 Sided Installation (Bay) 1. Prepare the framed opening according to the chart on page 4. *Provide appropriate dedicated circuit for hardwire install at the top right of framed opening. 2. Install L Metal mounting brackets to the top and bottom of the fireplace with supplied screws.
  • Page 9 BUILT-IN INSTALLATION Fully Recessed Installation (Left/Right Corner) 1. Follow steps from the 3-sided installation instructions. 2. Remove the corresponding drywall stops according to your installation (in the example, the drywall stops on the left end would be removed.) 3. Install the side glass then the corresponding side cover according to your installation (the side glass must be installed before the metal side cover.
  • Page 10 BUILT-IN INSTALLATION Fully Recessed Installation (Single Sided) 1. Follow steps from the 3 sided installation instructions. 2. Remove the drywall stops on both sides of the fire unit. 3. Install the side glass then side covers on both sides of the fire unit (the side glass must be installed before the metal side cover.
  • Page 11 BUILT-IN INSTALLATION Half Recessed Installation 1. This installation is optimized for a 2x4 framed wall. Prepare the framed opening according to the height and width of the chart on page 4. *Provide appropriate dedicated circuit for hardwire install at the top right of framed opening. 2.

  • Page 12: Outdoor Installation Requirements

    OUTDOOR INSTALLATION REQUIREMENTS The LPM Series electric fireplaces from Modern Flames LLC have been tested and approved for installation outdoors under a patio cover and away from direct water contact or direct sun light. Modern Flames LLC standard warranty applies if installed per instructions. All electrical wiring shall be to local building codes.
  • Page 13 OUTDOOR INSTALLATION REQUIREMENTS Side Protection: Side distance (SD) must be 50% (or more) of the height(H). If: H=6’ Then: SD=3’ minimum (6’ x 50%=3’) Note: H taken from bottom of fireplace. OVERHANG HEIGHT (H) SIDE DISTANCE SIDE DISTANCE (SD) (SD)

  • Page 14: Installing Media

    BUILT-IN INSTALLATION Suite Wall Mount & Recessed Cabinet Installation Follow the directions included with the Suite Wall Mount Accessory Kit. INSTALLING MEDIA PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF <INSERT COMPANY NAME HERE>. ANY REPRODUCTION IN PART OR AS A WHOL WITHOUT THE WRITTEN PERMISSION OF <INSERT COMPANY NAME HERE>...

  • Page 15: Log Placement

    LOG PLACEMENT #1 LOG #2 LOG #3 LOG #4 LOG #5 LOG #6 LOG #7 LOG #8 LOG #9 LOG #10 LOG #11 LOG #12 LOG #13 LOG #14 LOG #15 LOG LANDSCAPE PRO MULTI - LOG PLACEMENT 44" - 56" - 68" - 80" - 96" - 120" LPM 44"...

  • Page 16: Glass Installation

    GLASS INSTALLATION Installing Side Glass 1. The unit has 2 channels, one on the top and one on the bottom to hold the side glass. 2. Insert the glass at an angle in to the top channel. 3. Swing the bottom edge of the side glass in to the unit. See Figure 1.1.

  • Page 17: Hard Wiring

    L1 L2 HARD WIRING A qualified electrician must wire this fireplace to a dedicated 110 volt, 20 amp circuit. NOTE:A 20 Amp (or higher), 2-pole (for 10,000 BTU’s), breaker is required. The appliance must be electrically connected and grounded in accordance with local codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the current ANSI/NFPA 70 National Electrical Code in the USA.
  • Page 18 HARD WIRING 240 Volt Power (10,000 BTU’s): This fireplace is equipped with the ability to optionally wire with 240 volts, which will supply 10,000 BTU’s of heat. A qualifed electrician must wire this fireplace to a dedicated 220~240 volt, 20 amp, circuit. Note: There are 4 wires from the appliance junction box: white (neutral), black (power L1), red (power L2), and green/bare (ground) that are connected to 220V power source (circuit breaker panel).

  • Page 19: Remote Control Operation

    . If the fireplace is on, this button will act as a Home reset and bring all colors back to the default Modern Flames' signature color. This will cycle the heater between Heat high, low and off .

  • Page 20: Setting Controls

    SETTING CONTROLS Manual Controls Toggle Switch: The fireplace has a main toggle switch located next to the manual controls. The fireplace has manual controls located next to the The toggle switch is in front of the glass on toggle switch, in front of the glass on the top right the top right side of the viewing area.
  • Page 21 SETTING CONTROLS NOTE: When silent mode is selected, a tone will still -AP Mode: While the fireplace is ON, long press be present for performing system functions the Preset Color button for 6 seconds. Two such as remote pairing or Wi-Fi pairing. audible beeping tones will sound and then only the FLAME LIGHTS and nothing else will turn to Placing in Wi-Fi Paring Mode:...
  • Page 22 WI-FI REMOTE Sync This is a synchronization selector, used to synchronize the current color on the color wheel to all of the zones (Flame/Ember Bed/Downlight). Grayed out SYNC is when synchronization is “OFF”. Green SYNC is when synchronization is “ON”. Color Wheel This is the color adjustment wheel for all zones.
  • Page 23 Same as remote control blue monochrome fade cycle. PRESET MENU > Seven Color Demo Same as remote control, 7 color jump > Modern Flames Original cycles: R->G->B->RG->RB->GB->RGB. Modern Flames Orange (Static). > Three Color Demo Same as remote control, 3 color jump >...
  • Page 24 WI-FI REMOTE Timer Pressing the timer button will pop up a sub-menu with 10 options to choose from: 0.5-1-2-3-4-5-6-7-8 hours-cancel. Once the selected time has elapsed, the fireplace will turn off. (default) Ambience Setting The Ambience Setting button will open up a second window where customizations can be performed, including temperature scale setting (C/F), Weekly/Heat programming,...
  • Page 25 WI-FI REMOTE Power Off Turn On Cancel HEAT PROGRAM SUB MENU CONTINUED Heat > Power Level Sets fireplace status (no heat) OFF/ON. Off > Heat Level Sets Heat Level: OFF/LOW/HIGH. High > Temperature Temperature Level for the heater to turn on if the ambient temperature falls below the set temperature (High Heat.)
  • Page 26 WI-FI REMOTE > Mode Color Mode color: In the Static mode, only one color can be selected. After clicking the color symbol, you can change to additional colors. When using the Jump/Gradient feature, 8 colors can be programmed by clicking “+” color. By adjusting the color sliders, select the corresponding RGB value to obtain the desired color combination..
  • Page 27 WI-FI INITIAL LOG-IN Search for and install the “MODERN FLAMES” app from Google Play or Apple App store or scan the QR code. STEP STEP > After Download & Installed Login to Modern Flames app. > App Example...
  • Page 28 WI-FI PAIRING STEP STEP > Once Opened and Logged In > Select Fireplace From the home page, select the add “+” Select series of fireplace that will be symbol. pairing too and follow instructions.
  • Page 29 WI-FI REMOTE STEP STEP > Ensure Fireplace is ON > WiFi Information Using the fireplace manual touch If pairing via Wi-Fi you must use 2.4 GHz controls, turn ON the fireplace. Wi-Fi, and must have information filled out to move to next step.
  • Page 30 WI-FI REMOTE STEP STEP > Wi-Fi Pairing Confirmed > Place Fireplace in Pairing Mode EZ pairing mode is confirmed with a Once fireplace is “ON”, place fireplace in single audible beeping tone is heard and Wi-Fi pairing mode following the all the lights begin to blink rapidly instructions for pairing mode on the APP.
  • Page 31 WI-FI REMOTE STEP STEP > Pairing > Device Paired Successfully Device & APP should now begin to pair. NOTE: Do not turn off or disconnect the Depending on Wi-Fi this can take up the fireplace from power while pairing the entire 2 minutes to pair, or it may need Wi-Fi or performing updates.

  • Page 32: Maintenance

    MAINTENANCE...

  • Page 33: Troubleshooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Breaker tripped or circuit has no A. Reset breaker, test circuit for power, check power power switch Nothing comes on B. Internal component is frozen and B. Turn power off at the main breaker for 60 needs to be reset seconds.

  • Page 34: Frequently Asked Questions

    Q. How do I reset the unit? A. Turn power off at the breaker for 1 minute. Q. How do I install the Optional Wall Mount Touch Control and Wi-Fi App? A. Optional wall control & Wi-Fi app instructions available for download on Modern Flames’ website.

  • Page 35: Fcc Caution

    FCC CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 36 Copyright © 2023 RPG Brands (Modern Flames). All rights reserved. Products and specifications subject to change without notice. The product images shown are for illustration purposes only and may not be an exact representation of the product. 082023...
