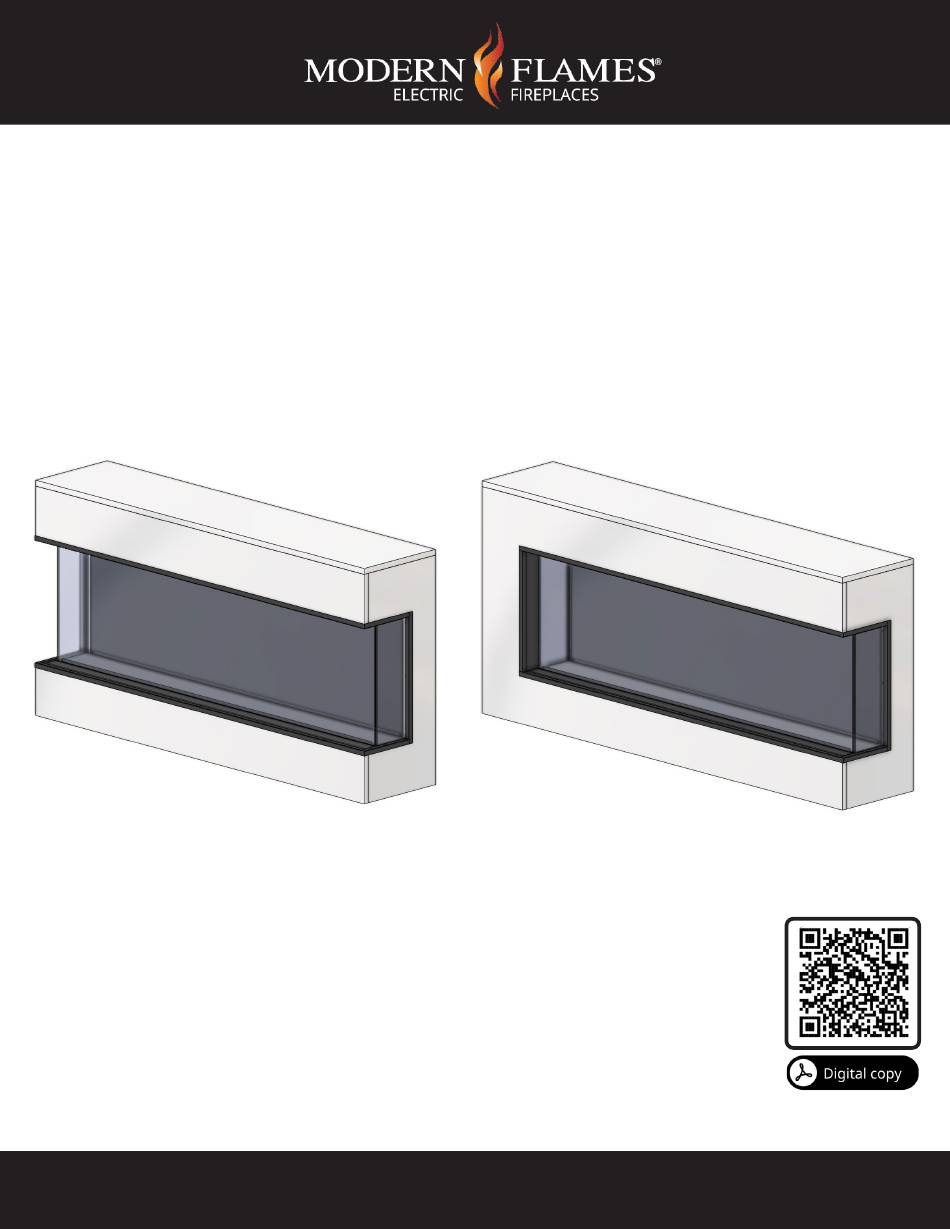

- Page 1 LANDSCAPE PRO MULTI V2 5-PC TRIM KIT FOR BAY/3 SIDED AND LEFT/RIGHT SIDE OPEN Owner/Installation Guide FITS: LPM-4416V2, LPM-5616V2, LPM-6816V2, LPM-8016V2, LPM-9616V2, LPM-12016V2 modernflames.com...
- Page 2 Assembly, Parts & Hardware List Each kit consists of 5 pieces, they are 2 “C” shaped trims, 1 short side trim, and 2 long top/bottom trims. The length of the top/bottom trims is based on the fireplace length. 5 PC TRIM KIT FOR LPM-4416V2. P/N: 02-00291-01 5 PC TRIM KIT FOR LPM-5616V2.

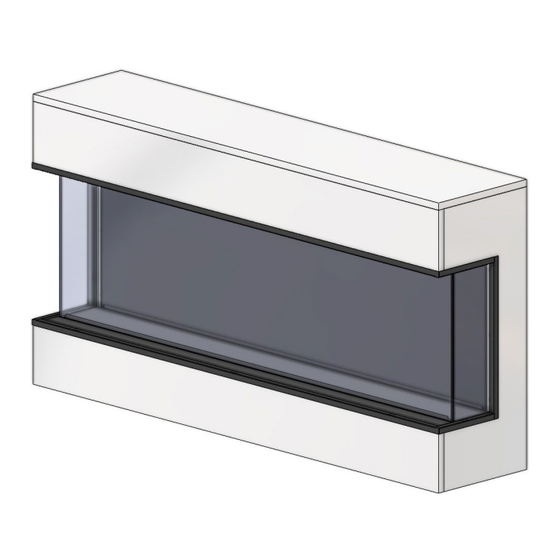

- Page 3 Installation and Assembly Trim Installation The 5 pieces can accommodate a bay/3-sided installation and a left/right installation finished with drywall or wood up to 3/4". See below examples. "C" shape trim "C" shape trim Top/Bottom Example: Bay/3-sided uses: 1 Top, 1 bottom, and 2 "C" shaped trims. Top/Bottom "C"...
- Page 4 Installation and Assembly All are held on by magnets for easy installation and removal. Wall #1 Wall #2 3/4" Space for trim 3/4" For proper fitment of the 5-piece trim, ensure that the fireplace installed in "Wall 2" has at least a 3/4" gap from the closest part to "Wall 1"...
- Page 5 DO NOT RETURN TO STORE! CALL US FIRST For immediate help with installation, product information, or if your product arrives damaged, please call our toll-free number at: AUSTRALIA/NEW ZEALAND 07 5630 6840 (Monday - Friday, 9:00AM - 5:00PM, AEST) Or email us at: info@modernflames.com EUROPE +46 762 09 58 09 (Monday - Friday, 8:00AM - 4:00PM, CEST)
- Page 6 Thank you for choosing Modern Flames, we appreciate all our customers and hope you have many years of enjoyment of our products. Take a look at our other products from our RPG Brands family of companies GrandCanyonGasLogs.com For all your indoor, and outdoor gas fireplaces & fire feature products.
