USER INSTRUCTIONS
TABLE OF CONTENTS

Important Instructions

Power Data

Product Guide

Box Contents
Installation
Operation
IMPORTANT INSTRUCTIONS
When using electrical heaters, basic
precautions should always be followed to
reduce the risk of fire, electric shock and injury
to persons, including the following:
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information,
consult a qualified installer.
CAUTION: Do not expose the heater to the
elements (such as rain, etc).
Do not place clothing or other flammable
material on or near firebox. Never place
any objects on the fireplace.
Carefully supervise young children when
they are in the room with fireplace.
Fireplace becomes very hot when running.
Keep children and adults away from
hot surfaces to avoid burns or clothing
ignition. Fireplace will remain hot for a
time after shutdown. Allow surfaces to
cool before touching.
CAUTION: In order to avoid
overheating, do not cover the
heater.
3 Service Parts
4 Troubleshooting
4 Frequently Asked Questions
5 Cleaning and Maintenance Instructions
6 Wiring Diagram
11
1. Read all instructions before installing or
using this heater.
2. This heater is hot when in use. To avoid
burns, do not let bare skin touch hot
surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9m)
from the front of the heater and keep them
away from the sides and rear.
3. Extreme caution is necessary when any
heater is used by or near children or
disabled people and whenever the heater is
left operating and unattended.
4. Do not operate any heater after it
malfunctions, has been dropped, or
damaged in any manner. Disconnect power
at service panel and have heater inspected
by an authorized technician or a reputable
electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to off
and turn off power to heater circuit at main
disconnect panel.
7. Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or
damage the heater.
8. To prevent a possible fire, do not block air
intakes or exhaust in any manner.
9. A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint or flammable vapors or
liquids are used or stored.
10. Use this heater only as described in this
manual. Any other use not recommended
by the manufacturer may cause fire, electric
shock or injury to persons.
11. SAVE THESE INSTRUCTIONS
12
LPM-4416/INT
14
15
Volts/HZ AC 240V 60Hz 14
16
Amps Amps
16
Heater AC 240V 3000W
Lamps LED DC 12V
AC220-240V
Rotor Motor 50/60Hz 4.5W
18/15RPM CCW
Shipping 1168mm x 686mm x
Size 343mm
632mm
(all models)
Model Viewing Area
1067mm W x
LPM-4416/INT
394mm H
1372mm W x
LPM-5616/INT
394mm H
1676mm W x
LPM-6816/INT
394mm H
1981mm W x
LPM-8016/INT
394mm H
3 4
USER INSTRUCTIONS
POWER DATA
LPM-5616/INT LPM-6816/INT
AC 240V 60Hz 14 AC 240V 60Hz 14
Amps Amps
AC 240V 3000W AC 240V 3000W
LED DC 12V LED DC 12V
AC220-240V AC220-240V
50/60Hz 4.5W 50/60Hz 4.5W
18/15RPM CCW 18/15RPM CCW
1473mm x 686mm x 1778mm x 686mm x
343mm 343mm

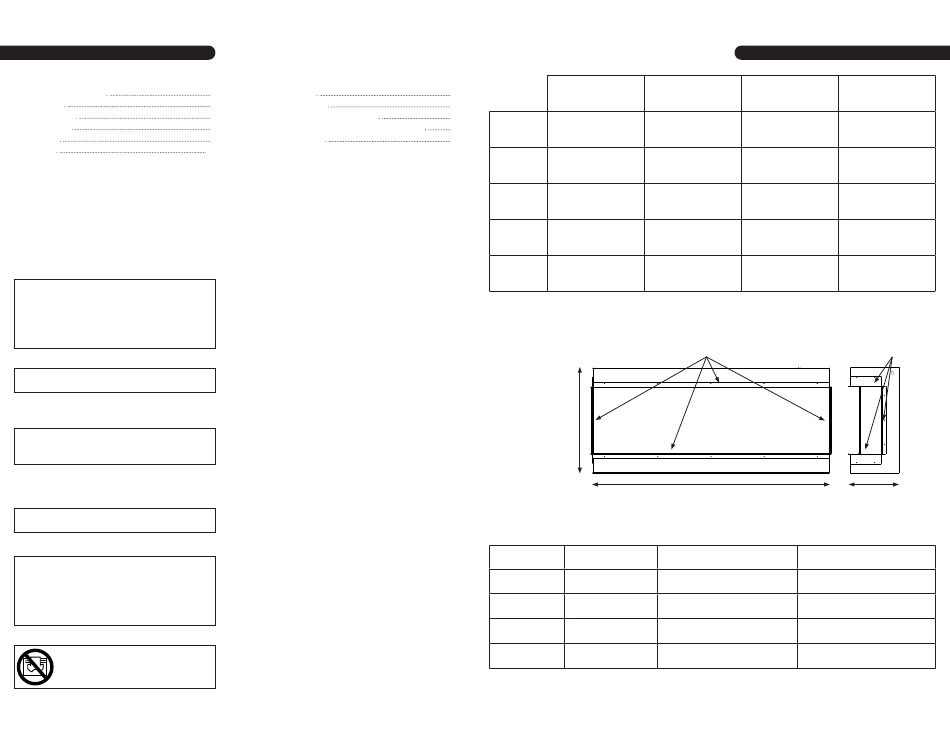

PRODUCT GUIDE
Drywall stops
Width varies (see chart below)
Firebox Dimensions Framing Dimensions
1118mm W x 632mm H x 1124mm W x 641mm H x
292mm D
1422mm W x 632mm H x 1429mm" W x 641mm H x
292mm D
1727mm W x 632mm H x 1734mm W x 641mm H x
292mm D
2032mm W x 632mm H x 2038mm W x 641mm H x
292mm D
LPM-8016/INT
AC 240V 60Hz 14
Amps
AC 240V 3000W
LED DC 12V
AC220-240V
50/60Hz 4.5W
18/15RPM CCW
2083 x 686mm x
343mm
Drywall stops
292mm
(all models)
305mm D
305mm D
305mm D
305mm D
