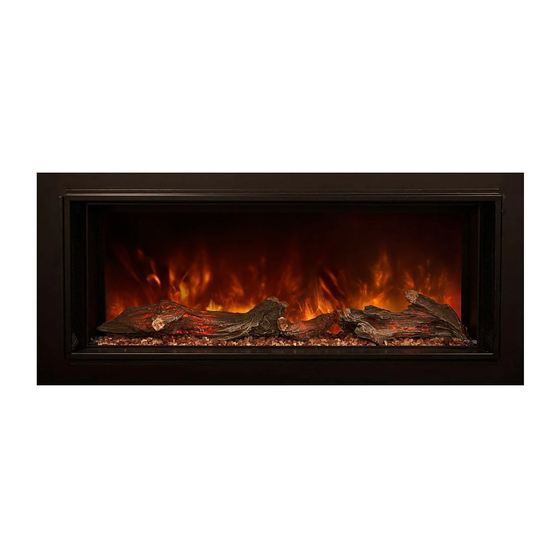

Modern Flames LANDSCAPE FULLVIEW LFV4015-SH Operating Manual

Modern Flames LANDSCAPE FULLVIEW LFV4015-SH Operating Manual

Landscape fullview series

Advertisement

LANDSCAPE FULLVIEW SERIES
LFV4015-SH • LFV6015-SH• LFV8015-SH
LFV10015-SH • LFV12015-SH
SAFETY INFORMATION AND OPERATIONS MANUAL
Read these instructions completely before beginning installation. Failure to follow them
could cause a heater malfunction resulting in serious injury and/or property damage.
WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it
in areas where gasoline, paint or flammable liquids are or are stored.
This fireplace meets the construction and safety standards of H.U.D. for application in
manufactured homes when installed according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANDSCAPE FULLVIEW LFV4015-SH and is the answer not in the manual?

Questions and answers

Summary of Contents for Modern Flames LANDSCAPE FULLVIEW LFV4015-SH

  • Page 1 LANDSCAPE FULLVIEW SERIES LFV4015-SH • LFV6015-SH• LFV8015-SH LFV10015-SH • LFV12015-SH SAFETY INFORMATION AND OPERATIONS MANUAL Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are or are stored.
  • Page 2: Table Of Contents

    USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions ........2 Operation ........... 9 Power Data ..........3 Service Parts ..........10 Product Guide ..........4 Frequently Asked Questions ...... 11 Box Contents ..........4 Troubleshooting ......... 11 Locating Fireplace ........5 Cleaning and Maintenance Instructions ..
  • Page 3: Power Data

    14. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you have to POWER DATA LFV4015-SH LFV6015-SH LFV8015-SH LFV10015-SH LFV12015-SH Volts/HZ...
  • Page 4: Product Guide

    Stop x4 Model Viewing Area Firebox Dimensions Framing Dimensions LFV4015-SH 40” W x 15” H 54 3/4” W x 22 1/2” H x 11 1/2” D 55 3/4” W x 23” H x 12” D LFV 6015-SH 60” W x 15” H 74 3/4”...
  • Page 5: Locating Fireplace

    INSTALLATION LOCATING FIREPLACE CAUTION: Do not locate in a moist room such as a bathroom or laundry room. CAUTION: Wear gloves and safety glasses for protection during installation and mainte- nance. INSTALLATION To reduce the risk of fire do not store or WARNING: If the information in these in- use gasoline or other flammable vapors structions is not followed exactly, a fire...
  • Page 6: Installation

    INSTALLATION Model LFV4015-SH 23” 55 3/4” 12” LFV6015-SH 23” 75 3/4” 12” LFV8015-SH 23” 95 3/4” 12” LFV10015-SH 23” 115 3/4” 12” LFV12015-SH 23” 135 3/4” 12” 1. Prepare the framed opening according to the chart above.. Provide a flexible 15 amp 120 volt circuit for hard wire installation.
  • Page 7 INSTALLATION 4. Install the fire unit in the framed opening with a minimum 1 ¼ drywall screws to secure the unit. 5. Mask the exposed fire unit during the drywall process. Install drywall to the drywall stops on the perimeter of the fire insert. For more information on the drywall stops see the Product Guide on page 4.
  • Page 8 INSTALLATION Optional installations: Installing remote touch control 1. Locate and remove the access door on the rear right side of the fire unit. 2. Locate the remote touch control directly inside the access panel. Pull the touch control through the access panel and replace the access door.
  • Page 9: Operation

    OPERATION OPERATION The unit is hardwired and has no main switch. (Caution: If servicing this unit, turn off power at the main circuit breaker.) An optional tethered wall control switch is included, refer to installation instructions to relocate the tethered wall control switch to a wall location. Power Heat Backlight...
  • Page 10: Service Parts

    MAINTENANCE LANDSCAPE SERVICE PARTS ITEM PHOTO COMMENTS PRINTED CIRCUIT BOARD CONTROLS LOW MFPCB1 VOLTAGE AND HIGH VOLTAGE FUNCTIONS MFTC1 LCD TOUCH CONTROL MFRR1 REMOTE CONTROL IR RECEIVER MF12VT1 TRANSFORMER MFHF12015-RH HEATER FAN 120 V 1500 WATTS RIGHT HAND MFHF12015-LH HEATER FAN 120 V 1500 WATTS LEFT HAND MFPHF AL HEATER 120 V 750 WATTS MFSM120...
  • Page 11: Frequently Asked Questions

    MAINTENANCE FREQUENTLY ASKED QUESTIONS Q. How do you program the remote control? A. The remote comes pre-programmed. No programming is necessary. Q. What distance can the remote be used from the fireplace? A. Optimal distance for the remote control is within 10 yards. Q.
  • Page 12 MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Breaker tripped or circuit has no A. Reset breaker, test circuit for power power B. Turn power off at the main B. Internal component is frozen breaker for 20 seconds. Turn power Nothing comes on (touch and needs to be reset back on.
  • Page 13: Cleaning And Maintenance Instructions

    MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Disconnect unit from power A. Wiring is loose source and inspect for loose connections Heater does not provide B. Turn the main breaker to the “off” B. Thermal snap disc has been heat when on position for 30 seconds.
  • Page 14 MAINTENANCE NOTES...
  • Page 15 MAINTENANCE NOTES...
  • Page 16 © 2013 www.modernflames.com Please dispose of properly.
