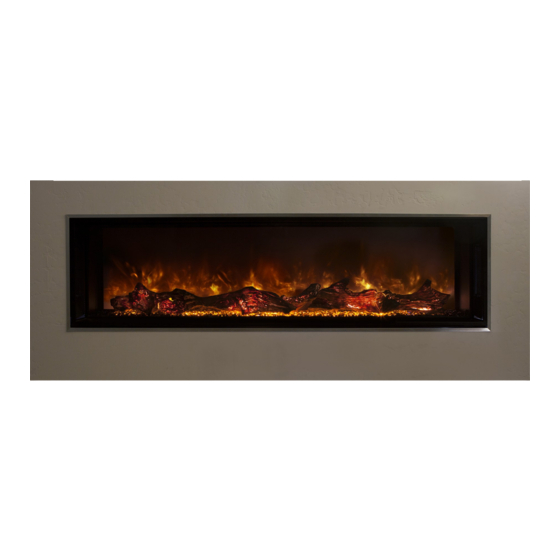

- Page 1 Landscape Fullview Series LFV100015-SH • LFV150015-SH• LFV200015-SH LFV250015-SH • LFV300015-SH INSTALLATION/SERVICE INSTRUCTIONS CE RATED FOR 220-240V 50HZ INSTALLATIONS...
- Page 2 LANDSCAPE FULLVIEW SERIES LFV100015-SH • LFV150015-SH• LFV200015-SH LFV250015-SH • LFV300015-SH SAFETY INFORMATION AND OPERATIONS MANUAL Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are or are stored.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions ........2 Operation ........... 9 Power Data ..........3 Service Parts ..........10 Product Guide ..........4 Frequently Asked Questions ...... 11 Box Contents ..........4 Troubleshooting ......... 11 Locating Fireplace ........5 Cleaning and Maintenance Instructions .. -
Page 4: Power Data
USER INSTRUCTIONS POWER DATA LFV100015-SH LFV150015-SH LFV200015-SH LFV250015-SH LFV300015-SH AC 220- AC 220- AC 220- AC 220- AC 220- Volts/HZ 240V/50HZ 240V/50HZ 240V/50HZ 240V/50HZ 240V/50HZ Amps 15 Amps 15 Amps 15 Amps 15 Amps 15 Amps AC 220- AC 220-... -
Page 5: Box Contents
INSTALLATION BOX CONTENTS 1 Fire Unit 3 L Metal Nailing Flanges (with screws) 1 Remote 4 L Metal Deco Trim LOCATING FIREPLACE CAUTION: Do not locate in a moist room such as a bathroom or laundry room. CAUTION: Wear gloves and safety glasses for protection during installation and mainte- nance. -
Page 6: Installation
INSTALLATION Model LFV100015-SH 585mm 1416mm 305mm LFV150015-SH 585mm 1924mm 305mm LFV200015-SH 585mm 2432mm 305mm LFV250015-SH 585mm 2940mm 305mm LFV300015-SH 585mm 3448mm 305mm 1. Prepare the framed opening according to the chart above. Provide a flexible 10 amp 220-240 volt circuit for hard wire installation. - Page 7 INSTALLATION 4. Install the fire unit in the framed opening with a minimum 1 ¼ drywall screws to secure the unit. 5. Mask the exposed fire unit during the drywall process. Install drywall to the drywall stops on the perimeter of the fire insert. For more information on the drywall stops see the Product Guide on page 4.
-
Page 8: Operation
OPERATION Installing remote touch control 1. Locate and remove the access door on the rear right side of the fire unit. 2. Locate the remote touch control directly inside the access panel. Pull the touch control through the access panel and replace the access door. - Page 9 MAINTENANCE OPERATION The unit is hardwired and has no main switch. (Caution: If servicing this unit, turn off power at the main circuit breaker.) An optional tethered wall control switch is included, refer to installation instructions to relocate the tethered wall control switch to a wall location. Power Heat Backlight...
-
Page 10: Service Parts
MAINTENANCE LANDSCAPE SERVICE PARTS ITEM PHOTO COMMENTS PRINTED CIRCUIT BOARD CONTROLS LOW MFPCB1 VOLTAGE AND HIGH VOLTAGE FUNCTIONS MFTC1 LCD TOUCH CONTROL MFRR1 REMOTE CONTROL IR RECEIVER MF12VT1 TRANSFORMER MFHF24015-RH HEATER FAN 220-240V 1.5kW RIGHT HAND MFHF24015-LH HEATER FAN 220-240V 1.5kW LEFT HAND MFPHF240AL HEATER 220-240V .75kW MFSM240... -
Page 11: Frequently Asked Questions
MAINTENANCE FREQUENTLY ASKED QUESTIONS Q. How do you program the remote control? A. The remote comes pre-programmed. No programming is necessary. Q. What distance can the remote be used from the fireplace? A. Optimal distance for the remote control is within 10 yards. Q. - Page 12 MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Breaker tripped or circuit has no A. Reset breaker, test circuit for power power B. Turn power off at the main B. Internal component is frozen breaker for 20 seconds. Turn power Nothing comes on (touch and needs to be reset back on.
-
Page 13: Cleaning And Maintenance Instructions
MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Disconnect unit from power A. Wiring is loose source and inspect for loose connections Heater does not provide B. Turn the main breaker to the “off” B. Thermal snap disc has been heat when on position for 30 seconds. - Page 14 MAINTENANCE NOTES...
- Page 15 MAINTENANCE NOTES...
- Page 16 © 2013-2015 www.modernflames.com Please dispose of properly. Ver. 4...
