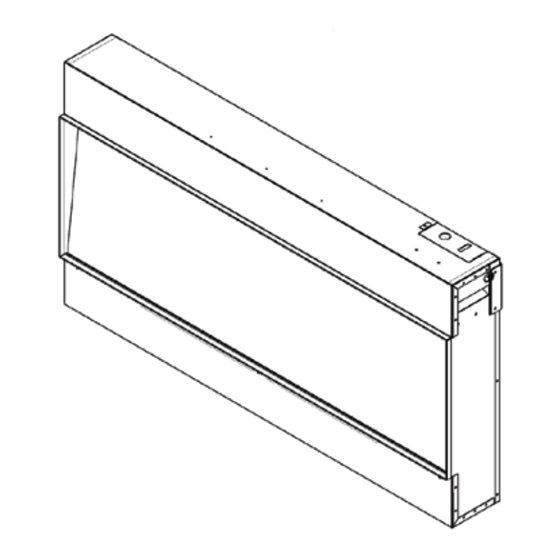

Landscape Pro Slim Electric Fireplace

Model#

LPS-4414V2/INT

Rated: 220~240VAC 50/60Hz 6,800 BTUs

WARNING

CAUTION

AFFIX SERIAL NUMBER LABEL

HERE FOR FUTURE REFERENCE

LPS-8014V2/INT

Installation Manual

Approved for Indoor and Outdoor Use

Read and understand this entire owner's manual, including all safety

information, before plugging in or using this product. Failure to do so

could result in fire, electric shock, or serious personal injury. Don't

spray water directly on to product. Clean with damp cloth or duster.

Keep this owner's manual for future reference. If you sell or give this

product away, make sure this manual accompanies this product.

LPS-5614V2/INT

LPS-9614V2/INT

LPS-6814V2/INT

07-00012-1 REV C

Table of Contents

Need help?

Do you have a question about the LPS-4414V2/INT and is the answer not in the manual?

Questions and answers

Summary of Contents for Modern Flames LPS-4414V2/INT

Page 1 Landscape Pro Slim Electric Fireplace Model# LPS-4414V2/INT LPS-5614V2/INT LPS-6814V2/INT LPS-8014V2/INT LPS-9614V2/INT Installation Manual Approved for Indoor and Outdoor Use Rated: 220~240VAC 50/60Hz 6,800 BTUs Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so WARNING could result in fire, electric shock, or serious personal injury.
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all Instructions before installing or using the heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc.
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS ATTENTION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all Instructions before installing or using the heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc.
Page 4 USER INSTRUCTIONS POWER DATA LPS-4414V2/INT LPS-5614V2/INT LPS-6814V2/INT LPS-8014V2/INT LPS-9614V2/INT Volts/HZ Amps AC 220~240V AC 220~240V AC 220~240V AC 220~240V AC 220~240V 50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp 50/60Hz 9 Amp Heater AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W AC 220~240V 2000W...
Page 5: Product Guide
Viewing Area Firebox Dimensions Framing Dimensions LPS-4414V2/INT 1111 mm W x 356 mm H 1124 mm W x 603 mm H x 141 mm D 1130 mm W x 613 mm H x 152 mm D 43 5⁄8" W x 13 5⁄8" H 44 1⁄16"...
Page 6: Parts And Hardware
PARTS AND HARDWARE (1) L-Metal Mounting (1) Canyon (1) Fireplace (1) Owners Manual Bracket Set (1) Remote Driftwood Logs Set (1) Front Glass (1) Battery Tool (1) CR2025 Battery (1) Suction Cup (1) Trim Wall Mount Smoke Clear (1) Touch Control Acrylic Crystals Pkg Acrylic Stones Pkg (Sold Separately)
Page 7: Installation
INSTALLATION Select a suitable location that is away from drapes, furniture, and high traﬃc areas. NOTE: Follow all National and local electrical codes. This product includes a GLASS panel. Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Due to the many diﬀerent materials used on diﬀerent walls, it is highly recommended that you consult your local builder before you install this ﬁreplace.
Page 8: Built-In Installation
BUILT-IN INSTALLATION Fully Recessed Installation (Single Sided) 1. This installation is optimized for a 2x6 framed wall. Prepare the framed opening according to the framing dimensions chart (pg 4). *Provide appropriate dedicated circuit for hardwire install at the top right of framed opening. 2.
Page 9 BUILT-IN INSTALLATION Partial Recessed Installation 1. This installation is optimized for a 2x4 framed wall. Prepare the framed opening according to the framing dimensions chart on page 4. *Provide appropriate dedicated circuit for hardwire install at the top right of framed opening. 2.
Page 10: Outdoor Installation Requirements
OUTDOOR INSTALLATION REQUIREMENTS The LPS Series electric ﬁreplaces from Modern Flames LLC have been tested and approved for installation outdoors under a patio cover and away from direct water contact or direct sun light. Modern Flames LLC standard warranty applies if installed per instructions. All electrical wiring shall be to local building codes.
Page 11: Side Protection
OUTDOOR INSTALLATION REQUIREMENTS Side Protection: Side distance (SD) must be 50% (or more) of the height(H). If: H=6’ Then: SD=3’ minimum (6’ x 50%=3’) Note: H taken from bottom of ﬁreplace.
Page 12 LOG SETS #1 LOG #2 LOG #3 LOG #5 LOG #4 LOG #6 LOG #8 LOG #7 LOG #11 LOG #10 LOG #12 LOG #15 LOG #9 LOG #13 LOG #16 LOG #14 LOG LANDSCAPE PRO SLIM – LOG SET SIZES 44 –...
Page 13: Log Placement
LOG PLACEMENT LANDSCAPE PRO SLIM – LOG PLACEMENT 44" – 56" – 68" – 80" – 96" LPS 44" – S et contains 6 logs LPS 56" – S et contains 8 logs LPS 68" – S et contains 10 logs LPS 80"...
Page 14: Hard Wiring
HARD WIRING A qualiﬁed electrician must wire this ﬁreplace to a dedicated 220~240 volt, 13 amp (EU) 10 amp (AU/NZ), circuit. A 13 amp (EU) or 10 amp (AU/NZ) circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if after installation, the circuit breaker trips on a regular basis.
Page 15 INSTALLING MEDIA AND FRONT GLASS 1. Remove screws from top of glass bracket. Use the small suction cup provided in the hardware kit to lean glass towards the front. Then lift glass up and away. Place glass in soft, safe area.
Page 16: Remote Control Operation
REMOTE CONTROL OPERATION The unit has a main power switch just in front of the glass on the top right hand side. A hand-held remote is included. This will cycle the ﬁreplace on and oﬀ. Upon Power cycling power on, the ﬁreplace will return to the settings it had when it was cycled oﬀ...
Page 17: Setting Controls
SETTING CONTROLS Manual Controls Toggle Switch: The ﬁreplace has a main toggle switch located next to the manual controls. The ﬁreplace has manual controls located next to the The toggle switch is in front of the glass on toggle switch, in front of the glass on the top the top right side of the viewing area.
Page 18 SETTING CONTROLS NOTE: When silent mode is selected, a tone will -AP Mode: While the ﬁreplace is ON, long press the still be present for performing system func- Preset Color button for 6 seconds. Two audible tions such as remote pairing or Wi-Fi pairing. beeping tones will sound and then only the FLAME LIGHTS and nothing else will turn to Placing in Wi-Fi Paring Mode:...
Page 19 WI-FI REMOTE Sync This is a synchronization selector, used to synchronize the current color on the color wheel to all of the zones (Flame/Ember Bed/Downlight). Grayed out SYNC is when synchronization is “OFF”. Green SYNC is when synchronization is “ON”. Color Wheel This is the color adjustment wheel for all zones.
Page 20: Mode Sub Menu
Same as remote control blue monochrome fade cycle. PRESET MENU > Seven Color Demo Same as remote control, 7 color jump > Modern Flames Original cycles: R->G->B->RG->RB->GB->RGB. Modern Flames Orange (Static). > Three Color Demo Same as remote control, 3 color jump >...
Page 21 WI-FI REMOTE Timer Pressing the timer button will pop up a sub-menu with 10 options to choose from: 0.5-1-2-3-4-5-6-7-8 hours-cancel. Once the selected time has elapsed, the ﬁreplace will turn oﬀ. (default) Ambience Setting The Ambience Setting button will open up a second window where customizations can be performed, including temperature scale setting (C/F),...
Page 22 WI-FI REMOTE Power Turn On Cancel HEAT PROGRAM SUB MENU CONTINUED Heat Level > Power Sets ﬁreplace status (no heat) OFF/ON. > Heat Level Sets Heat Level: OFF/LOW/HIGH. High > Temperature Temperature Level for the heater to Cancel turn on if the ambient temperature falls below the set temperature (High Heat).
Page 23 WIFI REMOTE > Mode Color Mode color: In the Static mode, only one color can be selected. After clicking the color symbol, you can change to additional colors. When using the Jump/Gradient feature, 8 colors can be programmed by clicking “+” color. By adjusting the color sliders, select the corresponding RGB value to obtain the desired color combination..
Page 24 WI-FI INITIAL LOG-IN Search for and install the “MODERN FLAMES” app from Google Play or Apple App store or scan the QR code. STEP STEP > After Download & Installed Login to Modern Flames app. > App Example...
Page 25 WI-FI PAIRING STEP STEP > Once Opened and Logged In > Select Fireplace From the home page, select the add Select series of ﬁreplace that will be “+” symbol. pairing too and follow instructions.
Page 26 WI-FI REMOTE STEP STEP > Wi-Fi Information > Ensure Fireplace is ON If pairing via Wi-Fi you must use 2.4 GHz Using the ﬁreplace manual touch Wi-Fi, and must have information ﬁlled controls, turn ON the ﬁreplace. out to move to next step.
Page 27 WI-FI REMOTE STEP STEP > Wi-Fi Pairing Conﬁrmed > Place Fireplace in Pairing EZ pairing mode is conﬁrmed with a Mode single audible beeping tone is heard Once ﬁreplace is “ON”, place ﬁreplace in and all the lights begin to blink rapidly Wi-Fi pairing mode following the instructions for pairing mode on the AP pairing mode is conﬁrmed with two...
Page 28 WI-FI REMOTE STEP STEP > Pairing > Device Paired Successfully Device & APP should now begin to pair. NOTE: Do not turn oﬀ or disconnect the Depending on Wi-Fi this can take up the ﬁreplace from power while pairing the entire 2 minutes to pair, or it may need Wi-Fi or performing updates.
Page 29: Maintenance
MAINTENANCE...
Page 30: Troubleshooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Breaker tripped or circuit has no A. Reset breaker, test circuit for power, check power power switch Nothing comes on B. Internal component is frozen and B. Turn power oﬀ at the main breaker for 60 needs to be reset seconds.
Page 31: Frequently Asked Questions
Q. How do I reset the unit? A. Turn power oﬀ at the breaker for 1 minute. Q. How do I install the Optional Wall Control and Wi-Fi App? A. Optional wall control & Wi-Fi app instructions available for download on Modern Flames’ website...
Page 32: Fcc Caution
FCC CAUTION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Page 33 NOTES __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
Page 34 NOTES __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
Page 35 NOTES __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
Page 36 Copyright © 2023 RPG Brands (Modern Flames). All rights reserved. Products and speciﬁcations subject to change without notice. The product images shown are for illustration purposes only and may not be an exact representation of the product. 082023...
