Product description
The Tektronix IsoVu
interface as shown in the following figure. Hazardous voltages in the sensor head are completely isolated from the
oscilloscope by optical fiber cables.

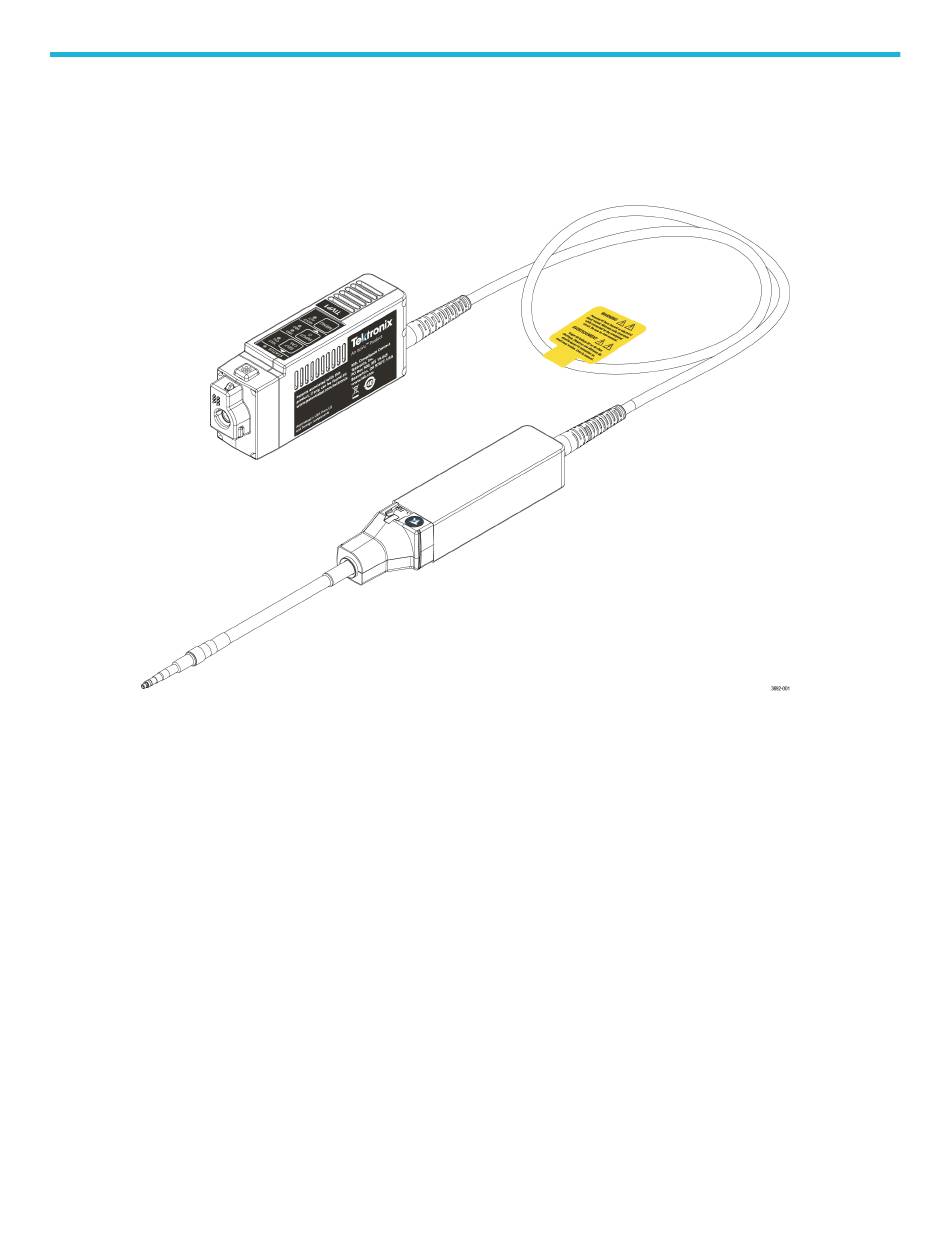

Figure 1: TIVP Series IsoVu Measurement System
Compensation box
The TekVPI compensation box (comp box) connects the measurement system to one of the input channels on the
oscilloscope. Power is supplied to the measurement system through the TekVPI interface of the oscilloscope. The buttons
and indicators on the comp box provide a means for controlling the probe and indicating the overall status.
Sensor head
The sensor head provides an interface between the device-under-test (DUT) and the compensation box. It contains an
electro-optic converter that converts the electrical signal from the sensor tip cables to an optical signal sent to the comp box.
Sensor tip cables
Several sensor tip cables options are available to connect the sensor head to the DUT:
•
TIVPMX10X, 10X MMCX tip cable connector
•
TIVPMX50X, 50X MMCX tip cable connector
•
TIVPSQ100X, 100X 0.1-inch (2.54 mm) square pin connector
•
TIVPWS500X, 500X 0.2-inch (5.08 mm) square pin connector
•
TIVPMX1X, 1X MMCX tip cable connector
TIVP Series IsoVuTM Measurement System User Manual
®
(TIVP) Generation 2 is a completely galvanically isolated probe tip cable, sensor head, and TekVPI
