Reference information
To achieve the best electrical performance, especially the CMRR performance and EMI susceptibility, place the probe tip
adapter as close as possible to the circuit board.

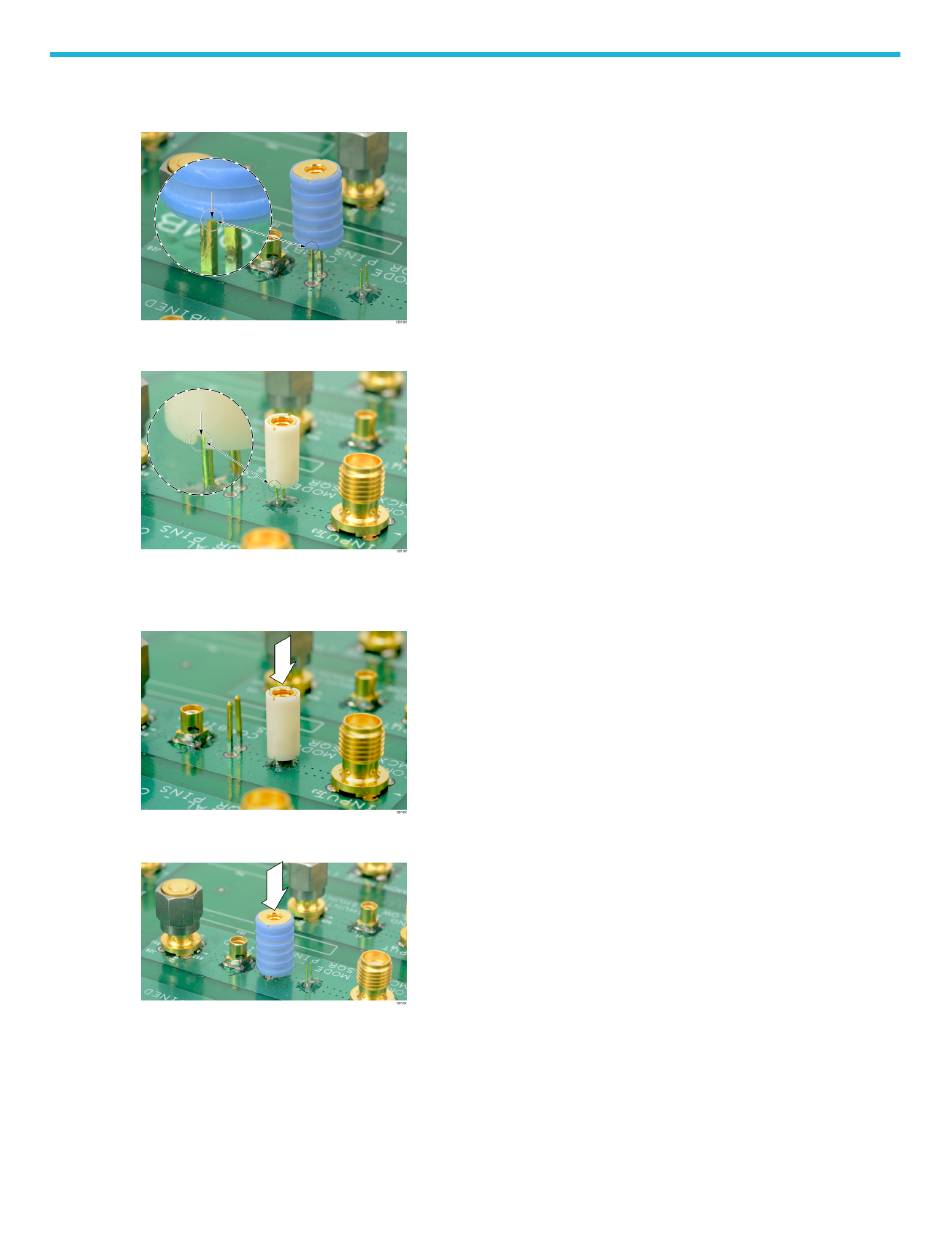

Figure 16: Lining up the MMCX-to-0.1-inch (2.54 mm) adapter on the circuit board

Figure 17: Lining up the MMCX-to-0.062-inch (1.57 mm) adapter on the circuit board

After lining up the adapters gently push down on the adapter to seat it in place on the circuit board.

Figure 18: Pushing the MMCX-to-0.062-inch (1.57 mm) adapter in place

Figure 19: Pushing the MMCX-to-0.1-inch (2.54 mm) adapter in place

When the adapters are firmly in place on the circuit board connect the sensor tip cable to the top of the adapter while using
the probe tip tripod to ease the tension off the probe tip cable and adapter. Figure 15: Connecting to an adapter on the
circuit board with the probe tip tripod on page 41
TIVP Series IsoVuTM Measurement System User Manual 42
