Models

The TIVP Series IsoVu Measurement System includes the following models:
• TIVP1. Tektronix IsoVu® Generation 2; 1 GHz Isolated Probe
• TIVP05. Tektronix IsoVu® Generation 2; 500 MHz Isolated Probe
• TIVP02. Tektronix IsoVu® Generation 2; 200 MHz Isolated Probe

Supported oscilloscopes

The measurement system can be used with the 4, 5, and 6 Series Mixed Signal Oscilloscopes with oscilloscope software
version 1.28 or greater. For all other oscilloscopes, contact your local Tektronix representative.

Accessories

This section lists the standard and optional accessories available for the measurement system.

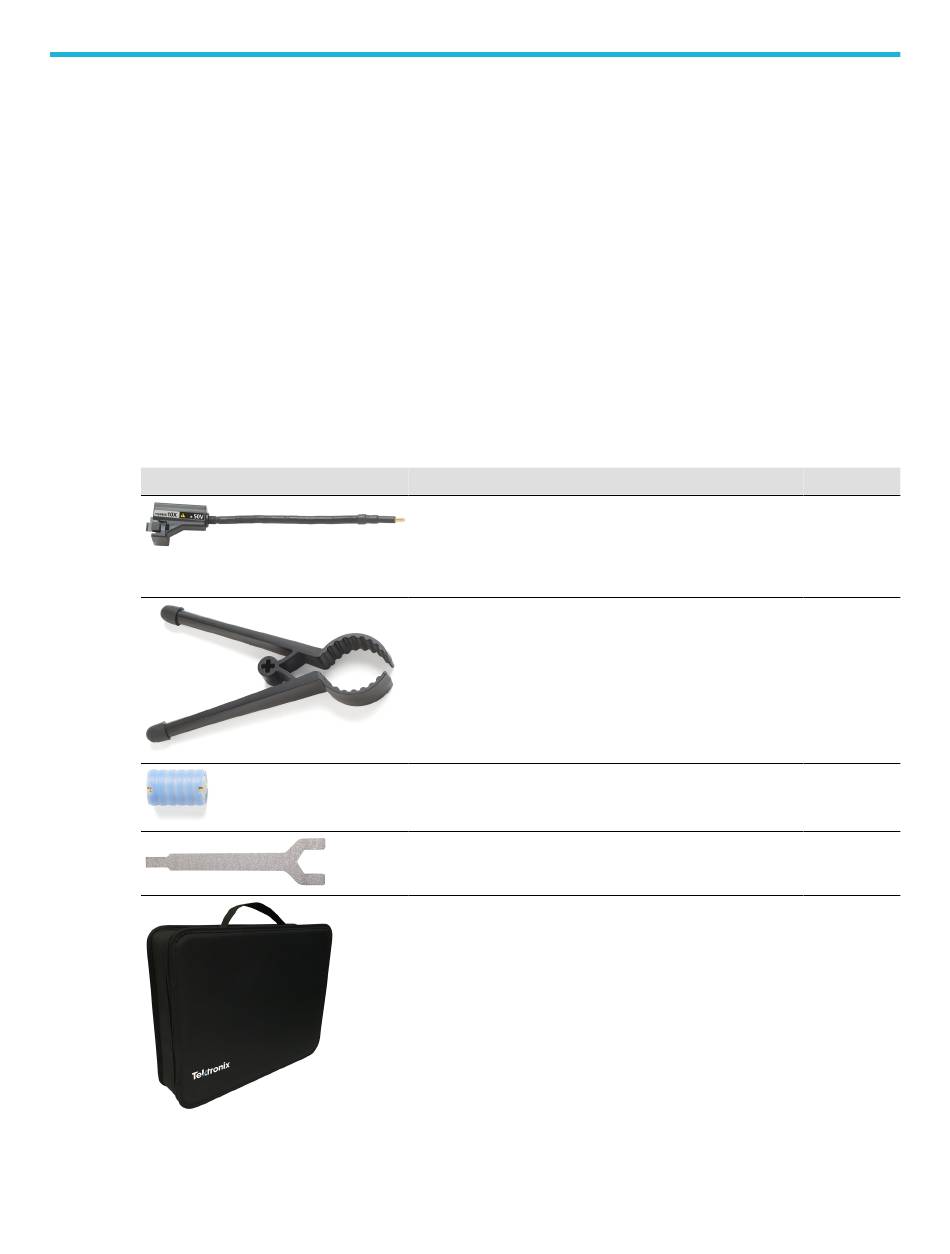

Standard accessories

The following table list the accessories that are shipped with the probe.
Accessory
TIVP Series IsoVuTM Measurement System User Manual
Description
The 10X MMCX Tip is included in every TIVP. The MMCX tip is
recommended for the best bandwidth and CMRR performance.
0.100" Square Pin and 0.200" Wide Square Pin tips are
available as optional accessories.
The Bipod is used to hold the probe. TIVP can rotate in the
holder to accommodate square pin headers.
The Probe Tip Adapter is used to adapt an MMCX IsoVu tip to
standard 0.100" spaced, 0.025" square pins.
The SMA Wrench/Driver Tool is a 5/16" wrench for use on a
SMA connector.
The Carrying Case is a soft case (with foam insert) that
protects the TIVP and enforces the optical fiber minimum bend
radius.
Preface
Part number
TIVPMX10X
352-1179-xx
131-9717-xx
003-1947-xx
016-2147-xx
