Ruijie RG-NBS5200 Series Switches Hardware Installation and Reference Guide
Front Panel

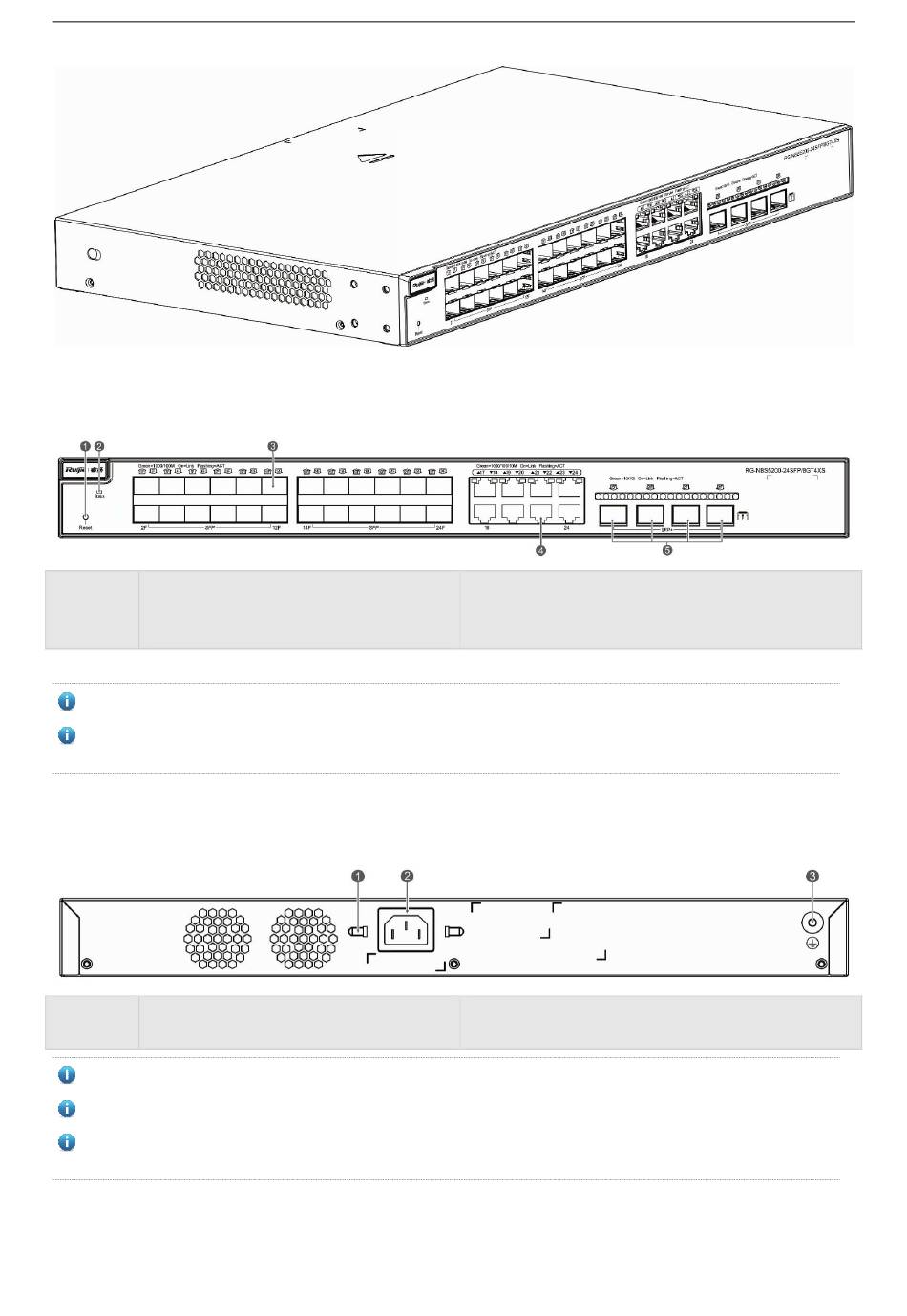

Figure 1-6 Front Panel of RG-NBS5200-24SFP/8GT4XS
Note: 1. Reset button
2. System status LED
3. 1000Base-X SFP port
The switch reboots after the reset button is pressed for less than 2 seconds.
The switch restores the default factory settings after the reset button is pressed for more than 5 seconds (until the
status LED blinks).
Back Panel
Figure 1-7 Back Panel of RG-NBS5200-24SFP/8GT4XS
Note: 1. Power cord retention clips
2. Three-hole AC power receptacle
This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
The device shall be intended to be used in a location having equipotential bonding(such as a telecommunication
centre, a dedicated computer room, or a restricted access area).
Heat Dissipation
4. Combo port
5. 10GE SFP+ port
3. Protective earthing terminal
Product Overview
