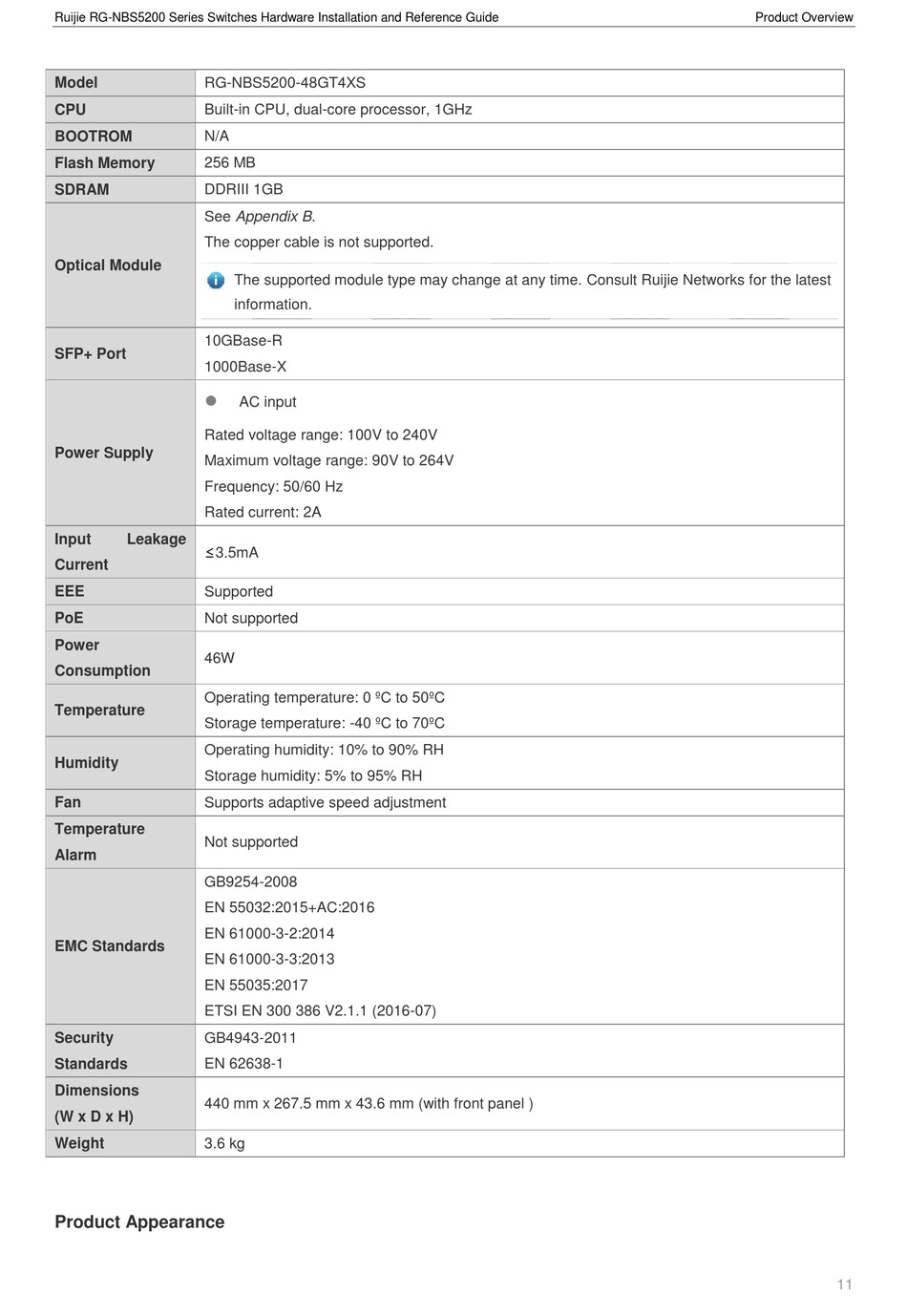

Ruijie RG-NBS5200 Series Switches Hardware Installation and Reference Guide
RG-NBS5200-48GT4XS
Model
CPU
Built-in CPU, dual-core processor, 1GHz
BOOTROM
N/A
Flash Memory
256 MB
SDRAM
DDRIII 1GB
See Appendix B.
The copper cable is not supported.
Optical Module
10GBase-R
SFP+ Port
1000Base-X
Rated voltage range: 100V to 240V
Power Supply
Maximum voltage range: 90V to 264V
Frequency: 50/60 Hz
Rated current: 2A
Input
Leakage
≤3.5mA
Current
EEE
Supported
PoE
Not supported
Power
46W
Consumption
Operating temperature: 0 º C to 50º C
Temperature
Storage temperature: -40 º C to 70º C
Operating humidity: 10% to 90% RH
Humidity
Storage humidity: 5% to 95% RH
Supports adaptive speed adjustment
Fan
Temperature
Not supported
Alarm
GB9254-2008
EN 55032:2015+AC:2016
EN 61000-3-2:2014
EMC Standards
EN 61000-3-3:2013
EN 55035:2017
ETSI EN 300 386 V2.1.1 (2016-07)
Security
GB4943-2011
Standards
EN 62638-1
Dimensions
440 mm x 267.5 mm x 43.6 mm (with front panel )
(W x D x H)
Weight
3.6 kg
Product Appearance
The supported module type may change at any time. Consult Ruijie Networks for the latest
information.
AC input
Product Overview
11
