Ruijie RG-NBS5200 Series Switches Hardware Installation and Reference Guide
Note: 1. Power cord retention clips
2. Three-hole AC power receptacle
This device relies on the separate protective earthing terminal.
The device installation shall be permanently connected to building earth by a skilled person.
Heat Dissipation
RG-NBS5200-48GT4XS adopts side-to-rear heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to
allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

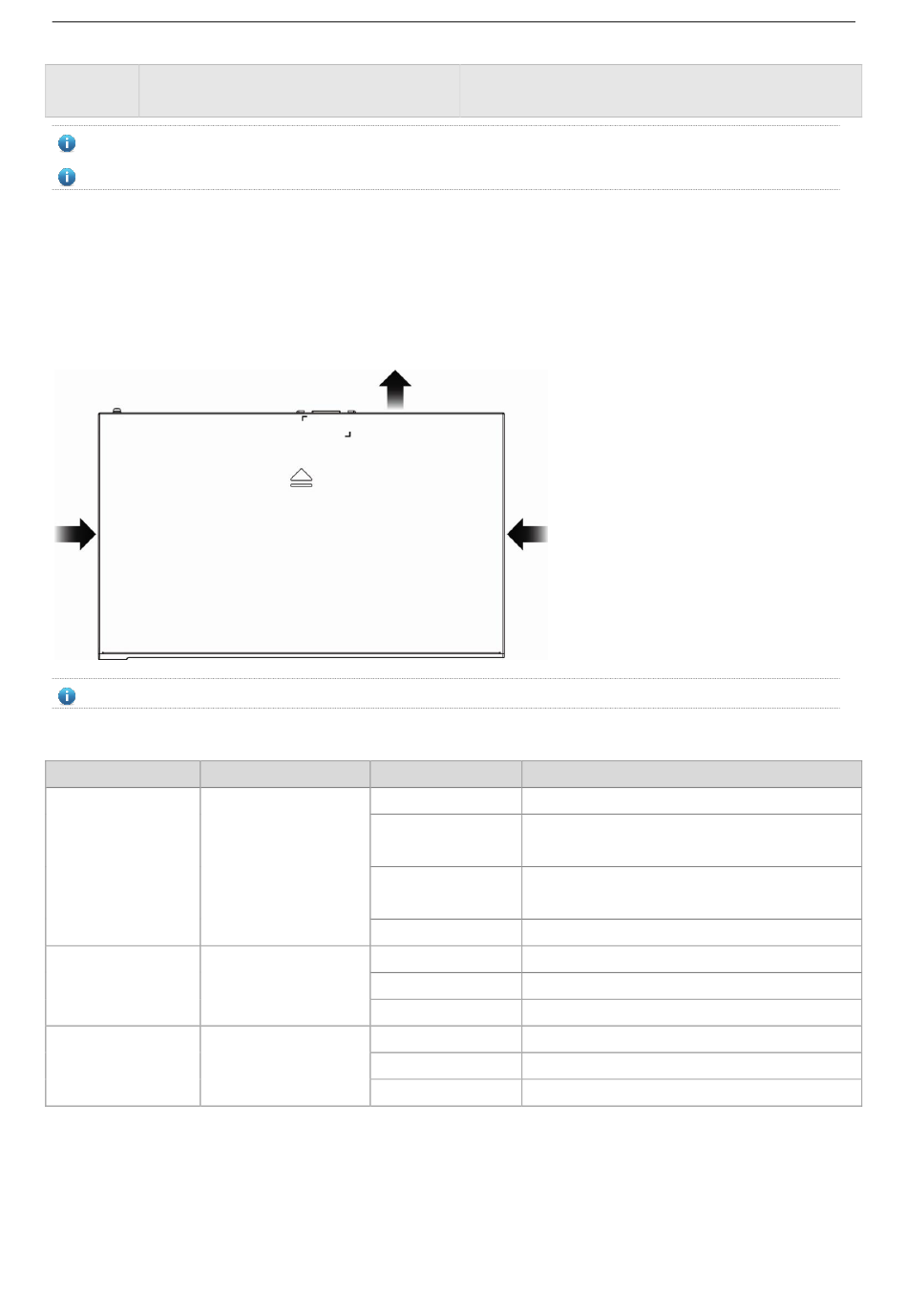

Figure 1-12 Flow Scheme of Heat Dissipation
When you install devices, reserve 1U (44.45 cm) distance space between neighbor devices to allow air circulation.
LED
LED Panel Identification
System status LED Status
10/100/1000Base-T
Ethernet port status 1-48
LED
SFP+ port status
49F-52F
LED
3. Protective earthing terminal
State Meaning
Off The switch is not receiving power.
Blinking green The switch is running, but is not connected to
(0.5Hz) Ruijie Cloud.
Blinking green
The switch is being upgraded or initialized.
(10Hz)
Solid green The switch is connected to Ruijie Cloud.
Off The port is not connected.
Solid green The port is connected at 10/100/1000 Mbps.
Blinking green The port is receiving or transmitting traffic.
Off The port is not connected.
Solid green The port is connected.
Blinking green The port is receiving or transmitting traffic.
Product Overview
13
