RG-NBS5200-24SFP/8GT4XS adopts fan for heat dissipation, thereby ensuring normal function of the device in the
specified environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to
allow air circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

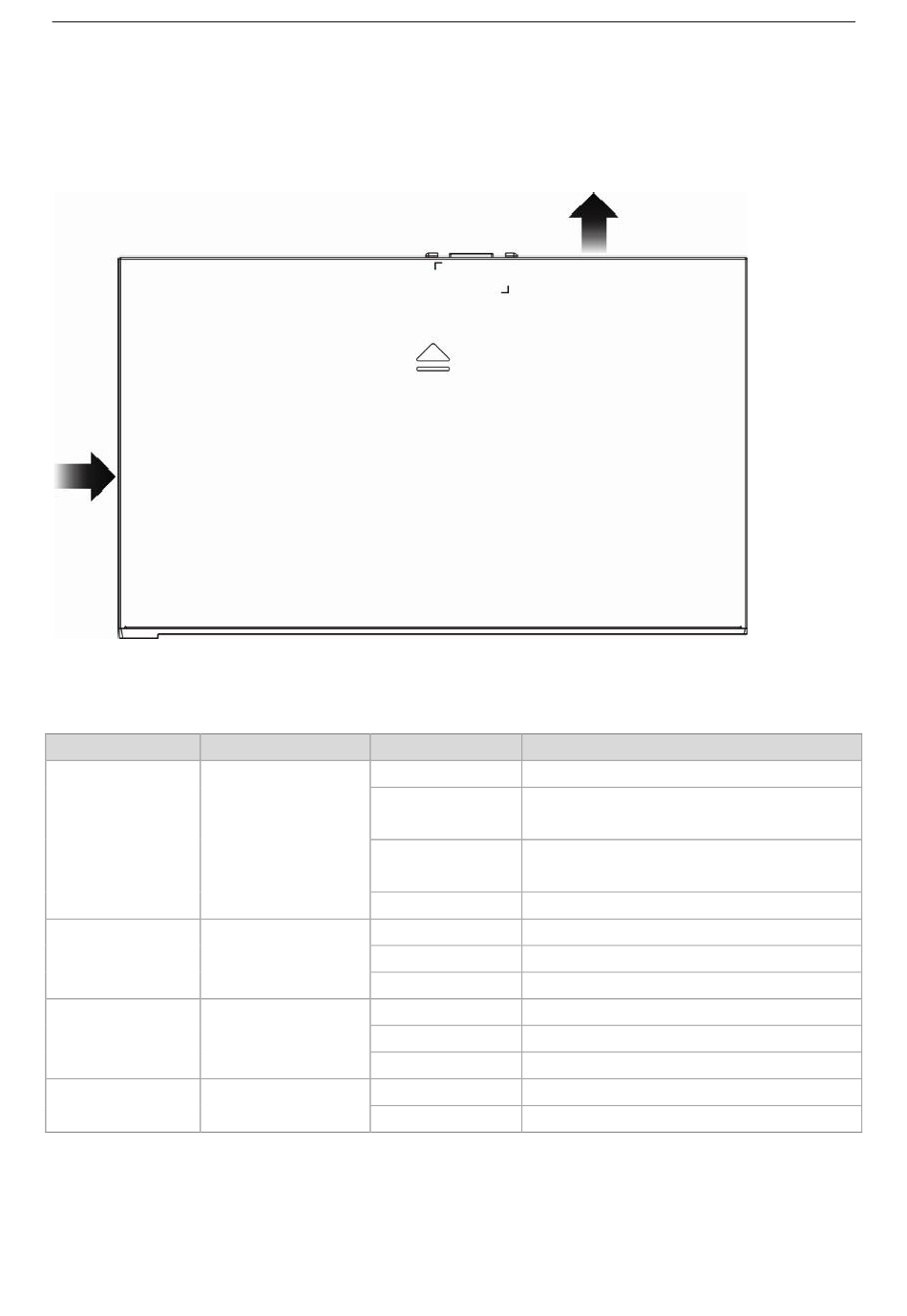

Figure 1-8 Flow Scheme of Heat Dissipation
LED
LED Panel Identification
System status LED Status
10/100/1000Base-T
Ethernet port status 17-24 (Combo ports)
LED
SFP port status LED 1F-24F
SFP+ port status
25F-28F
LED
1.3 RG-NBS5200-48GT4XS
Technical Specifications
State Meaning
Off The switch is not receiving power.
Blinking green The switch is running, but is not connected to
(0.5Hz) Ruijie Cloud.
Blinking green
The switch is being upgraded or initialized.
(10Hz)
Solid green The switch is connected to Ruijie Cloud.
Off The port is not connected.
Solid green The port is connected at 10/100/1000 Mbps.
Blinking green The port is receiving or transmitting traffic.
Off The port is not connected.
Solid green The port is connected.
Blinking green The port is receiving or transmitting traffic.
Off The port is not connected.
Solid green The port is connected.
