Ruijie RG-NBS5200 Series Switches Hardware Installation and Reference Guide

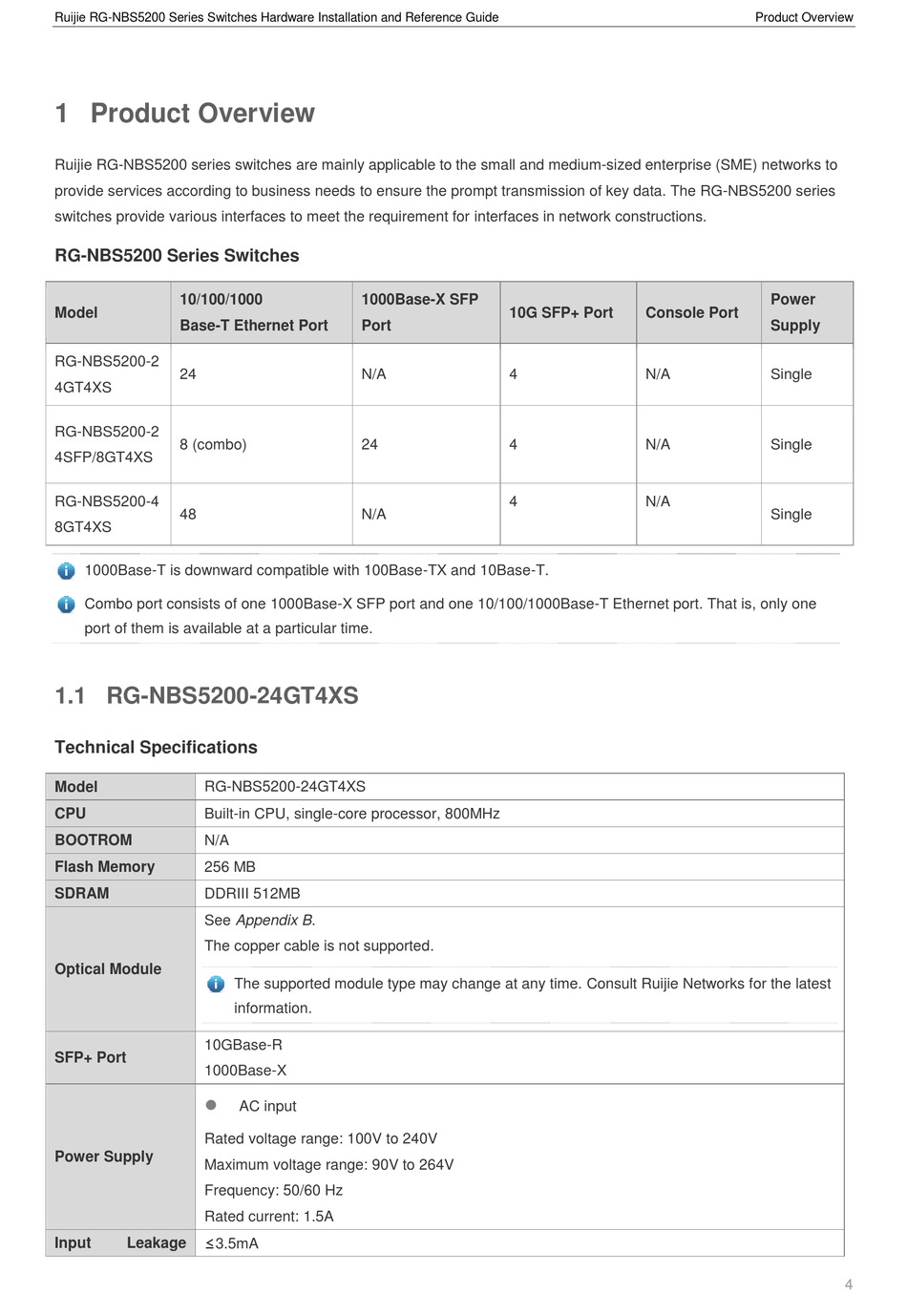

1 Product Overview

Ruijie RG-NBS5200 series switches are mainly applicable to the small and medium-sized enterprise (SME) networks to
provide services according to business needs to ensure the prompt transmission of key data. The RG-NBS5200 series
switches provide various interfaces to meet the requirement for interfaces in network constructions.
RG-NBS5200 Series Switches
10/100/1000
Model
Base-T Ethernet Port
RG-NBS5200-2
24
4GT4XS
RG-NBS5200-2
8 (combo)
4SFP/8GT4XS
RG-NBS5200-4
48
8GT4XS
1000Base-T is downward compatible with 100Base-TX and 10Base-T.
Combo port consists of one 1000Base-X SFP port and one 10/100/1000Base-T Ethernet port. That is, only one
port of them is available at a particular time.
1.1 RG-NBS5200-24GT4XS
Technical Specifications
Model RG-NBS5200-24GT4XS
CPU Built-in CPU, single-core processor, 800MHz
BOOTROM N/A
Flash Memory 256 MB
SDRAM DDRIII 512MB
See Appendix B.
The copper cable is not supported.
Optical Module
10GBase-R
SFP+ Port
1000Base-X

Rated voltage range: 100V to 240V
Power Supply
Maximum voltage range: 90V to 264V
Frequency: 50/60 Hz
Rated current: 1.5A
≤3.5mA
Input Leakage
1000Base-X SFP
Port
N/A
24
N/A
The supported module type may change at any time. Consult Ruijie Networks for the latest
information.
AC input
10G SFP+ Port Console Port
4 N/A
4 N/A
4 N/A
Product Overview
Power
Supply
Single
Single
Single
4
