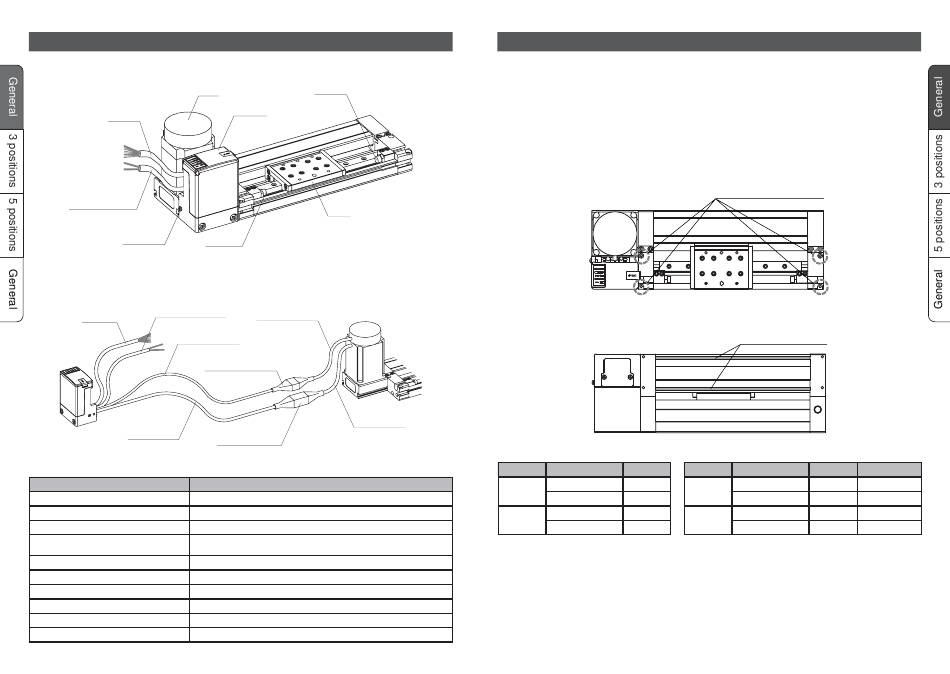

Names and Functions of Individual Parts

Controller integrated type
Motor
I/O cable
Power supply cable
FG terminal
Controller separated type
Power supply cable
I/O cable
Encoder cable of
the controller
Motor cable of
the controller
Description
Slider The parts which can move in the actuator
Motor The motor to move the actuator
Power supply cable The power supply line to drive the actuator
The signal line to transmit signal of positioning
I/O cable
completion and command for drive
Controller The unit to control, set and indicate the actuator
FG terminal The terminal to connect FG cable
Encoder cable of the actuator Encoder cable connecting the actuator and the controller
Motor cable of the actuator Motor cable connecting the actuator and the controller
Encoder cable of the controller Encoder cable to separate the controller
Motor cable of the controller Motor cable to separate the controller
6
End side
Controller
Slider
Motor side
Encoder cable of
the actuator
Encoder connecting
connector
Motor cable of
the actuator
Motor connecting
connector
Content/Function

Installation

Read "Precautions for Handling" of safety Instruction and "How to install" of this chapter with care
to provide safe and exact measurement for installation of the actuator.
Installation of body
Use 4 mounting holes on the top of the body or nuts inside 2 T slots on the bottom of the body for
installation.
Front view
Bottom view
Mounting holes on the top
Model Nominal of actuator Thread size
16 M3
E-MY2C
E-MY2H
25 M5
16 M5
E-MY2HT
25 M8
Mounting holes on the top
T slots on the bottom
T slots on the bottom
Model Nominal of actuator Thread size Effective length
16 M3
E-MY2C
E-MY2H
25 M5
16 M4
E-MY2HT
25 M6
•If T slots on the bottom is used for installation,
select screw which enables only effective
length of it to enter from the bottom.
4 to 5mm
6 to 8mm
6 to 7mm
8 to 10mm
