8-4 Bosch Rexroth AG | Electric Drives and Controls
Maintenance and Installation
1. Remove approx. 30 mm (1.181") off the outer cable sheath and ap-
prox. 5 mm (0.197") off the wires.

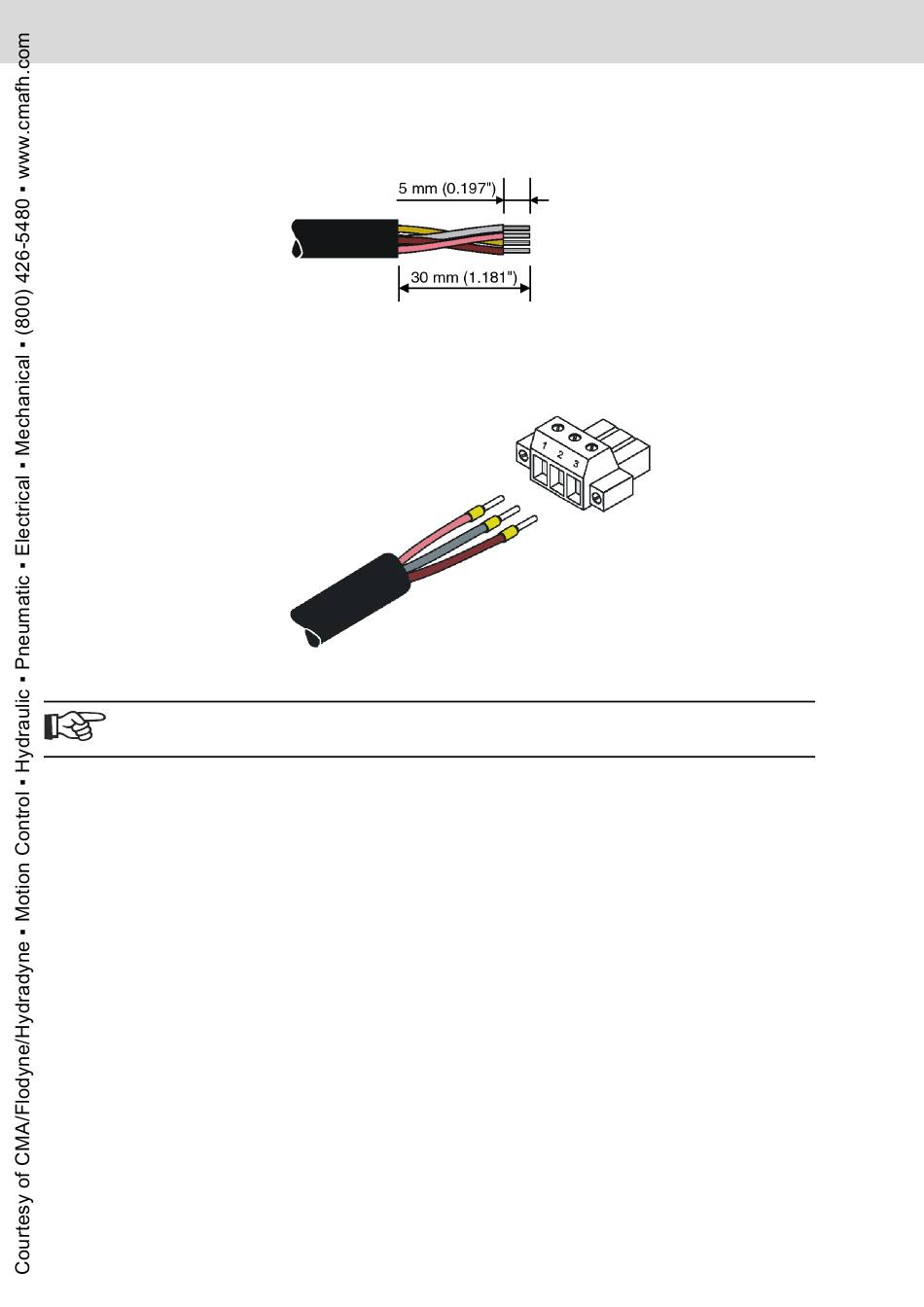

Fig. 8-3: Preparing the cable

2. Fit the wires with wire end ferrules and connect the wires to the con-
nector.

Fig. 8-4: Connecting the female connector strip

If shielded connecting cables are used in the supply voltage area, the
shield should be connected to pin 1.
Rexroth IndraControl VCP 02 | R911310375 / 02
