R911310375 / 02 | Rexroth IndraControl VCP 02
Dimensions
5.1.2

Mounting Cutout

Electric Drives and Controls | Bosch Rexroth AG

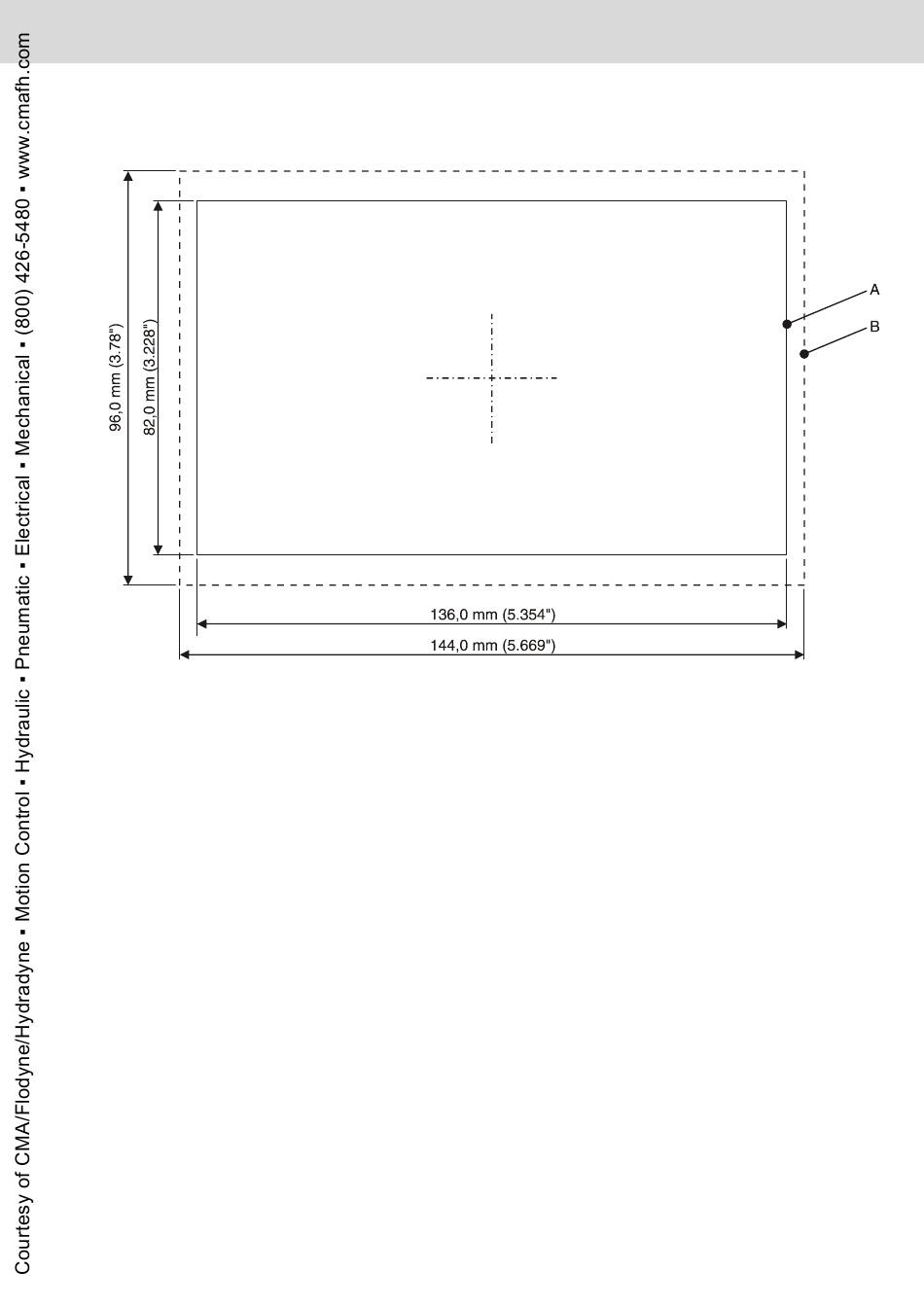

Fig. 5-3: Mounting cutout

A Mounting Cutout
B Front Panel
5-3
