7-12 Bosch Rexroth AG | Electric Drives and Controls
Interfaces
7.3.2

PROFIBUS DP Slave (X6)

The interface for PROFIBUS DP connections is available to integrate
the device into a PROFIBUS DP structure.

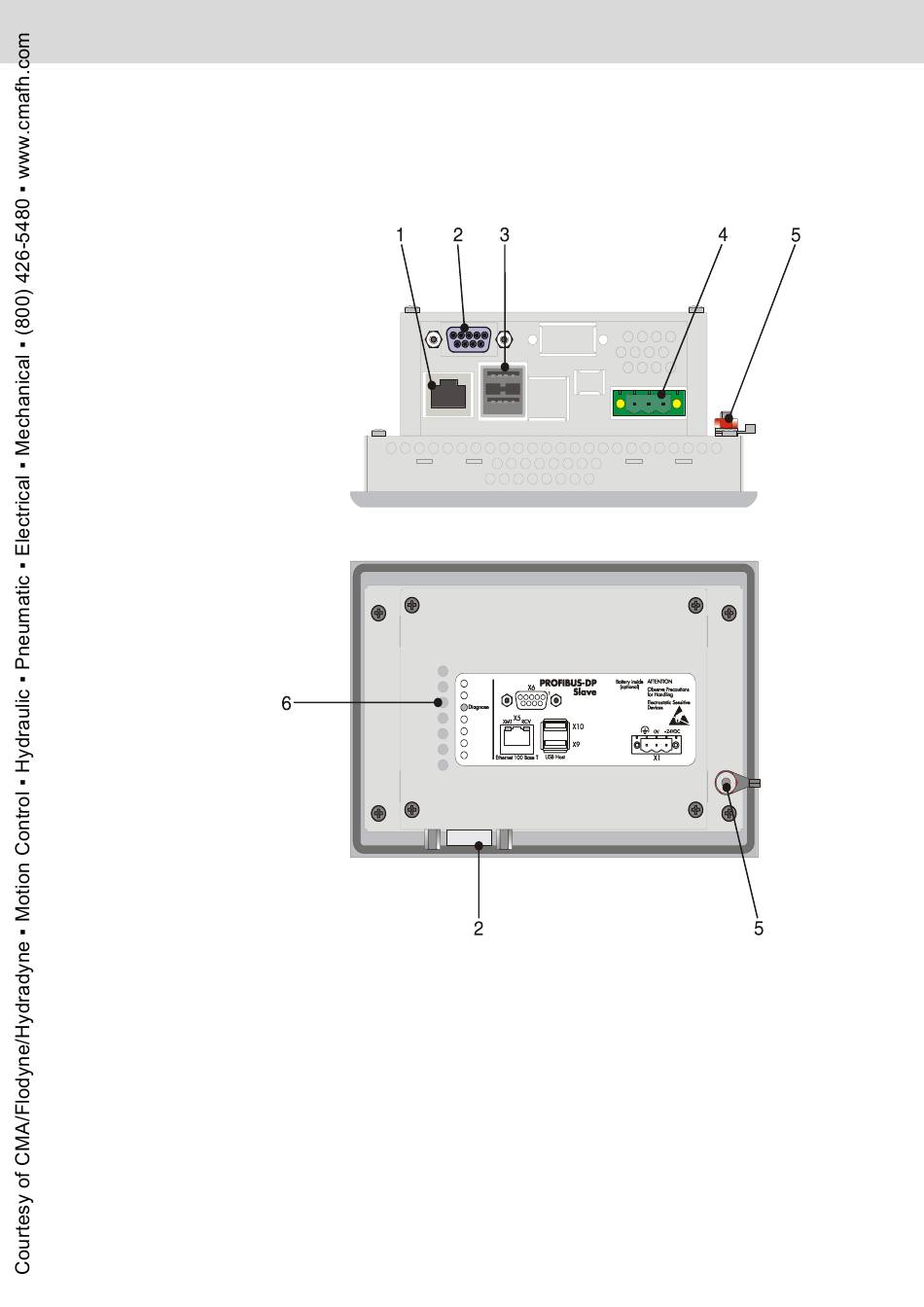

Fig. 7-21: Rear view PROFIBUS DP

1. Female Connector X5 (Ethernet)
2. Female Connector X6 (PROFIBUS)
3. Female Connectors X9, X10 (USB Host - Type A)
4. Connector X1 (Supply Voltage)
5. Threaded Bolt for Protective Grounding
6. Diagnostics LED (PROFIBUS-DP)
Rexroth IndraControl VCP 02 | R911310375 / 02
