Introducing the System

1 Introducing the System
1.1

Brief Description of the VCP 02

1.2

Operating System

1.3

Commissioning

Electric Drives and Controls | Bosch Rexroth AG
The small operator terminal is a machine operating terminal which can
initiate functions in the machine as defined in the application.
Its compact design and seal running around the rear of the device
make it particularly suitable for a large variety of applications. Further-
more, every mounting position is possible.
Depending on the variant, the small operator terminal is equipped
either with two serial interfaces or with a fieldbus interface.
The front panel with a membrane keypad is made up of a 5 mm thick
aluminum plate with chamfered edges which are provided with a chem-
ically resistant polyester foil with embossing.

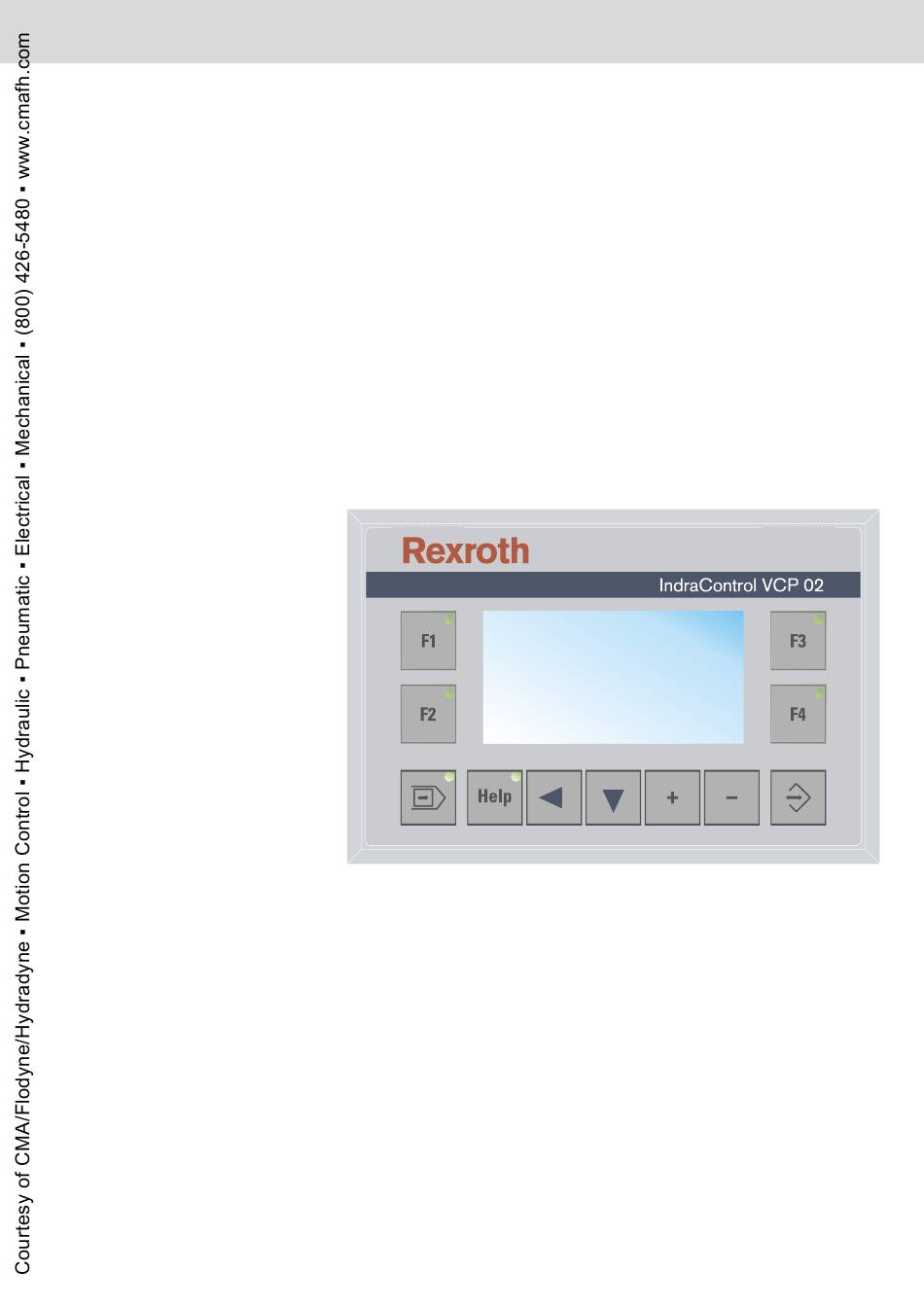

Fig. 1-1: VCP 02 with keypad

The Windows CE operating system is installed on the small operator
terminal.
Mount the device properly (for more information, see chapter Dimen-
sions). Then connect the device to the voltage supply and to the control
unit or the field bus system, if required.
