R911310375 / 02 | Rexroth IndraControl VCP 02

Interfaces

7.3

Field Bus Interfaces

7.3.1

Electric Drives and Controls | Bosch Rexroth AG

The device can be integrated into the DeviceNet bus using the inter-

faces available for DeviceNet connections.

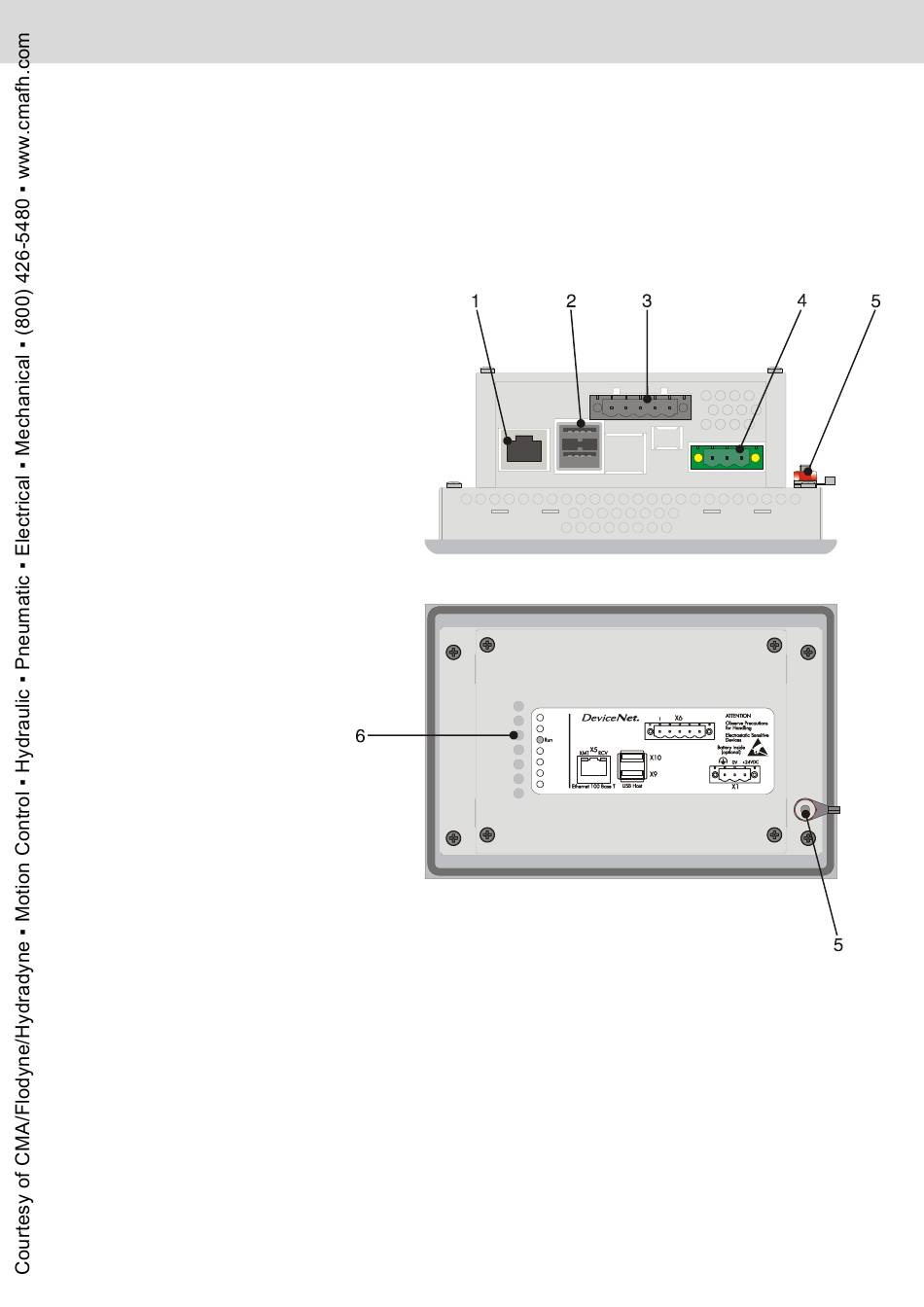

1. Female Connector X5 (Ethernet)

2. Female Connectors X9, X10 (USB Host - Type A)

3. Female Connector X6 (DeviceNet)

4. Connector X1 (Supply Voltage)

5. Threaded Bolt for Protective Grounding

6. Diagnostics LED (DeviceNet)

7-9
