R911310375 / 02 | Rexroth IndraControl VCP 02

Dimensions

5 Dimensions
5.1

Installation

Electric Drives and Controls | Bosch Rexroth AG
When installing the operating device, keep a minimum clearance of
30 mm (1.181") around the operating device to ensure adequate air cir-
culation.
When the operating device is installed horizontally, please note that ad-
ditional sources of heat beneath the operating device may result in heat
accumulation.
Make sure to allow sufficient heat dissipation!
Comply with the allowable temperature range listed in the technical data
for the use of the operating device!
To maintain the specified degree of protection, make sure the seal is
evenly seated on the installation surface and the grub screws of the
mounting brackets are tightened uniformly.
The operating device can be easily and quickly mounted from the rear
of the operating device. This is particularly recommended for mounting
in switchboards with a plate thickness of approx. 1 mm to 6 mm (0.039"
to 0.236").
1. Insert the operating device from the front through the mounting cut-
out.

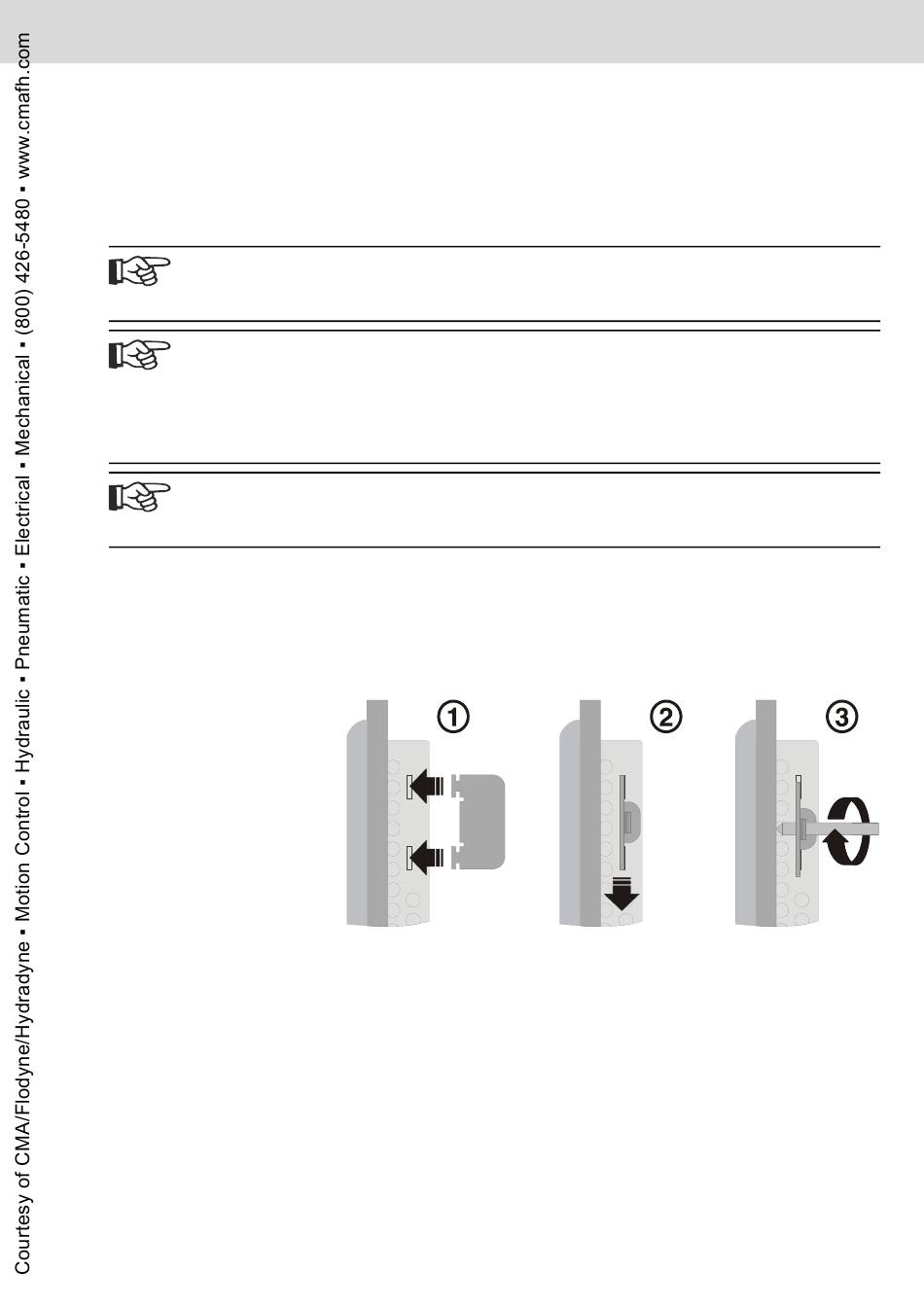

Fig. 5-1: Mounting with mounting brackets

2. Put the assembly brackets into the placket provided for it (point 1)
and snap the brackets down into place (point 2).
3. Fasten the operating device with the grub screws (point 3).
5-1
