alarm. The SMU monitors and regulates the temperature control unit based on the temperature
measured by the temperature sensor to ensure the normal operating temperature for the
cabinet.

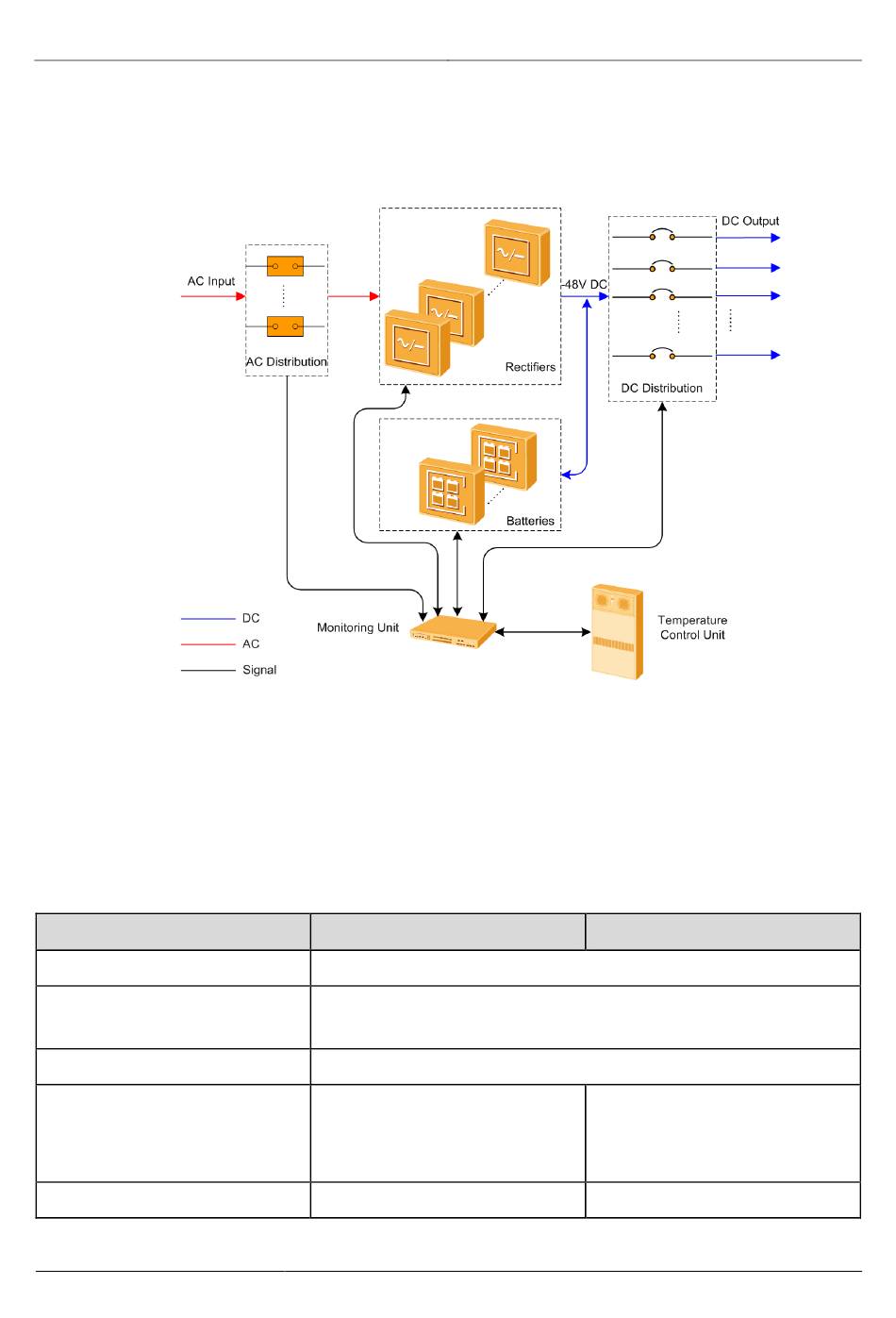

Figure 2-3 Conceptual diagram

2.5 Configurations

Table 2-1 describes the system configurations for the TP48200A-HT19C3 and
TP48200A-HT19C4.
Table 2-1 Configurations
Item
Application environment
Temperature control unit (TCU)
Space for customer equipment
AC input system
AC input circuit breaker
Issue 03 (2019-11-15)
TP48200A-HT19C3
Class C

Equipment compartment: HXC150S heat exchanger

Battery compartment: TEC
16U
220/380 V AC three-phase,
four-wire input system, compatible
with 220 V AC single-phase input
system
One 3-pole 63 A circuit breaker
Copyright © Huawei Technologies Co., Ltd.
TP48200A-HT19C4
110 V AC dual-live wire
One 2-pole 100 A circuit breaker
