TP48200A-HT19C3 and TP48200A-HT19C4 Telecom

Power

User Manual

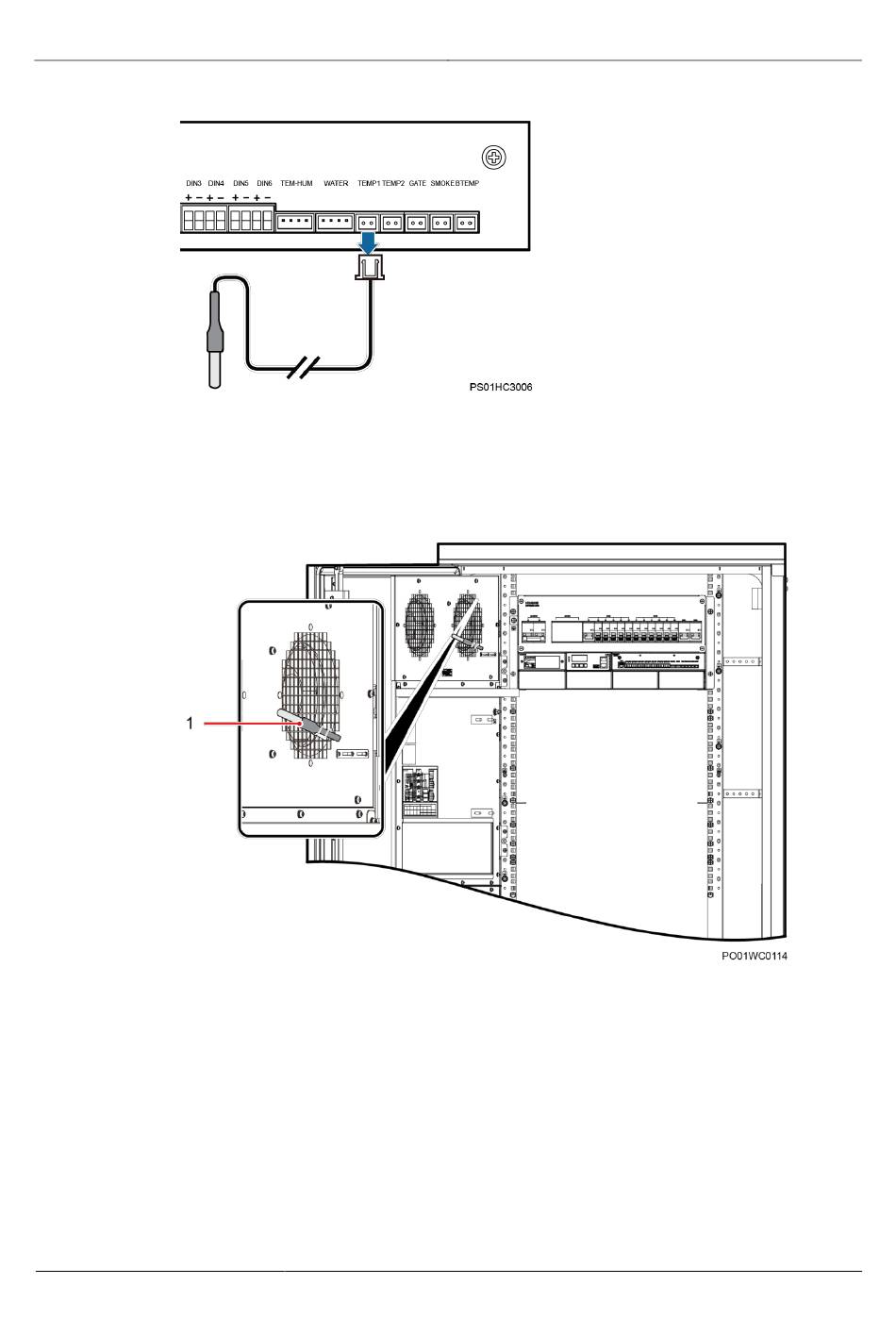

Figure 4-26 Removing the temperature sensor cable

Step 3 Cut off the cable tie of the sensor in the equipment compartment and remove it.

Figure 4-27 Position of the temperature sensor in the equipment compartment

(1) Temperature sensor for the equipment compartment

Step 4 Properly place the new temperature sensor in the equipment compartment and bind it securely

with a cable tie.

Step 5 Reconnect the temperature sensor cable to the UIM.

Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and

ESD gloves.

----End

Issue 03 (2019-11-15)

4 Maintenance
