TP48200A-HT19C3 and TP48200A-HT19C4 Telecom
Power
User Manual

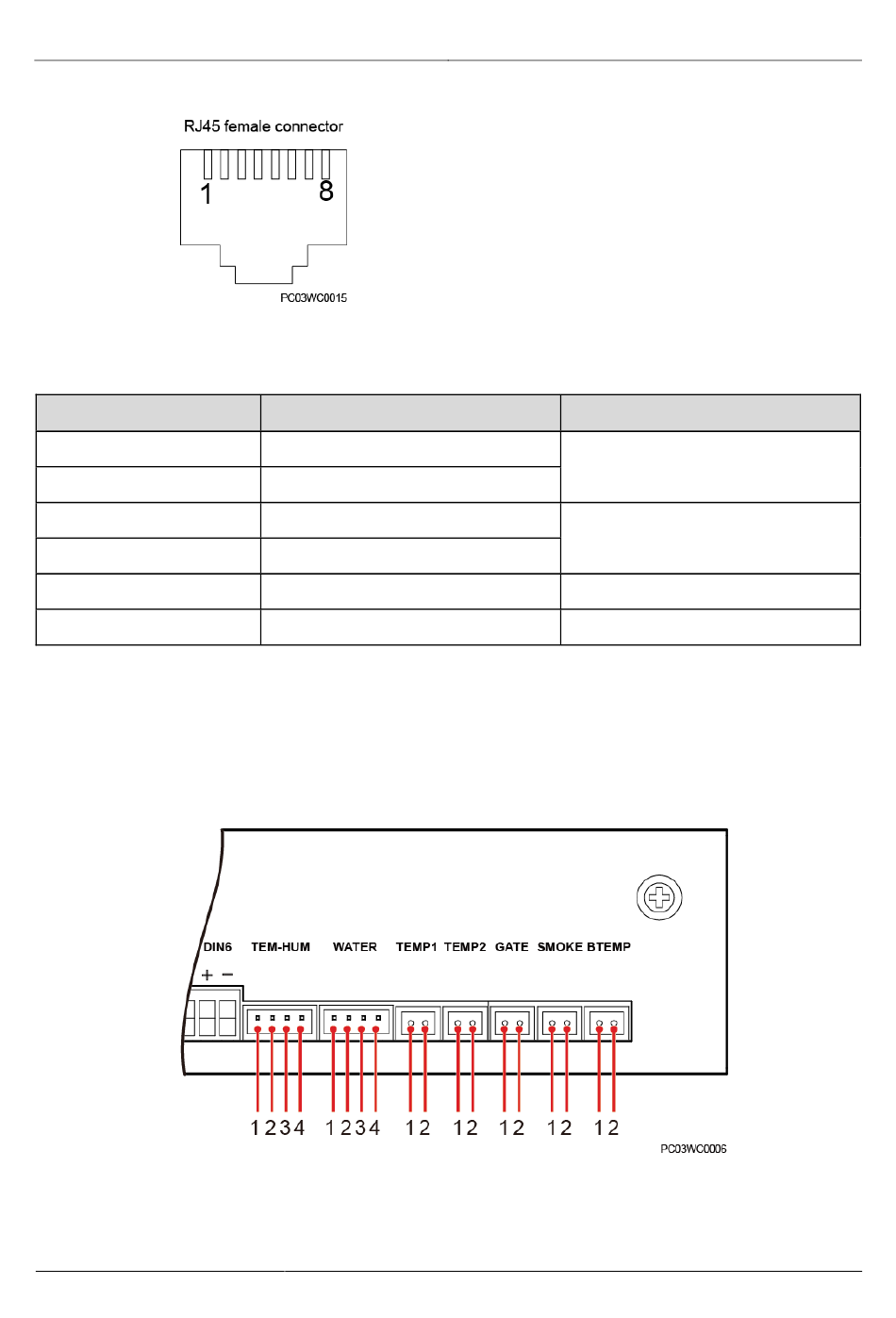

Figure 3-10 Pins in the COM port
Table 3-9 Pin definitions for the COM port
Pin
1
2
4
5
6
3, 7, 8
Pins
Figure 3-11 shows the pin numbers of the sensor ports. Table 3-10 defines the pins.
Figure 3-11 UIM02C pin numbers
Issue 03 (2019-11-15)
Signal
RX+
RX-
TX+
TX-
PGND
None
Copyright © Huawei Technologies Co., Ltd.
Description
Receives data over RS485.
Sends data over RS485.
Connects to the ground.
N/A
3 Components
30
