Planning Installation - EcoWater ETF2100PF10 Owner's Manual

ECOWATER
S Y S T E M
OUTSIDE
FAUCETS
UNFILTERED
WATER
INLET
INLET - - OUTLET PLUMBING OPTIONS
1. ALWAYS INSTALL either an EcoWater bypass
valve, #7214383, or a 3 valve bypass system.
2. Use 1" ... or, 3/4"(minimum) pipe and fittings.
3. Use sweat copper... or, threaded pipe*... or, PVC
plastic pipe.*
*Sweat soldering is required to adapt to the fittings
(1"male) supplied with the filter, or obtain approved
compression adaptors. The following special fittings
are available from EcoWater. Be sure to comply
6
S

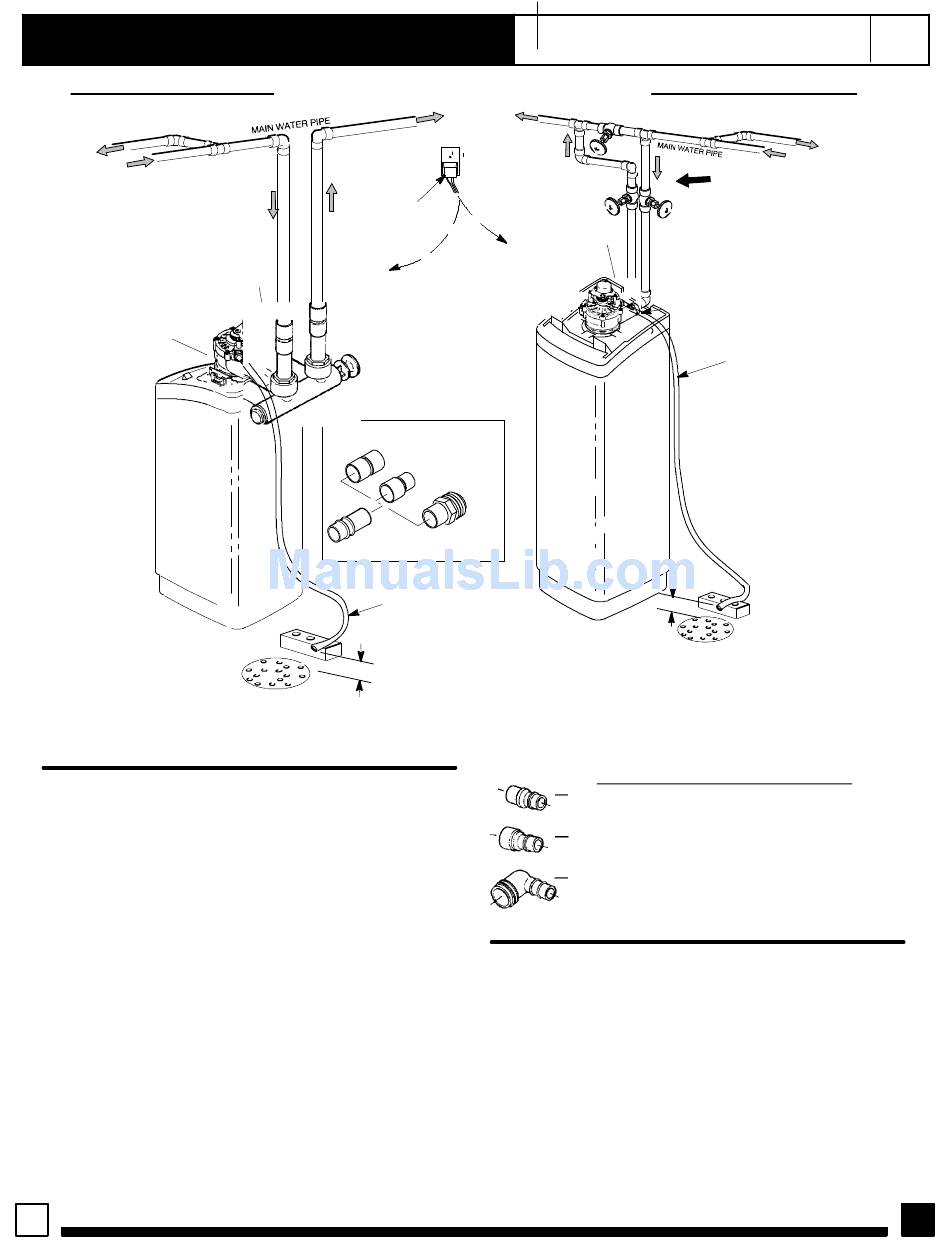

FIGURE 2 - - TYPICAL INSTALLATION DRAWINGS
transformer
(supplied)
to timer
OUTLET
INLET - - OUTLET OPTIONS
1"x 1"sweat
1"x 3/4"sweat
1"copper tube
(2 supplied)
valve drain hose
floor drain
1- -1/2"
airgap
FILTERED
WATER
120V, 60Hz
outlet
outlet valve
OUTLET
to timer
1"sweat x 1"
or 3/4"pipe
thread
Tie or wire valve drain hose in place,
to keep over floor drain.
with all local plumbing codes.
#7104546 PVC Nipple --- Use in place of
included copper inlet and outlet tubes.
#7129211 Adaptor Fitting, 1– 1/2"(2) --- Use in
place of included copper inlet and outlet tubes.
#7120259 Elbow --- Extends inlet and/or outlet in
any 90° direction.
4. A drain is needed for regeneration discharge wa-
ter. A floor drain, close to the filter is preferred. A
laundry tub, standpipe, etc., are other options.
CAUTION: DRAIN WATER EXITS THE HOSE AT
A FAST FLOW RATE, AND AT WATER SYSTEM
PRESSURE. BE SURE THE HOSE IS FASTENED
IN SOME MANNER TO PREVENT " WHIPPING" ,
AND SPLASHING TO PREVENT WATER DAMAGE
TO SURROUNDING AREA.
5. A 120v--60Hz, grounded electrical outlet (contin-
uously " live"is need within 10'of the filter.

Planning Installation

bypass valve
3- - valve
bypass system
inlet valve
INLET
valve drain hose
1- -1/2"
airgap
floor drain
NOTE: Faceplate and support
not shown for clarity of drawing.
OPTIONAL INLET/OUTLET FITTINGS
OTHER REQUIREMENTS
OUTSIDE
FAUCETS
UNFILTERED
WATER
3
