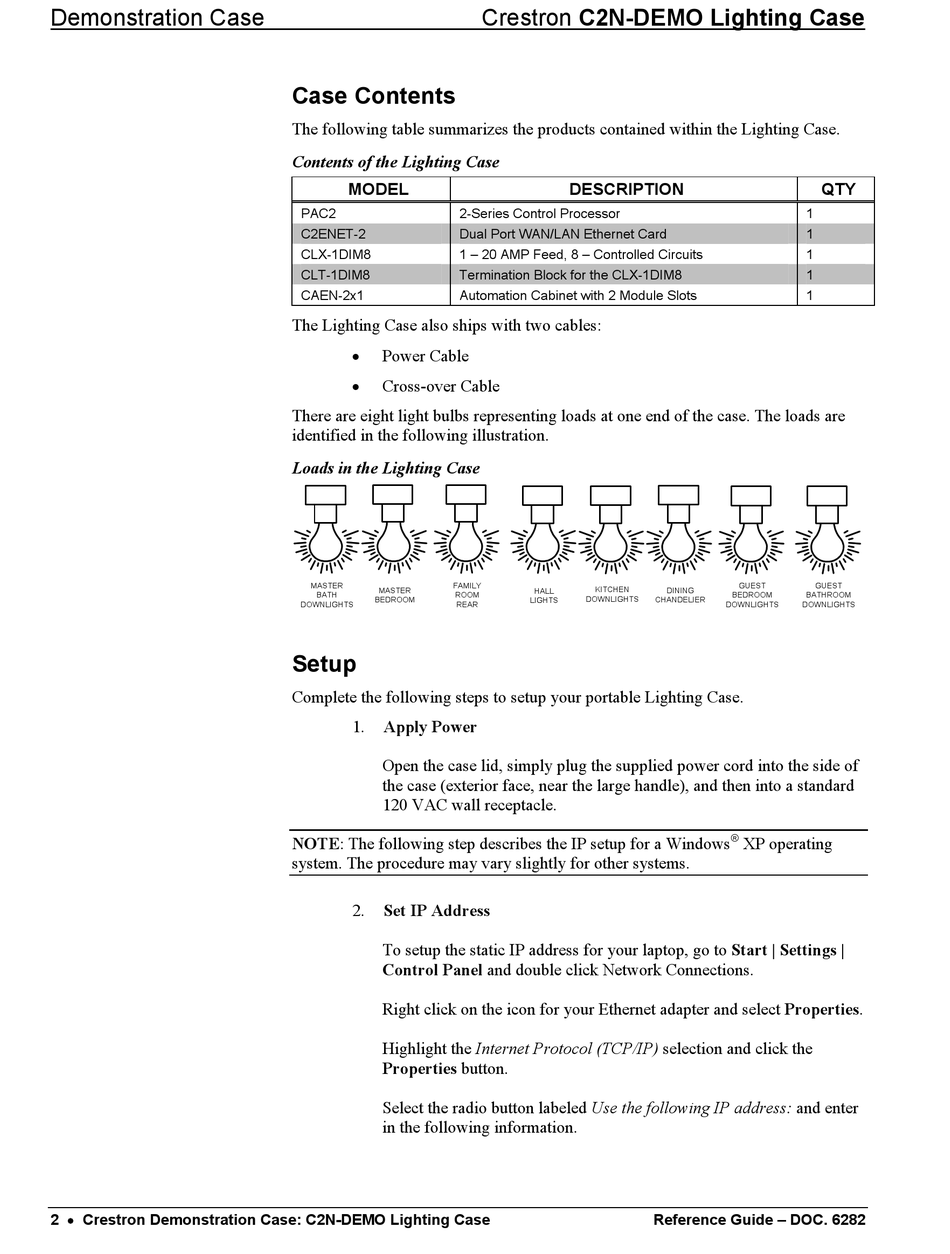

Case Contents; Setup - Crestron C2N-DEMO-LIGHTING Reference Manual

Demonstration Case
2 • Crestron Demonstration Case: C2N-DEMO Lighting Case

Case Contents

The following table summarizes the products contained within the Lighting Case.
Contents of the Lighting Case
MODEL
PAC2 2-Series Control Processor
C2ENET-2 Dual Port WAN/LAN Ethernet Card
CLX-1DIM8 1 – 20 AMP Feed, 8 – Controlled Circuits
CLT-1DIM8 Termination Block for the CLX-1DIM8
CAEN-2x1 Automation Cabinet with 2 Module Slots
The Lighting Case also ships with two cables:
•
Power Cable
•
Cross-over Cable
There are eight light bulbs representing loads at one end of the case. The loads are
identified in the following illustration.
Loads in the Lighting Case
MASTER FAMILY
MASTER
BATH ROOM
BEDROOM
DOWNLIGHTS REAR

Setup

Complete the following steps to setup your portable Lighting Case.
1. Apply Power
Open the case lid, simply plug the supplied power cord into the side of
the case (exterior face, near the large handle), and then into a standard
120 VAC wall receptacle.
NOTE: The following step describes the IP setup for a Windows
system. The procedure may vary slightly for other systems.
2. Set IP Address
To setup the static IP address for your laptop, go to Start | Settings |
Control Panel and double click Network Connections.
Right click on the icon for your Ethernet adapter and select Properties.
Highlight the Internet Protocol (TCP/IP) selection and click the
Properties button.
Select the radio button labeled Use the following IP address: and enter
in the following information.
Crestron C2N-DEMO Lighting Case
DESCRIPTION
KITCHEN
HALL
DOWNLIGHTS
CHANDELIER
LIGHTS
Reference Guide – DOC. 6282
QTY
1
1
1
1
1
GUEST GUEST
DINING
BEDROOM BATHROOM
DOWNLIGHTS DOWNLIGHTS

XP operating
