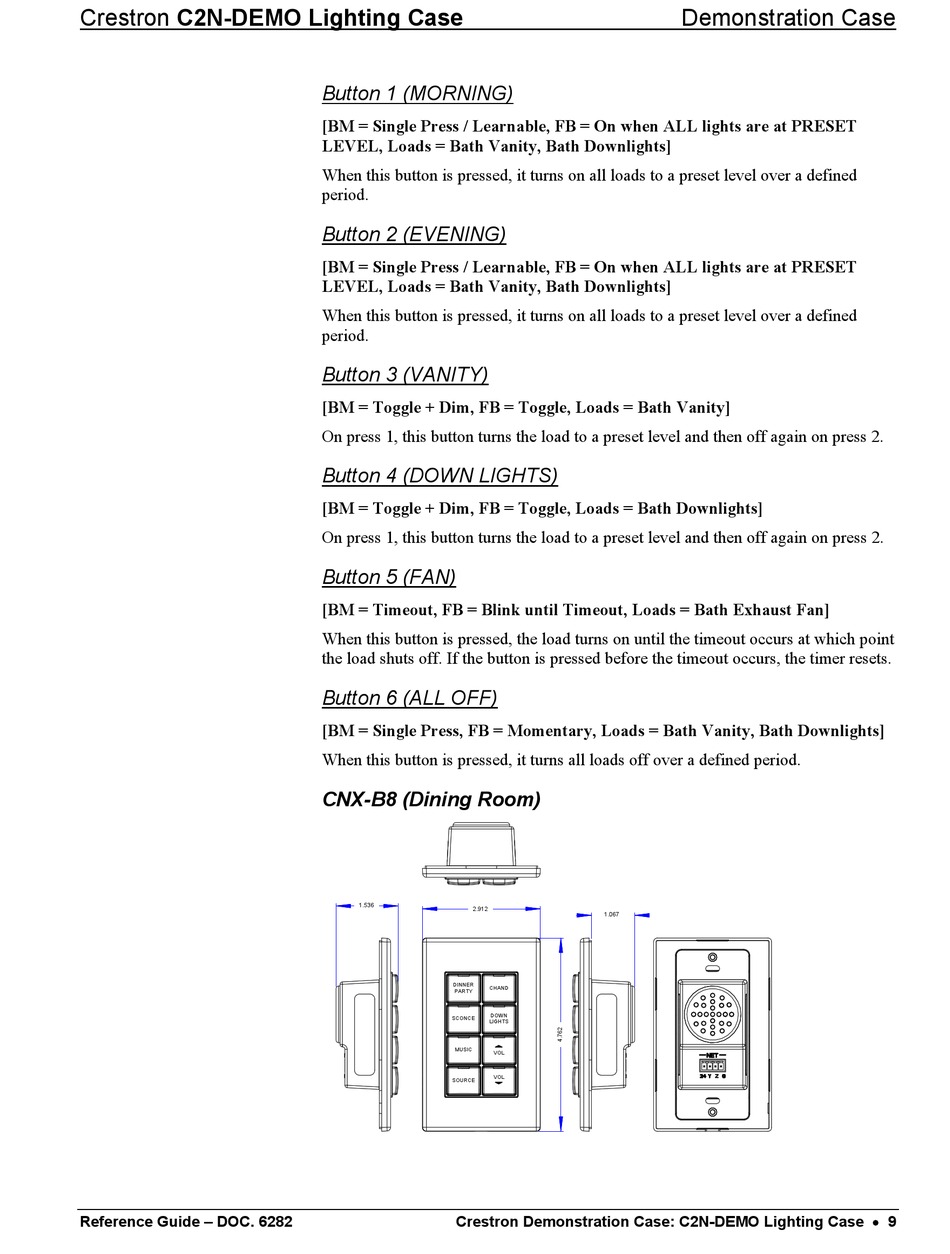

Crestron C2N-DEMO-LIGHTING Reference Manual page 13

Crestron C2N-DEMO Lighting Case
Reference Guide – DOC. 6282
Button 1 (MORNING)
[BM = Single Press / Learnable, FB = On when ALL lights are at PRESET
LEVEL, Loads = Bath Vanity, Bath Downlights]
When this button is pressed, it turns on all loads to a preset level over a defined
period.
Button 2 (EVENING)
[BM = Single Press / Learnable, FB = On when ALL lights are at PRESET
LEVEL, Loads = Bath Vanity, Bath Downlights]
When this button is pressed, it turns on all loads to a preset level over a defined
period.
Button 3 (VANITY)
[BM = Toggle + Dim, FB = Toggle, Loads = Bath Vanity]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 4 (DOWN LIGHTS)
[BM = Toggle + Dim, FB = Toggle, Loads = Bath Downlights]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 5 (FAN)
[BM = Timeout, FB = Blink until Timeout, Loads = Bath Exhaust Fan]
When this button is pressed, the load turns on until the timeout occurs at which point
the load shuts off. If the button is pressed before the timeout occurs, the timer resets.
Button 6 (ALL OFF)
[BM = Single Press, FB = Momentary, Loads = Bath Vanity, Bath Downlights]
When this button is pressed, it turns all loads off over a defined period.
CNX-B8 (Dining Room)
1.536
1.5360"
2.912
2.9119"
DINNER
CHAND
PARTY
DOWN
SCONCE
LIGHTS
MUSIC
VOL
VOL
SOURCE
