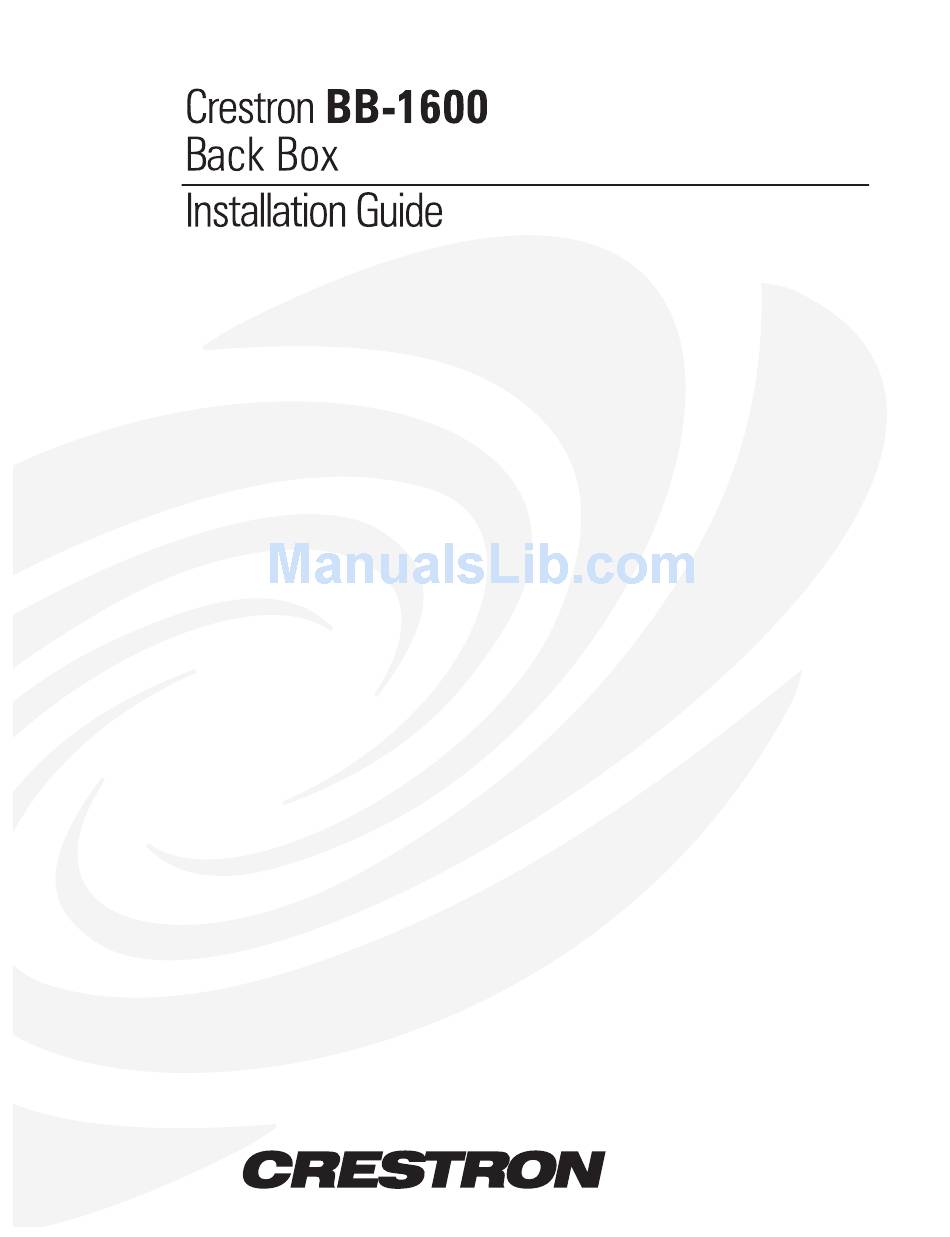

Crestron BB-1600 Installation Manual
Crestron BB-1600 Installation Manual

Crestron BB-1600 Installation Manual

Back box

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BB-1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Crestron BB-1600

  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON...
  • Page 3: Table Of Contents

    Crestron BB-1600 Contents Back Box: BB-1600 Description ... 1 Installation ... 3 Construction Method ... 3 Post-Construction Method ... 5 Further Inquiries... 9 Future Updates... 9 Cutout Detail of Supplied Template... 10 Return and Warranty Policies ... 11 Merchandise Returns / Repair Service... 11 CRESTRON Limited Warranty...
  • Page 5: Crestron Bb

    Crestron BB-1600 Back Box: BB-1600 Description The back box, BB-1600, is the optional mounting hardware that secures a Crestron Series 1600 Lectern/Wall Mount Touchpanel to a wall or other suitable mounting surface. Supplied Components DESCRIPTION Metal Electrical Box with 4 knockouts AY17434-1...
  • Page 6 Back Box BB-1600 Physical Views and Dimensions (Side View) BB-1600 Physical Views and Dimensions (Back View) Back Box: BB-1600 Crestron BB-1600 Installation Guide - DOC. 5835A...
  • Page 7: Installation

    Crestron BB-1600 Installation There are at least two different methods of installing the BB-1600. The construction method is preferred during the construction process. Use this method to wall mount a Crestron Series 1600 Lectern/Wall Mount Touchpanel to a wall stud. At this time the rooms in which the panel is to be installed are framed and the gypsum board has not been hung.
  • Page 8 Supplied Template" on page 10 for an illustrative reference. Drill eight holes marked “A” on template with #20 bit. Only drill through gypsum board. Use caution and do not drill through metal bracket that rests behind gypsum board. Refer to "Cutout Back Box: BB-1600 STUD METAL ELECTRICAL...
  • Page 9: Post-Construction Method

    1/8" from the mounting surface and use fingers to tighten four socket hex head screws. Using a socket screwdriver, tighten each screw an additional 1/8-turn. 15. If touchpanel is available, secure touchpanel to BB-1600 using four pan head screws, supplied with the touchpanel. Post-Construction Method The only tools required are a gypsum board saw (or equivalent), a socket screwdriver (length should not exceed 4.5"), a #2 Phillips tip screwdriver,...
  • Page 10 10. Repeat steps 7 through 9 for the bottom horizontal edge of the opening. 11. Remove necessary knockout(s) from metal electrical box. 12. Pull Cresnet wire through open punch in metal electrical box. Back Box: BB-1600 METAL METAL MOUNTING MOUNTING...
  • Page 11 Refer to the illustration below. NOTE: Do not slide the back box too far into the opening or it may fall in between the gypsum board (e.g., if installation is into an exterior wall).
  • Page 12 Using a socket screwdriver, tighten each screw an additional 1/8-turn. 17. If touchpanel is available, secure touchpanel to BB-1600 using four pan head screws, supplied with the touchpanel. Tighten screws by hand being careful not to crack the gypsum board.
  • Page 13: Further Inquiries

    Crestron BB-1600 Further Inquiries If after reviewing this Operations Guide for the BB-1600, you cannot locate specific information or have questions, please take advantage of Crestron's award winning customer service team by calling: In the US and Canada, call Crestron’s corporate headquarters at 1-888-CRESTRON [1-888-273-7876] or 1-201-767-3400.
  • Page 14: Cutout Detail Of Supplied Template

    Back Box Cutout Detail of Supplied Template Use the alphanumeric codes in the illustration and table to obtain the cutout dimensions for the BB-1600. However, Crestron recommends that the supplied template be used to avoid error. Back Box: BB-1600 BACK BOX CUTOUT...
  • Page 15: Return And Warranty Policies

    CRESTRON shall not be liable to honor warranty terms if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures.
  • Page 16 Crestron Electronics, Inc. Operations Guide – DOC. 5835A 15 Volvo Drive Rockleigh, NJ 07647 12.00 Tel: 888.CRESTRON Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
