Crestron C2N-DEMO Lighting Case
Reference Guide – DOC. 6282

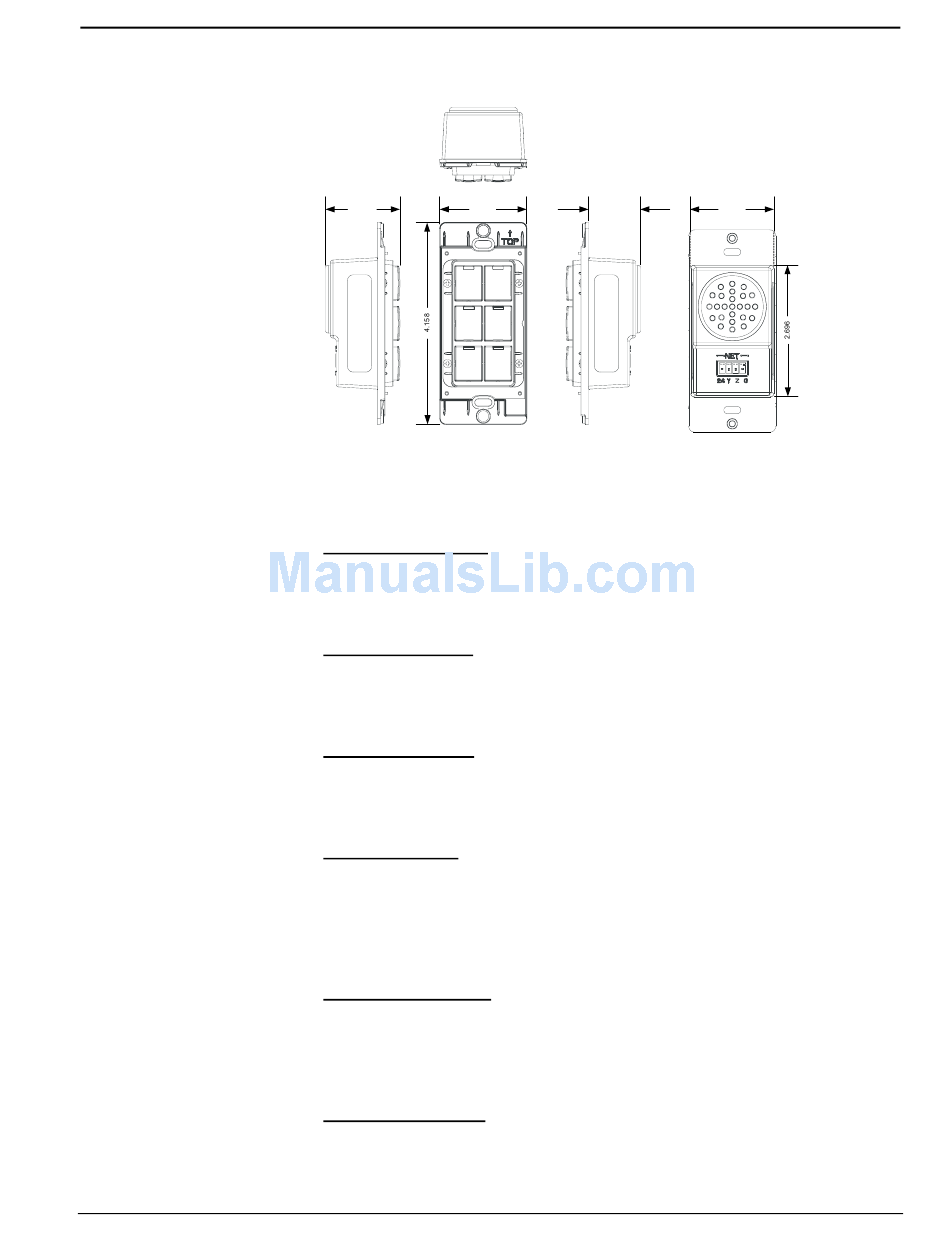

C2N-DB6 (Family Room)
1.532
1.788
FRONT
LAMP
REAR
FAN
FAMILY
PARTY
This interface was programmed as the primary control point for the family room.
The entire virtual house can be monitored from the web page project associated with
this system.
Button 1 (FRONT)
[BM = Toggle + Dim, FB = Toggle, Loads = Front Downlights]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 2 (LAMP)
[BM = Toggle + Dim, FB = Toggle, Loads = Lamp]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 3 (REAR)
[BM = Toggle + Dim, FB = Toggle, Loads = Rear Downlights]
On press 1, this button turns the load to a preset level and then off again on press 2.
Button 4 (FAN)
[BM = Multi-press, FB = Connected to Fan, Loads = Ceiling Fan]
This button turns on the fan and selects various speeds. The first press sets the fan to
speed 4, the second press to speed 3, then to speed 2, speed 1, and finally back to the
off state.
Button 5 (FAMILY)
[BM = Toggle / Learnable, FB = On when ALL lights are at PRESET LEVEL,
Loads = Front Downlights, Rear Downlights, Lamp]
On press 1, this button turns the loads to a preset level and then off again on press 2.
Button 6 (PARTY)
[BM = Single Press, FB = On when ALL lights are at PRESET LEVEL, Loads
= Family Front Downlights, Family Rear Downlights, Family Lamp, Entry
Crestron Demonstration Case: C2N-DEMO Lighting Case • 13
Demonstration Case
1.067
1.696
