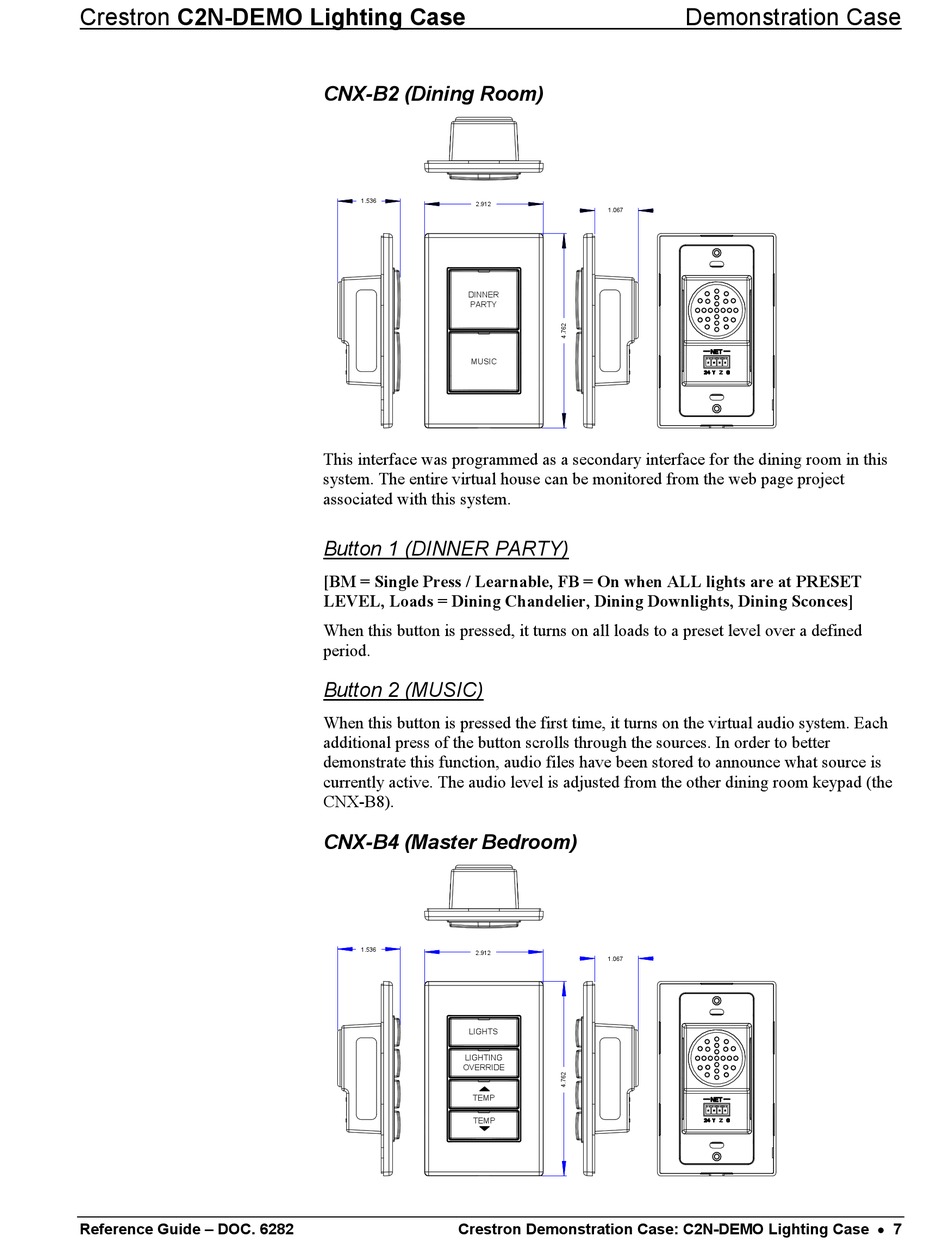

Crestron C2N-DEMO Lighting Case
Reference Guide – DOC. 6282
CNX-B2 (Dining Room)
1.5360"
1.536
2.9119"
2.912
DINNER
PARTY
MUSIC
This interface was programmed as a secondary interface for the dining room in this
system. The entire virtual house can be monitored from the web page project
associated with this system.
Button 1 (DINNER PARTY)
[BM = Single Press / Learnable, FB = On when ALL lights are at PRESET
LEVEL, Loads = Dining Chandelier, Dining Downlights, Dining Sconces]
When this button is pressed, it turns on all loads to a preset level over a defined
period.
Button 2 (MUSIC)
When this button is pressed the first time, it turns on the virtual audio system. Each
additional press of the button scrolls through the sources. In order to better
demonstrate this function, audio files have been stored to announce what source is
currently active. The audio level is adjusted from the other dining room keypad (the
CNX-B8).
CNX-B4 (Master Bedroom)
1.5360"
1.536
2.9119"
2.912
LIGHTS
LIGHTING
OVERRIDE
TEMP
TEMP
Crestron Demonstration Case: C2N-DEMO Lighting Case • 7
