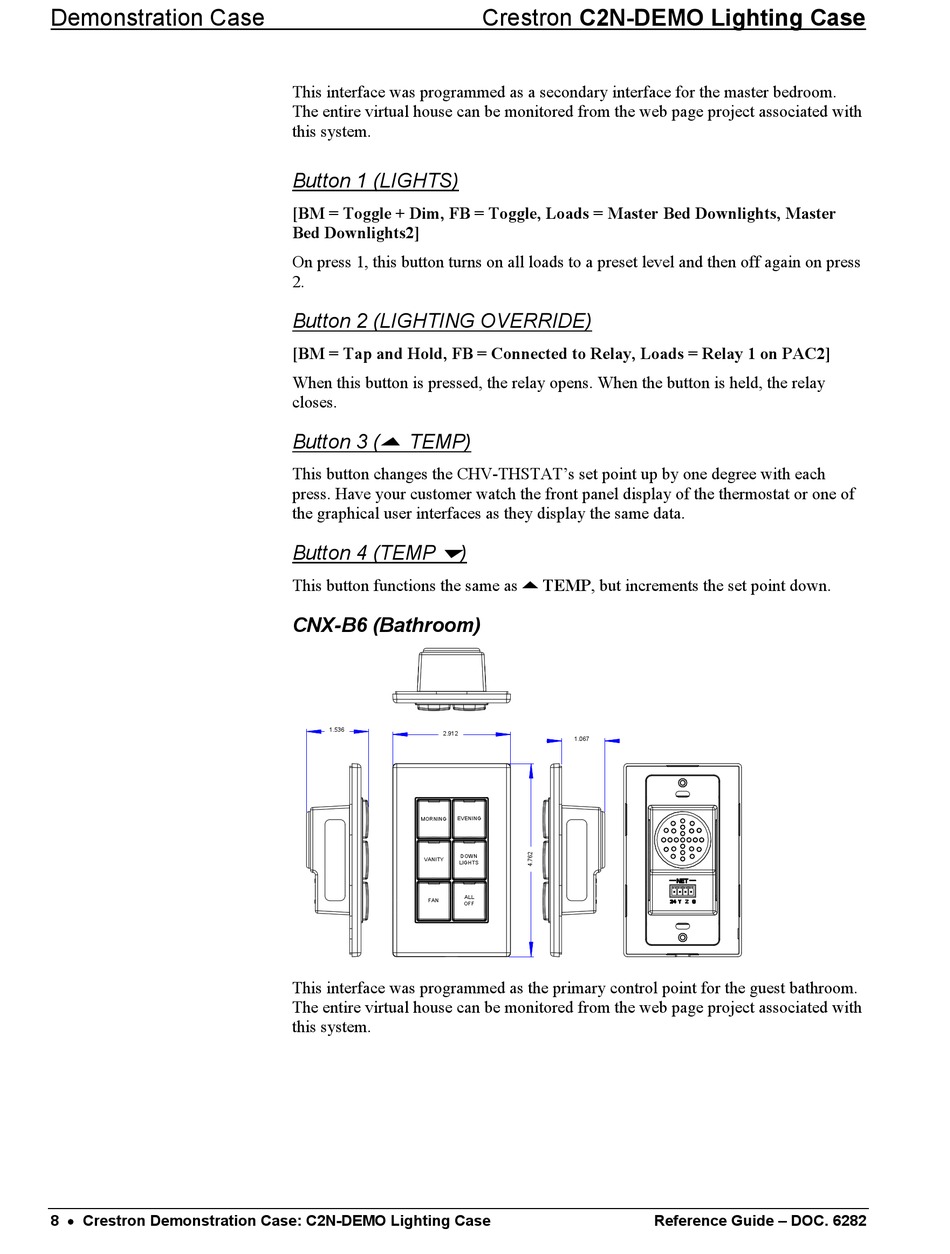

8 • Crestron Demonstration Case: C2N-DEMO Lighting Case
This interface was programmed as a secondary interface for the master bedroom.
The entire virtual house can be monitored from the web page project associated with
this system.
Button 1 (LIGHTS)
[BM = Toggle + Dim, FB = Toggle, Loads = Master Bed Downlights, Master
Bed Downlights2]
On press 1, this button turns on all loads to a preset level and then off again on press
2.
Button 2 (LIGHTING OVERRIDE)
[BM = Tap and Hold, FB = Connected to Relay, Loads = Relay 1 on PAC2]
When this button is pressed, the relay opens. When the button is held, the relay
closes.
Button 3 ( TEMP)
K
This button changes the CHV-THSTAT's set point up by one degree with each
press. Have your customer watch the front panel display of the thermostat or one of
the graphical user interfaces as they display the same data.
Button 4 (TEMP )
J
This button functions the same as K TEMP, but increments the set point down.
CNX-B6 (Bathroom)
1.536
1.5360"
2.912
2.9119"
MORNING EVENING
DOWN
VANITY
LIGHTS
ALL
FAN
OFF
This interface was programmed as the primary control point for the guest bathroom.
The entire virtual house can be monitored from the web page project associated with
this system.
Crestron C2N-DEMO Lighting Case
